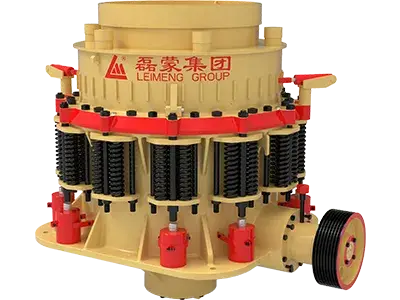

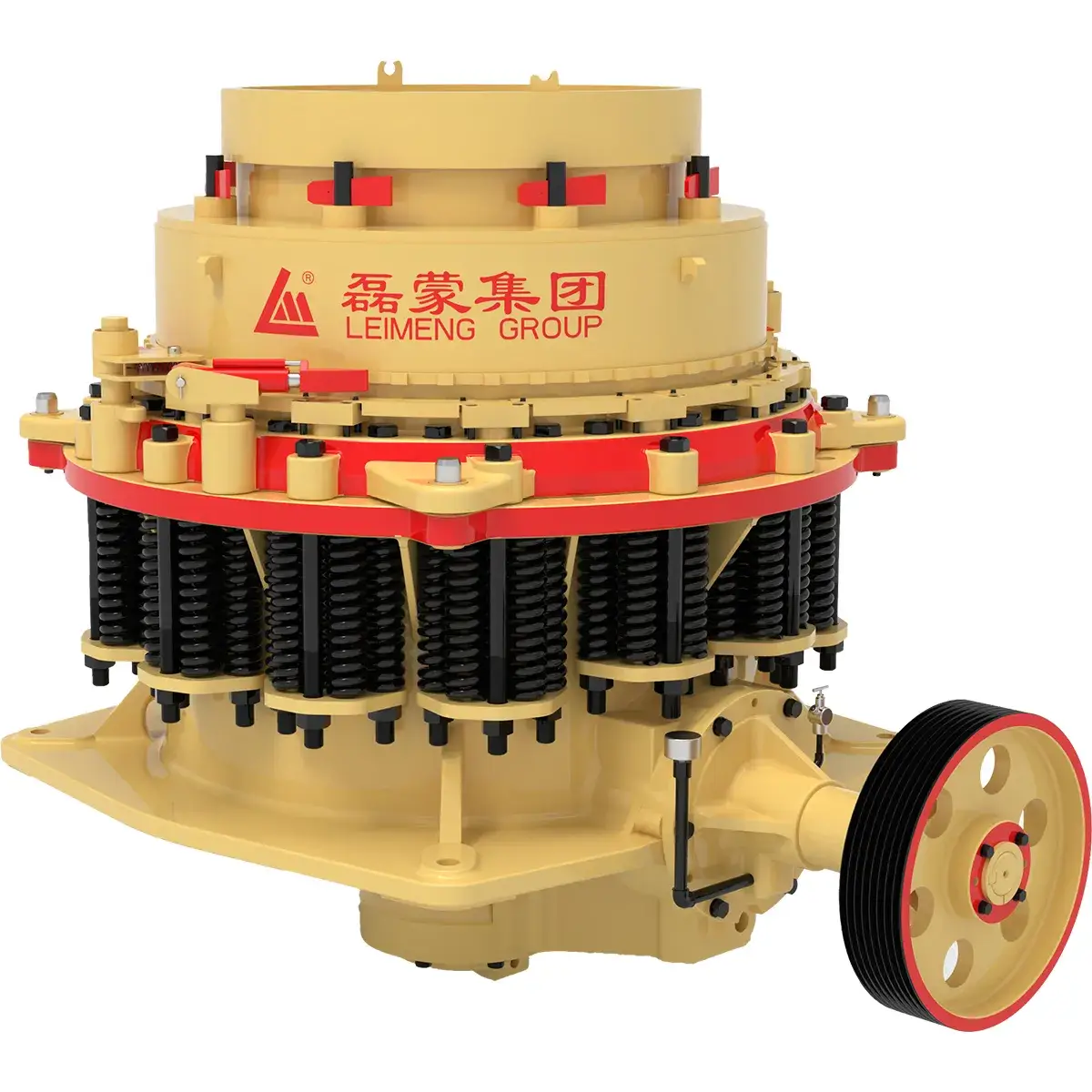

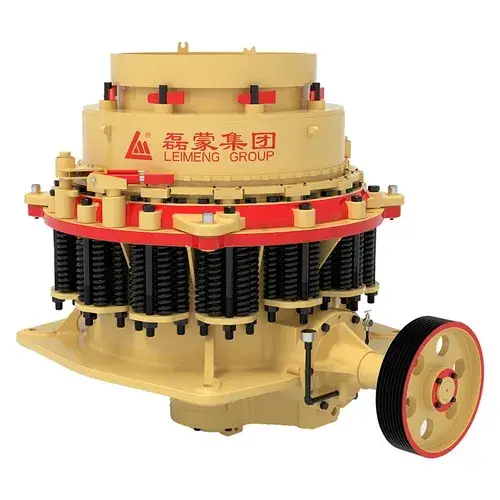

S Series Symons Cone Crusher
(Spring, Secondary Crushing)

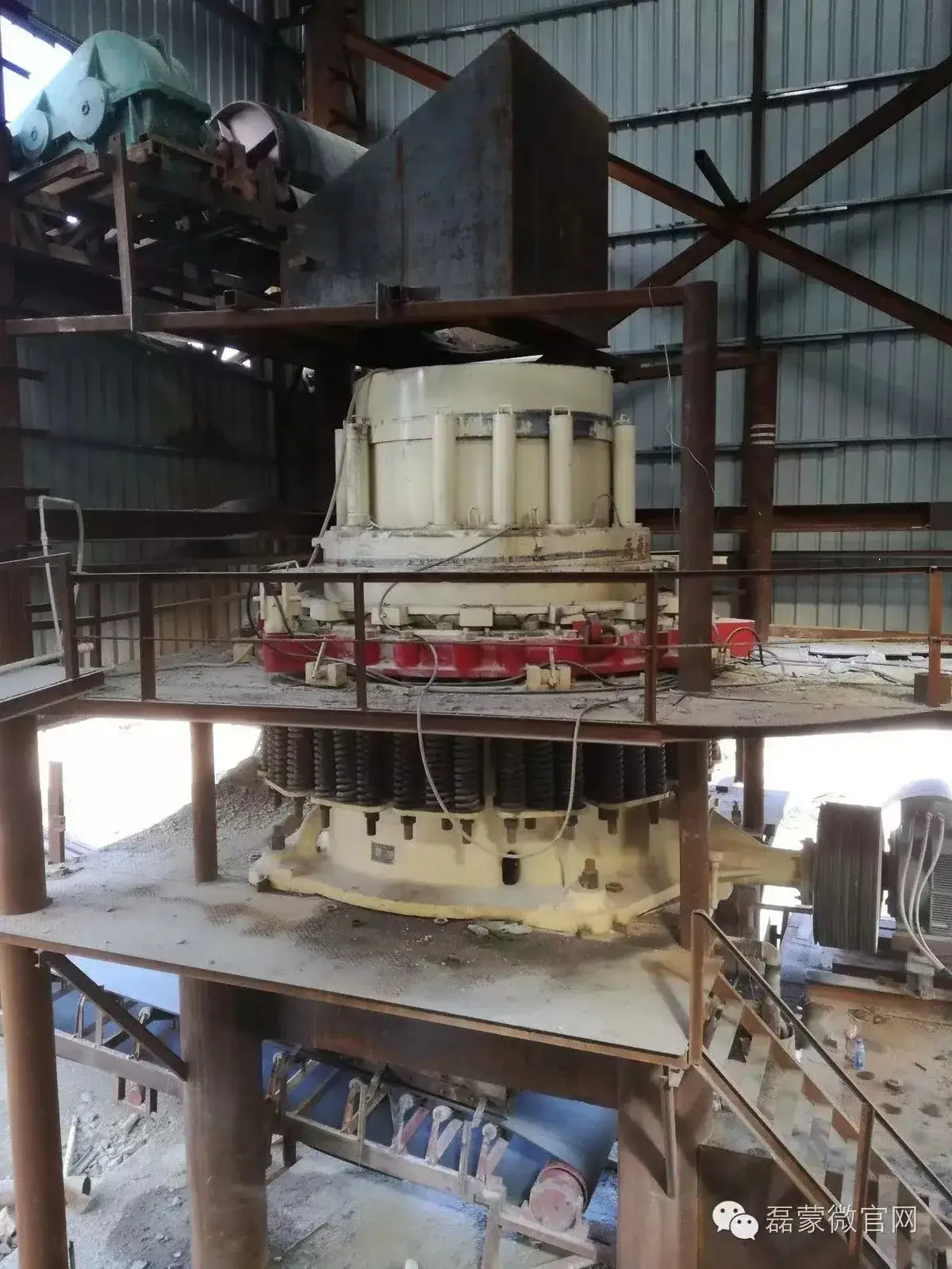

The S series symons cone crusher is one of the most widely used cone crushers at present. Owing to its reliable operation and stable performance, it has been extensively applied in mines and quarries worldwide.
Both the standard type and short-head type S series cone crushers can be fed at full load. Hydraulic systems are used for overload protection, discharge opening adjustment, and crushing chamber clearing, ensuring safe and reliable operation, fast response, convenient handling, and reduced downtime and labor intensity.
- Metal Ores
- Non-Metal Ores
During operation, the rotation of the motor is transmitted through the pulley and drive shaft, causing the crushing cone to perform a gyratory motion under the force of the eccentric sleeve. As a result, the mantle alternately approaches and moves away from the fixed concave mounted on the upper frame, subjecting the material in the crushing chamber to continuous impact and compression until it is crushed. The crushed material is then discharged from the bottom of the crusher.
| Model | |||||

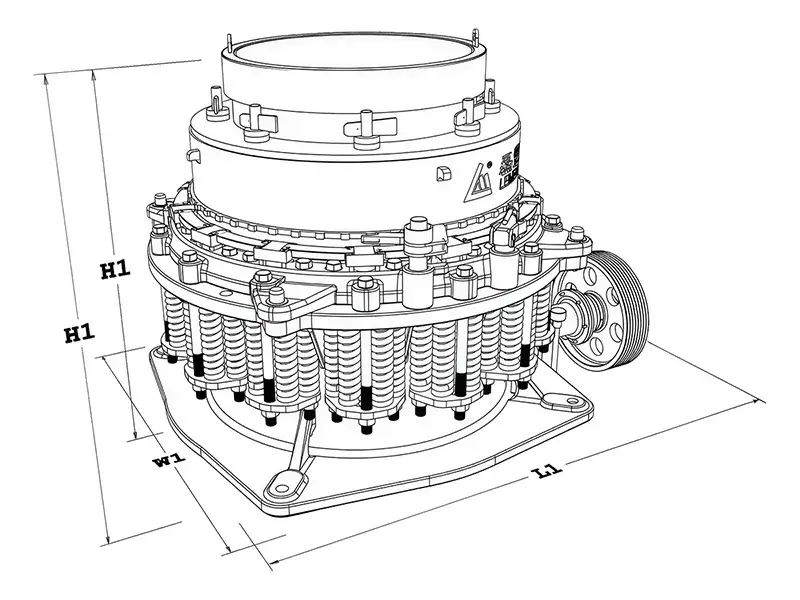

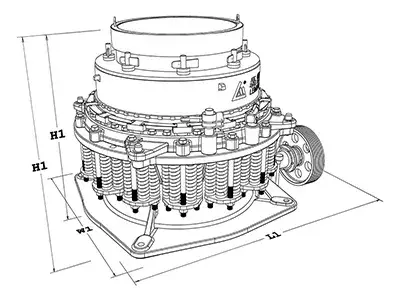

| Length L1 (mm) | 2400 | 2815 | 3000 | 3920 | 5080 |
| Width W1 (mm) | 1800 | 2470 | 2650 | 3055 | 4080 |
| Height H1 (mm) | 1725 | 2160 | 2330 | 2640 | 3300 |
| Height H2 (mm) | 2060 | 2810 | 3030 | 3430 | 4100 |
| Model | |||||
| Max. feeding size (mm) | 150 | 220 | 220 | 270 | 370 |
| Discharging size (mm) | 3-25 | 3-25 | 8-19 | 5-38 | 5-38 |
| Capacity (t/h) | 27-196 | 36-445 | 134-495 | 90-743 | 190-1643 |
| Power (kW) | 75 | 185 | 220 | 240 | 400 |
