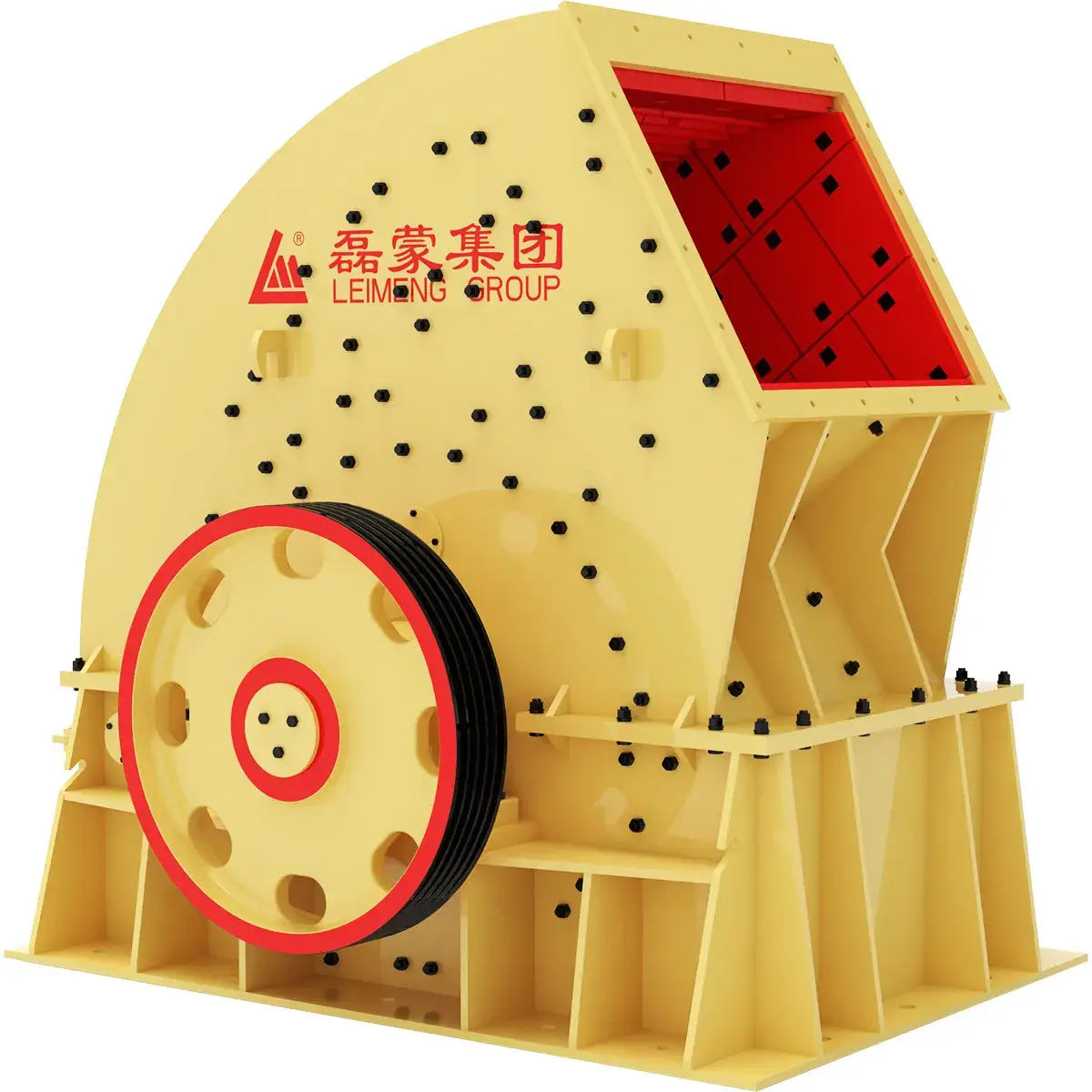

PCZ Series Heavy Hammer Crusher
The heavy hammer crusher is mainly used for crushing materials with a compressive strength not exceeding 200MPa. Large heavy-duty hammer crushers can directly crush materials with a diameter of up to 1000mm into products of around 20mm, delivering powerful crushing capability.
It is suitable for crushing limestone, gypsum, coal, lime, sandstone, shale, and similar materials.

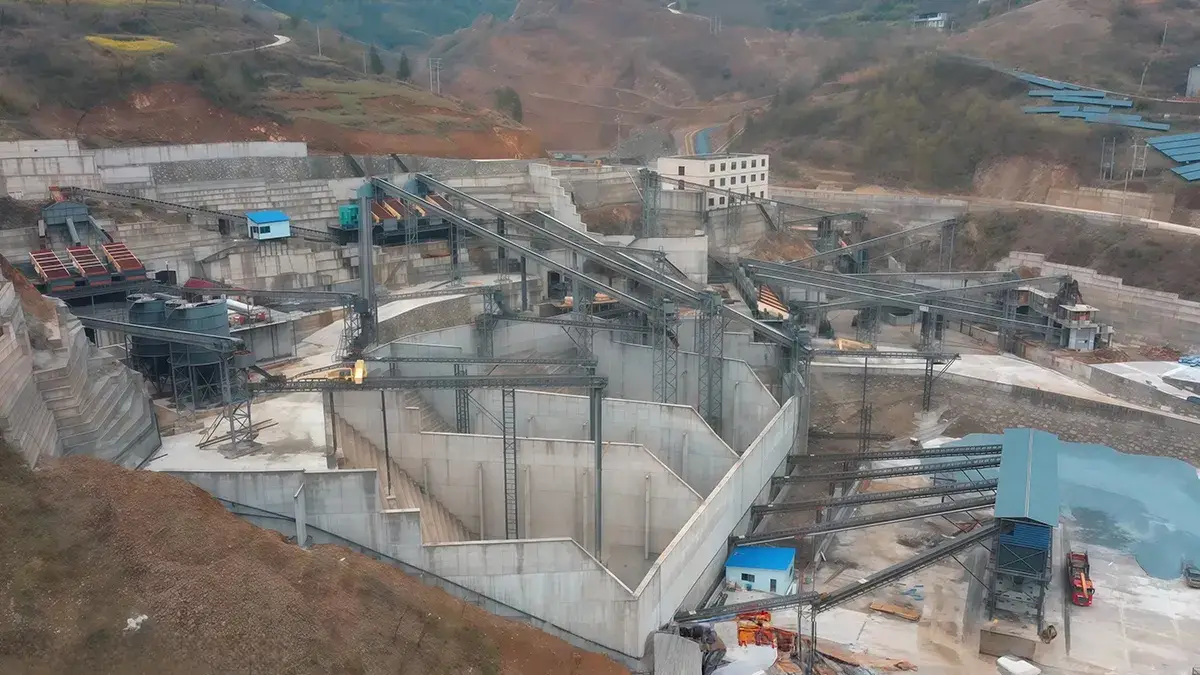

The crusher is used as part of combined crushing and screening systems in industries such as building materials, water conservancy, and chemical processing.
It features a large crushing ratio, uniform product size, high hammer wear resistance, large feed size, simple structure, reliable operation, compact design, convenient maintenance, low energy consumption, and economical operating costs.
- Metal Ores
- Non-Metal Ores

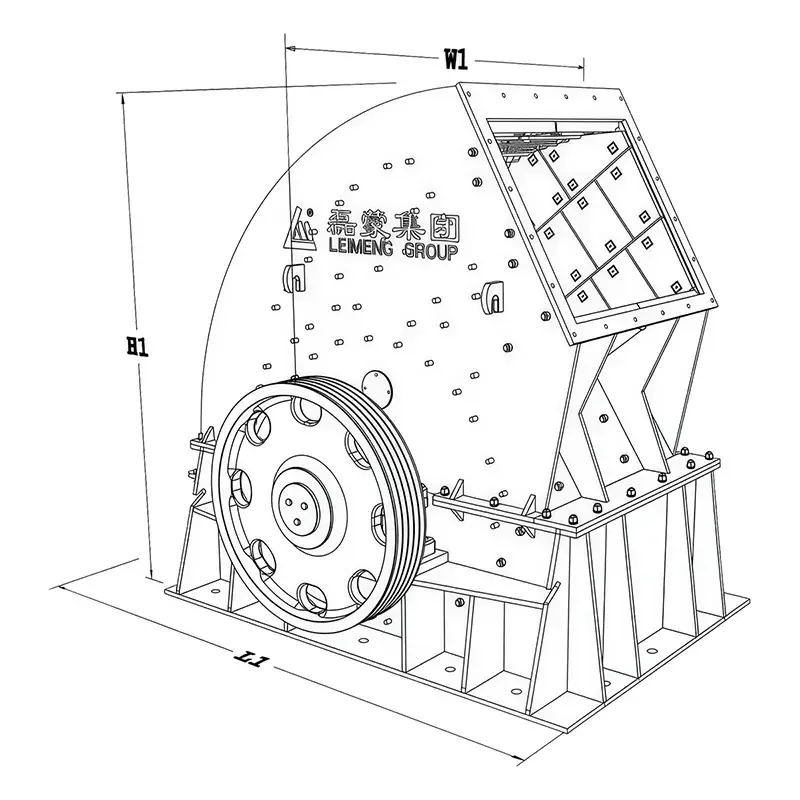

| Model | Length L1 (mm) | Width W1 (mm) | Height H1 (mm) |
| |
2950 | 2250 | 2495 |
| |
3260 | 2624 | 2750 |
| |
3667 | 2937 | 3436 |
| |
3700 | 2980 | 3515 |
| |
3667 | 3200 | 3436 |
| |
3700 | 3270 | 3515 |
| |
3730 | 3340 | 3595 |
| Model | Max. feeding size (mm) | Rotor diameter × width (mm) | Capacity (t/h) |
Power (kW) |
| |
≦650 | 1310×1050 | 150-180 | 160 |
| |
≦750 | 1500×1160 | 250-320 | 160×2 |
| |
≦1000 | 1650×1452 | 420-500 | 220×2 |
| |
≦1100 | 1850×1520 | 520-620 | 250×2 |
| |
≦1200 | 1660×1900 | 800-1000 | 400×2 |
| |
≦1200 | 1800×1964 | 1000-1200 | 450×2 |
| |
≦1200 | 1920×2000 | 1200-1600 | 500×2 |
