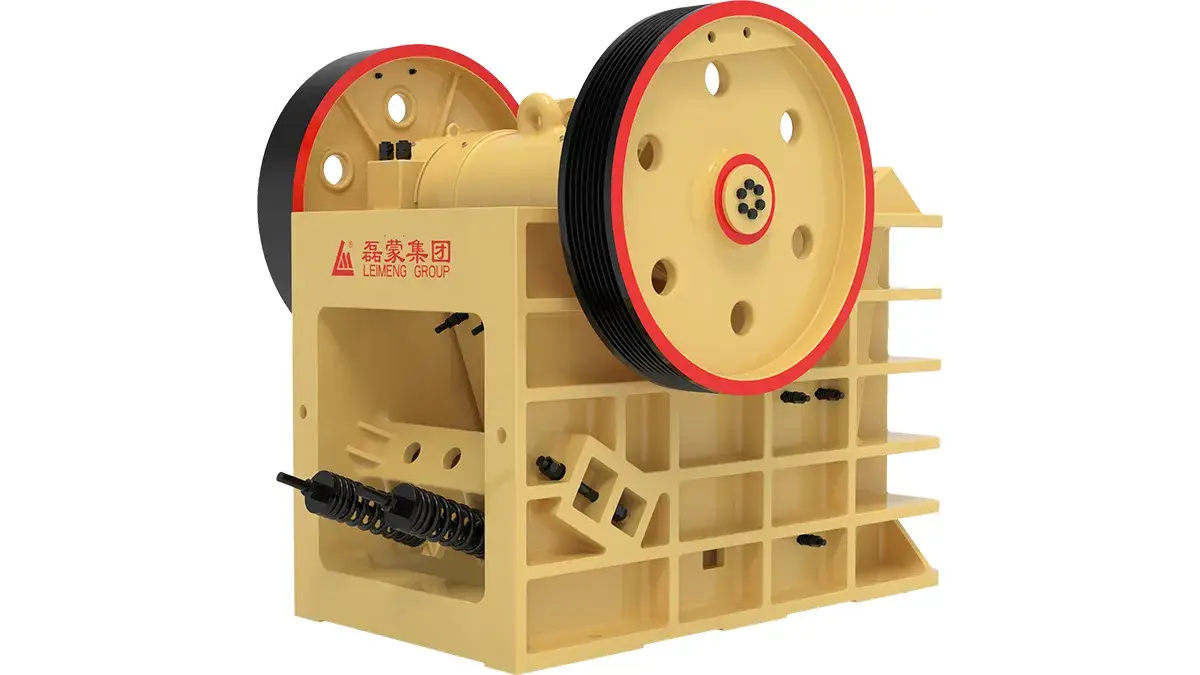

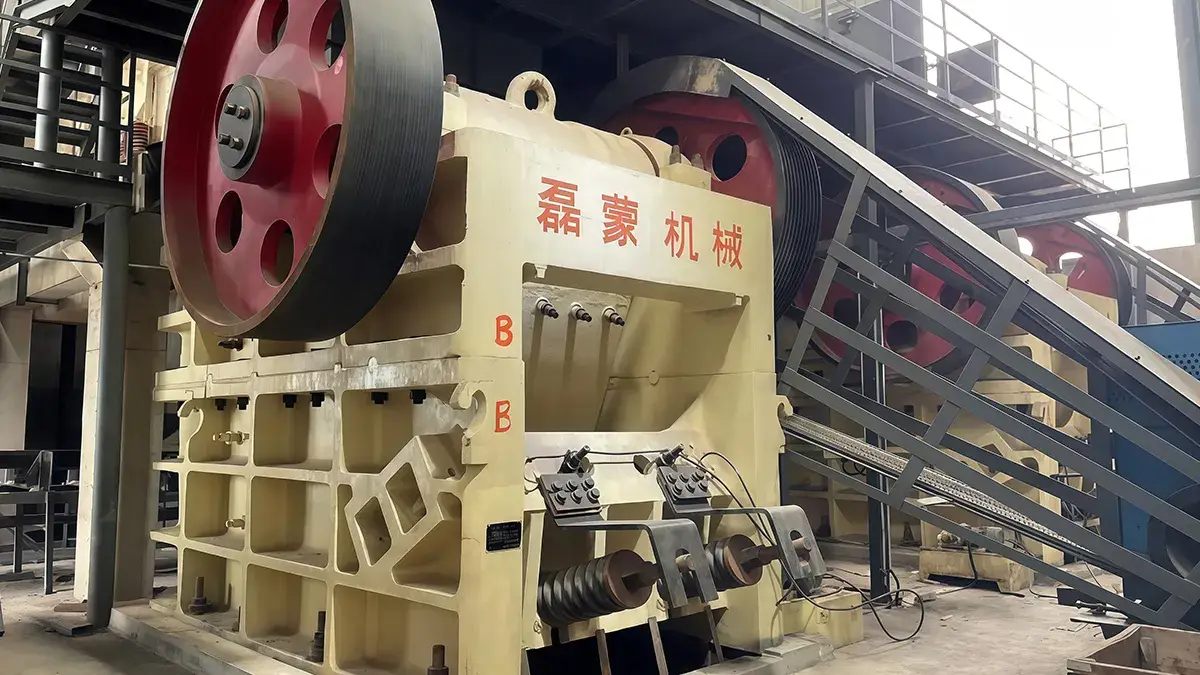

PE Series Jaw Crusher

This jaw crusher features a large crushing ratio, uniform product size, simple structure, reliable operation, and easy maintenance. It is widely used in industries such as mining, metallurgy, building materials, highways, water conservancy, and chemicals. It is an excellent choice for primary crushing equipment in complete crushing production lines.

Request a Quote
Features

  • Modular design and a weld-free structure, making the crusher lightweight and more resistant to impact.

  • Use of large, high-quality bearings, ensuring longer product lifespan and more reliable quality.

  • The eccentric shaft is made of heavy-duty forged alloy steel, and the front and rear frames are made of high-strength cast steel.

  • Optimized crushing mechanism that achieves the best bite angle and stroke, improving the crushing ratio.

  • Higher rotation speed, increasing throughput and the number of material crushing cycles, which significantly boosts capacity.

  • Quick discharge adjustment, with both hydraulic and mechanical types adjustable from both sides via wedge blocks.

Applicable Materials
  • Metal Ores
  • Non-Metal Ores
Specifications
Model Length L1 (mm) Width W1 (mm) Height H1 (mm)
PE-500X750 2030 1966 1920
PE-600X900 2216 2144 2370
PE750X1060 2520 2440 2872
PE870X1060 2680 2470 2845
PE900X1200 3095 2970 3360
PE1000X1200 3195 2970 3360
PE1200X1500 4500 3420 3725
PE1300X1600 4130 4110 4450
PE1500X1800 5200 3970 4450
PEX250X1000 1530 1990 1430
PEX250X1200 1530 2190 1430
PEX300X1300 1700 2470 1730

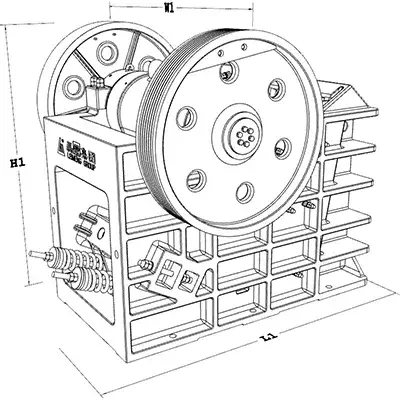

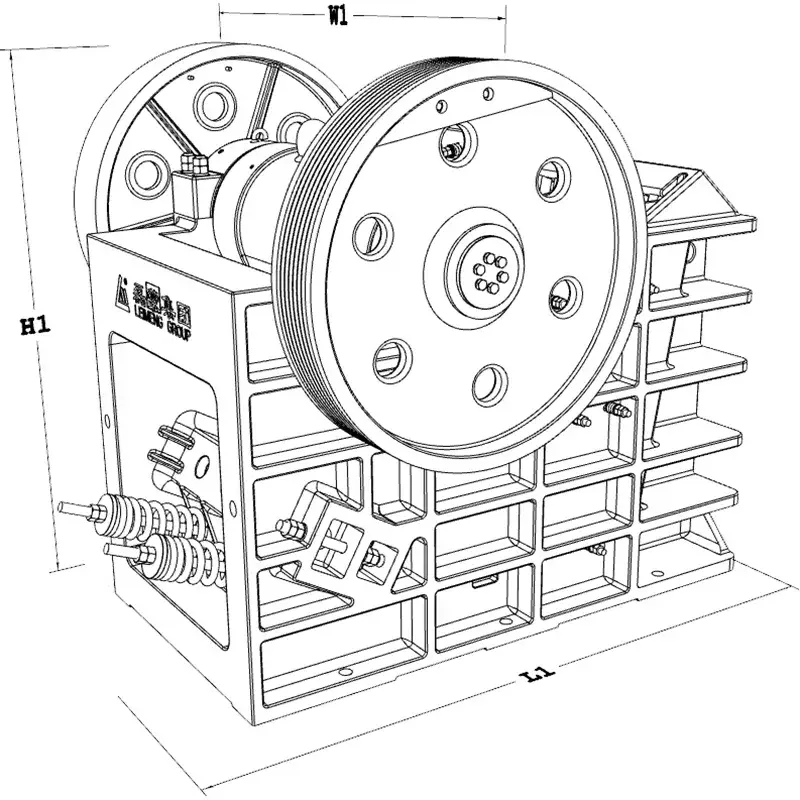

Dimensions
Dimensions
Technical Parameters
Model Feed opening (mm) Max. feeding size (mm) Discharging size (mm) Capacity (t/h) Electro motor
Model Power (kW)
PE500X750 500×750 425 50-100 48-96 Y280M-6 55
PE600X900 600×900 500 65-180 64-112 Y315L-8 75
PE750X1060 750×1060 630 100-220 120-211 Y315L-8 110
PE870X1060 870×1060 700 100-220 160-368 Y355M1-8 132
PE900X1200 900×1200 750 100-220 240-512 Y355M2-8 160
PE1000X1200 1000×1200 800 100-220 320-765 Y355L-8 180
PE1200X1500 1200×1500 900 100-220 480-960 Y355L-6 240
PE1300X1600 1300×1600 1000 130-280 1120-1370 Y450L1-8 450
PE1500X1800 1500×1800 1200 200-350 1440-1760 Y450L2-8 630
PEX250X1000 250×1000 210 15-50 16-51 Y250M-6 30
PEX250X1200 250×1200 210 15-50 24-56 Y250M-6 37
PEX300X1300 300×1300 250 20-90 32-144 Y250M-6 55

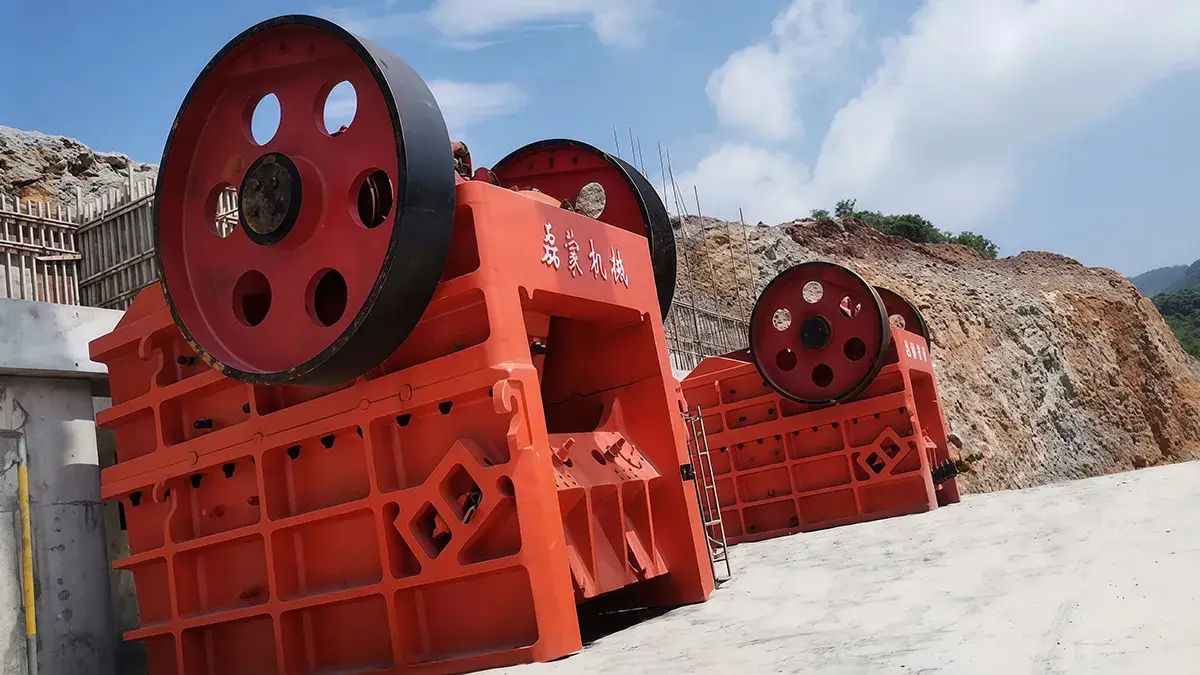

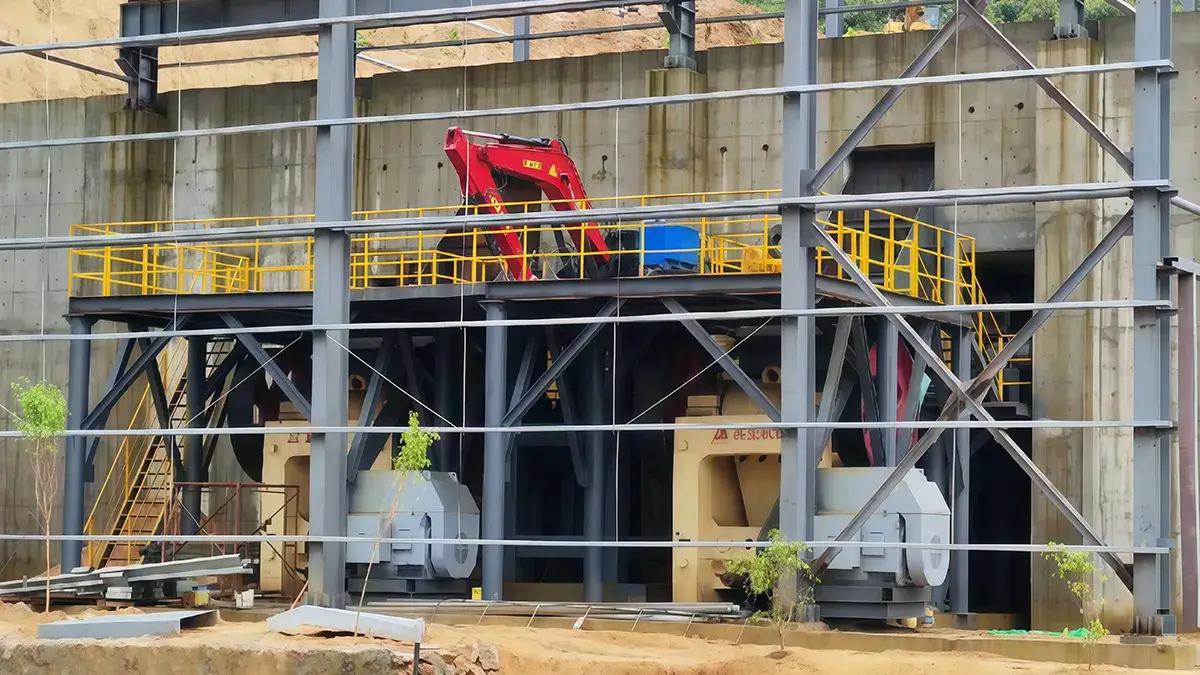

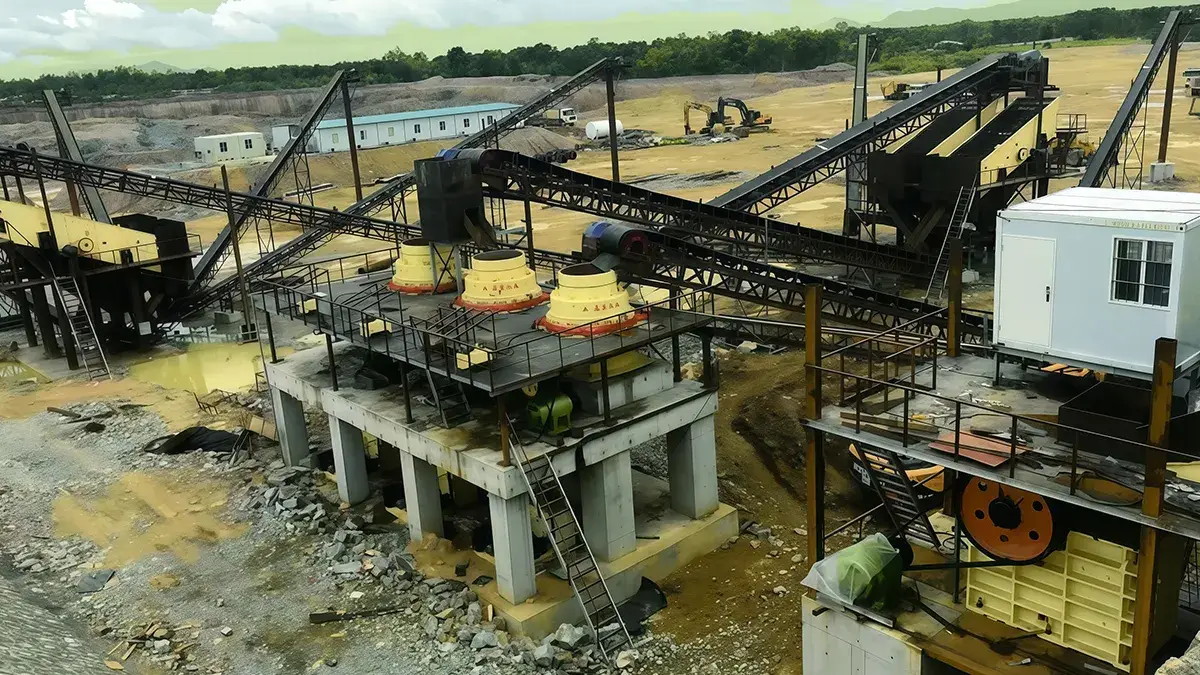

Projects
Aggregate Plant for Hongsheng Mining in Qingyuan, GuangdongAggregate Plant for Hongsheng Mining in Qingyuan, Guangdong
Aggregate Plant in KazakhstanAggregate Plant in Kazakhstan
Limestone Plant in Yuzhou, Henan (10 million tons per year)Limestone Plant in Yuzhou, Henan (10 million tons per year)

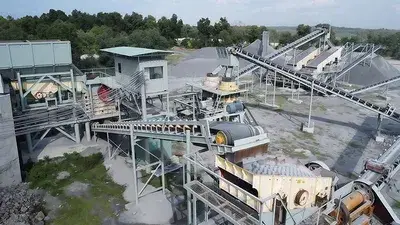

Aggregate Production Line in Binh Phuoc, VietnamAggregate Production Line in Binh Phuoc, Vietnam
Aggregate Production Line in Chonburi, ThailandAggregate Production Line in Chonburi, Thailand

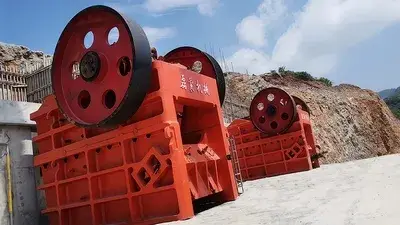

Aggregate Plant in Zhongxiang, Hubei (10 million tons per year)Aggregate Plant in Zhongxiang, Hubei (10 million tons per year)
