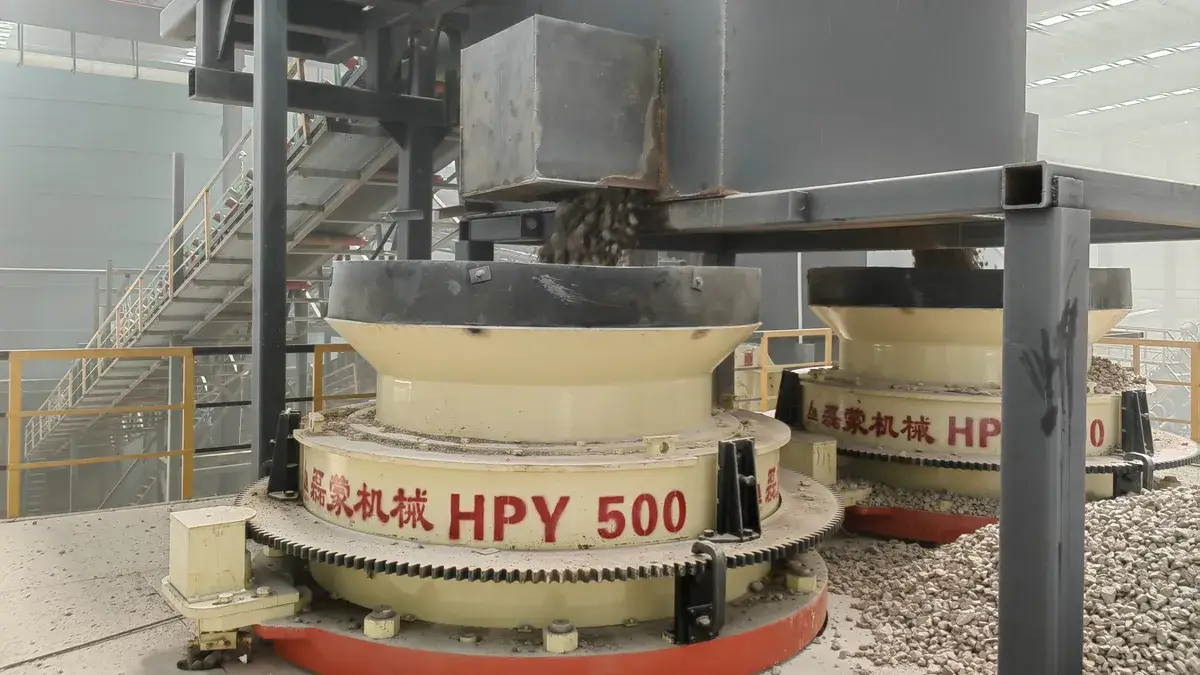

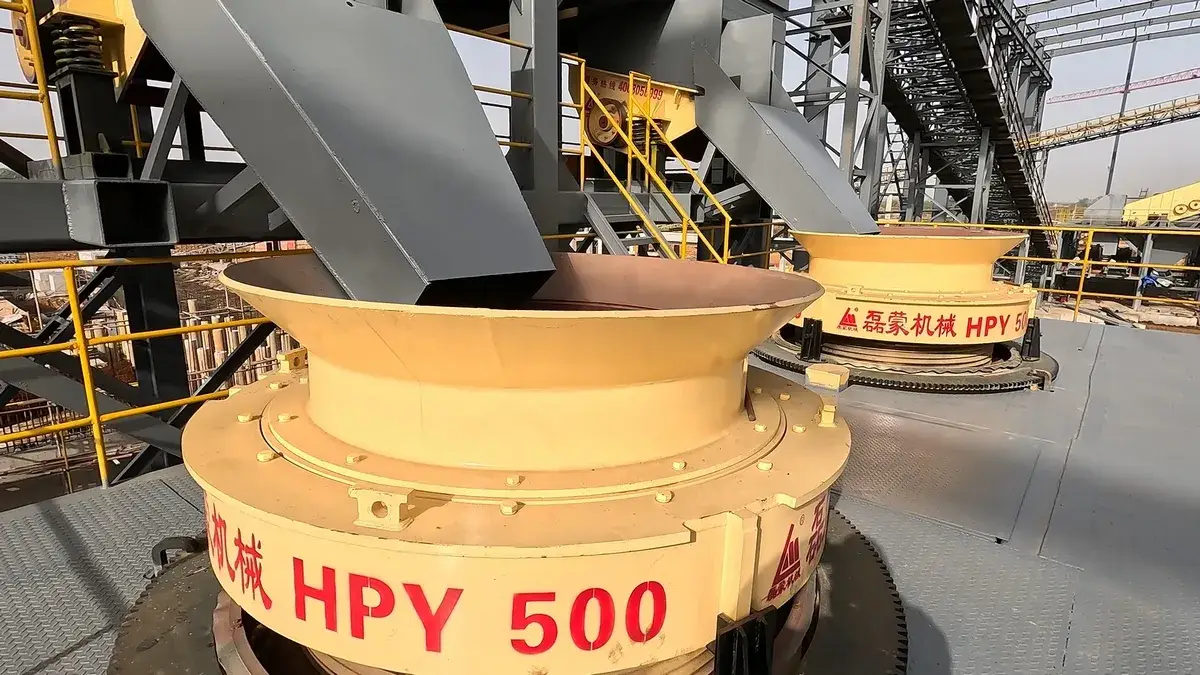

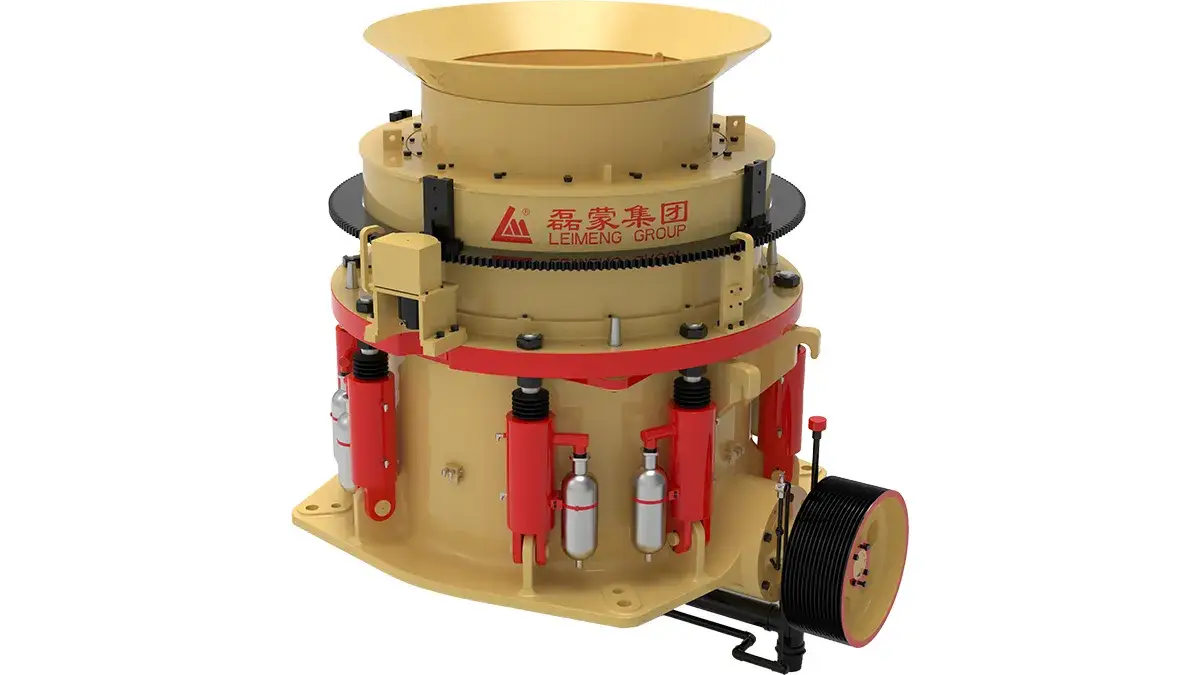

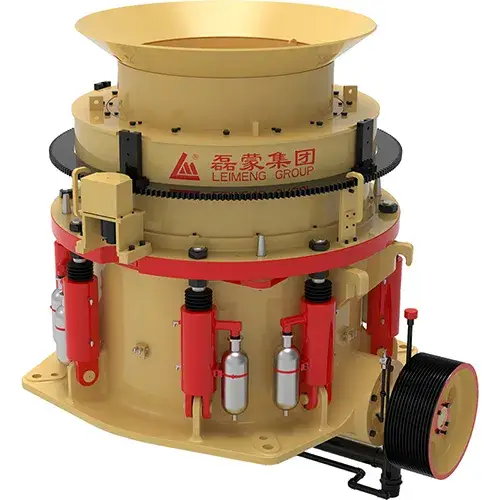

H(M)PY Series Symons Cone Crusher

(Multi-Cylinder, Tertiary Crushing)

The H(M)PY series multi-cylinder symons cone crusher is equipped with an hydraulic tramp release cylinder, locking cylinder, and automatic discharge adjustment system, which enables automatic locking and chamber clearing functions, reducing adjustment and downtime. It is widely used in mining, metallurgy, sand and gravel, and cement operations. Suitable for medium, medium-fine, and fine crushing of various ores and non-metallic minerals, from ferrous metal ores to non-ferrous metal ores, limestone, and basalt, it excels in fine and ultra-fine crushing applications.

Request a Quote
Applicable Materials
  • Metal Ores
  • Non-Metal Ores
Features
  • Engineered with a high-strength integral cast frame for maximum structural integrity and extended service life.
  • Features a hydraulic motor system for remote, continuous, and precise closed side setting (CSS) adjustments, ensuring rapid operational response.
  • Utilizes the laminated crushing principle to optimize throughput, reduce liner wear, and produce a high-quality cubical product with a optimized fines generation.
  • Precision-machined seating surfaces allow for fast, backing-free installation of mantles and concaves, significantly reducing maintenance downtime and replacement costs.
  • The adjustment sleeve is secured by multiple compact hydraulic cylinders, ensuring uniform locking force and unparalleled reliability.
  • Combines labyrinth and spherical floating seals to provide a robust barrier against dust, protecting internal components and extending oil life.
  • Equipped with a hydraulic tramp release and chamber clearing system, allowing the machine to safely clear uncrushable materials and minimize downtime.
  • Employs spiral bevel gearing for high load-carrying capacity, quiet operation, and smooth power transmission.
  • Features an automated intelligent control system paired with integrated lubrication, enabling real-time condition monitoring and optimized performance.

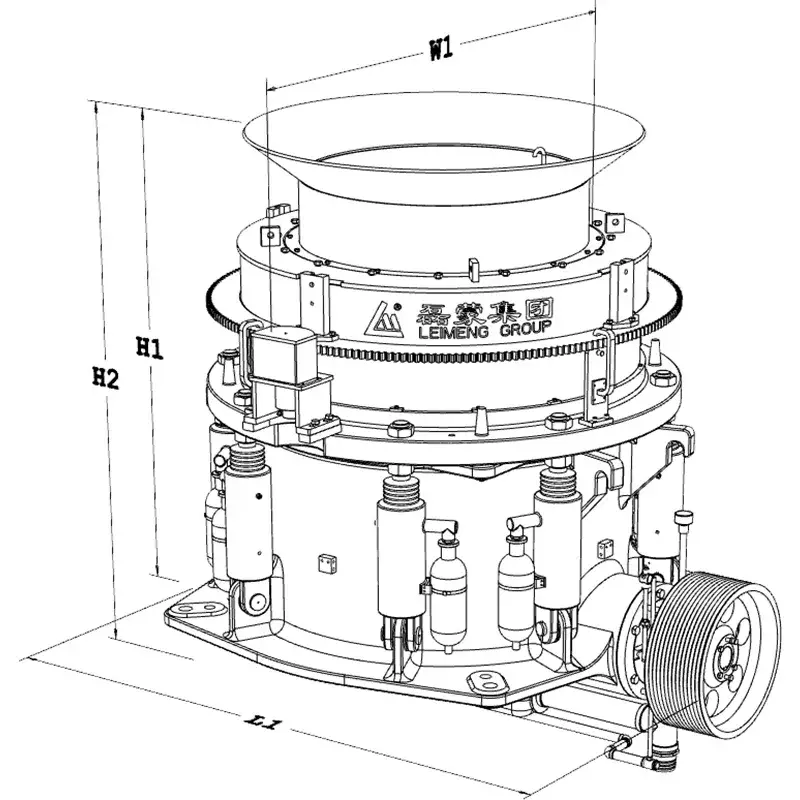

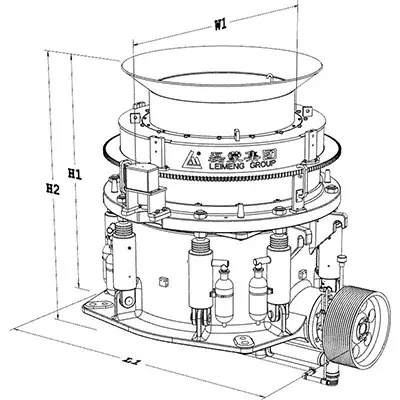

Dimensions
Model Length L1 (mm) Width W1 (mm) Height H1 (mm) Height H2 (mm)
HPY200 2180 2110 1875 2500
HPY300 2520 2350 2210 2910
HPY400 2850 2500 2390 3010
HPY500 3300 3080 2400 3250
HPY800 4000 3600 3310 4350
HPY900 4000 3600 3310 4350
MPY1000 4805 3900 3870 4540
MPY1250 5000 4700 5050 5790
Dimensions
Technical Parameters
Model HPY200 HPY300 HPY400 HPY500 HPY800 HPY900 HPY1000 MPY1250
Max. feeding size (mm) 185 230 300 330 350 356 360 360
Discharging size (mm) 13 13 13 16 16 9 13 10
Capacity (t/h) 120-250 150-440 185-630 280-790 385-1200 341-1440 615-2420 590-3025
Power (kW) 160 220 315 400 630 710 800 900

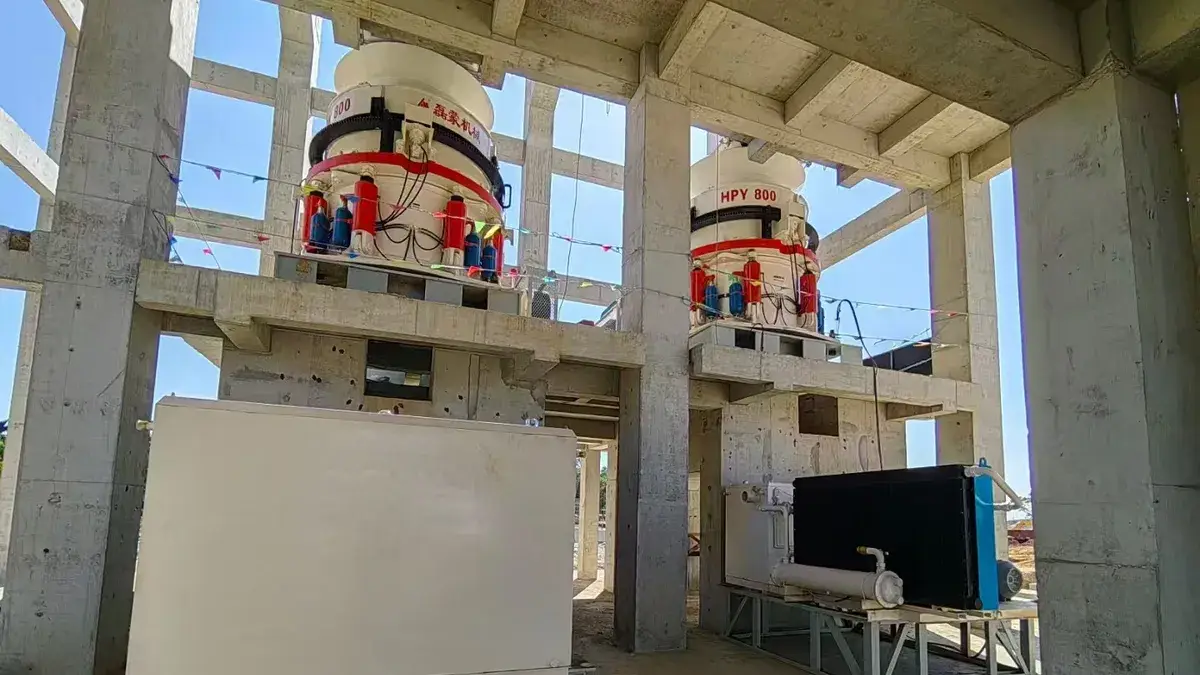

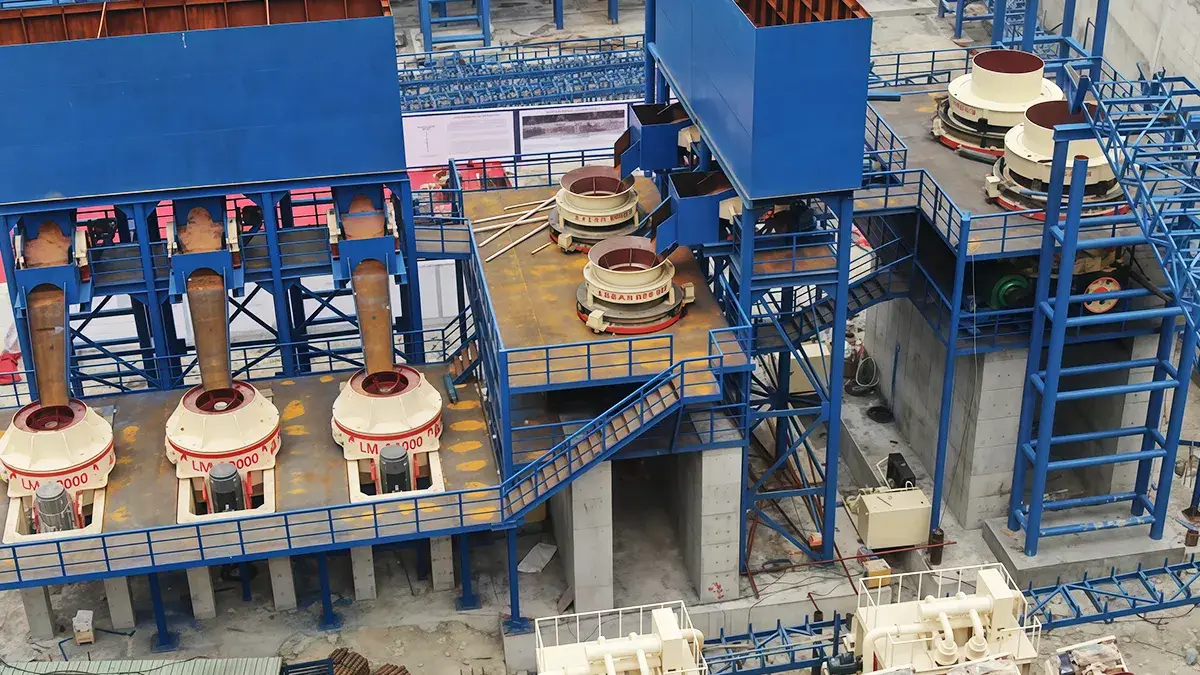

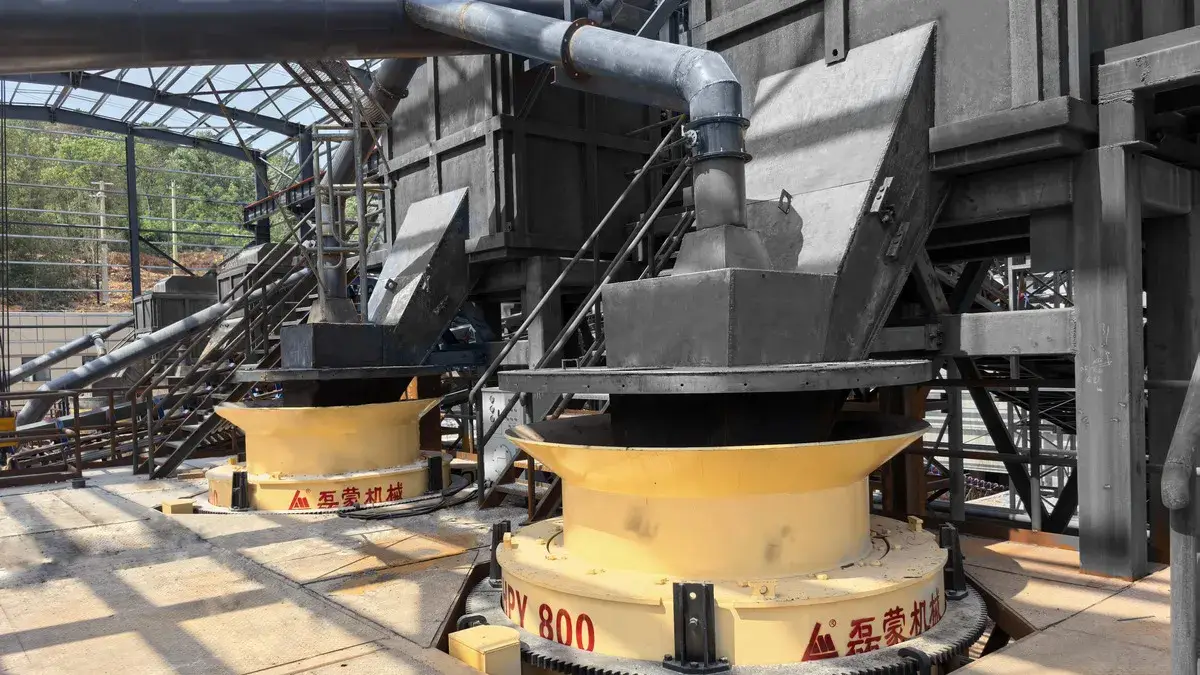

Projects

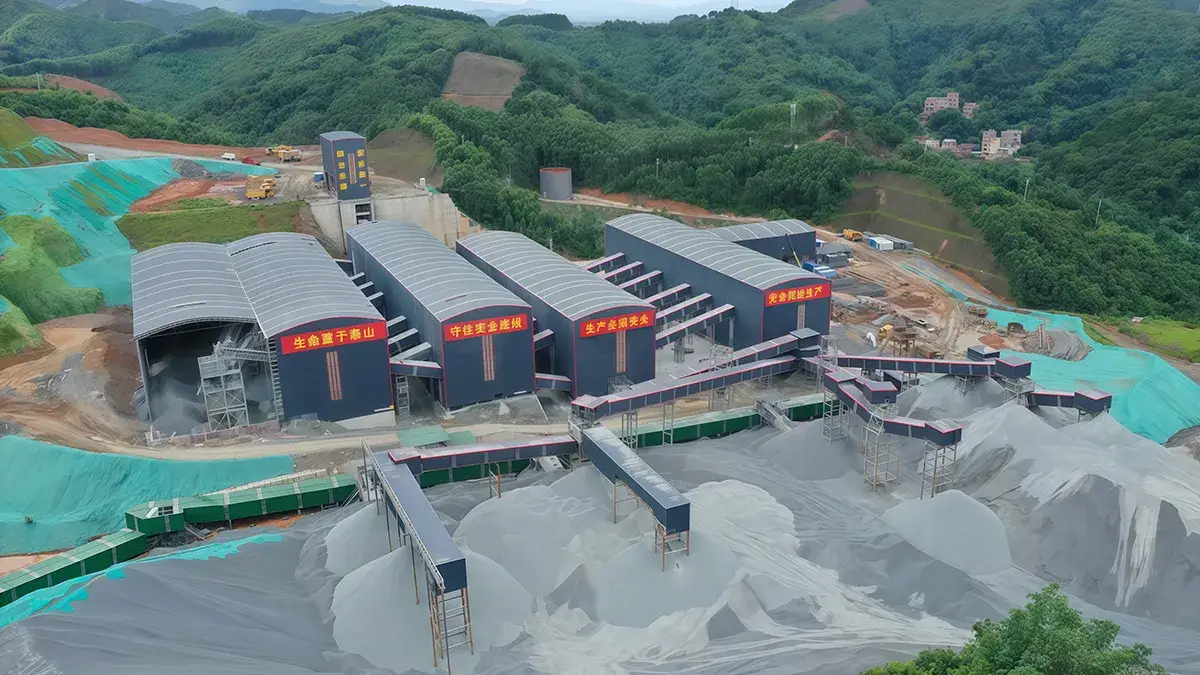

Aggregate Plant Project in Hengyang, Hunan (7.5 million tons per year)Aggregate Plant Project in Hengyang, Hunan (7.5 million tons per year)
