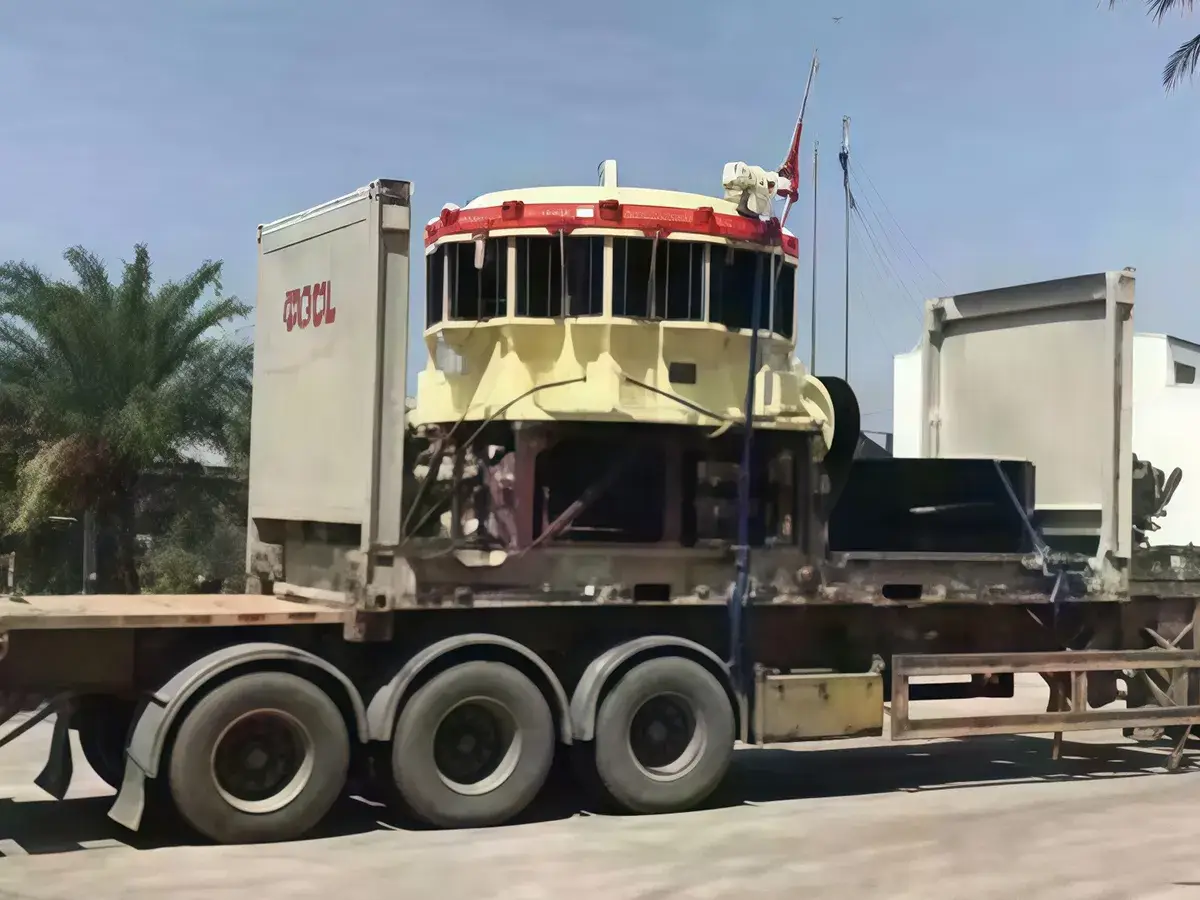

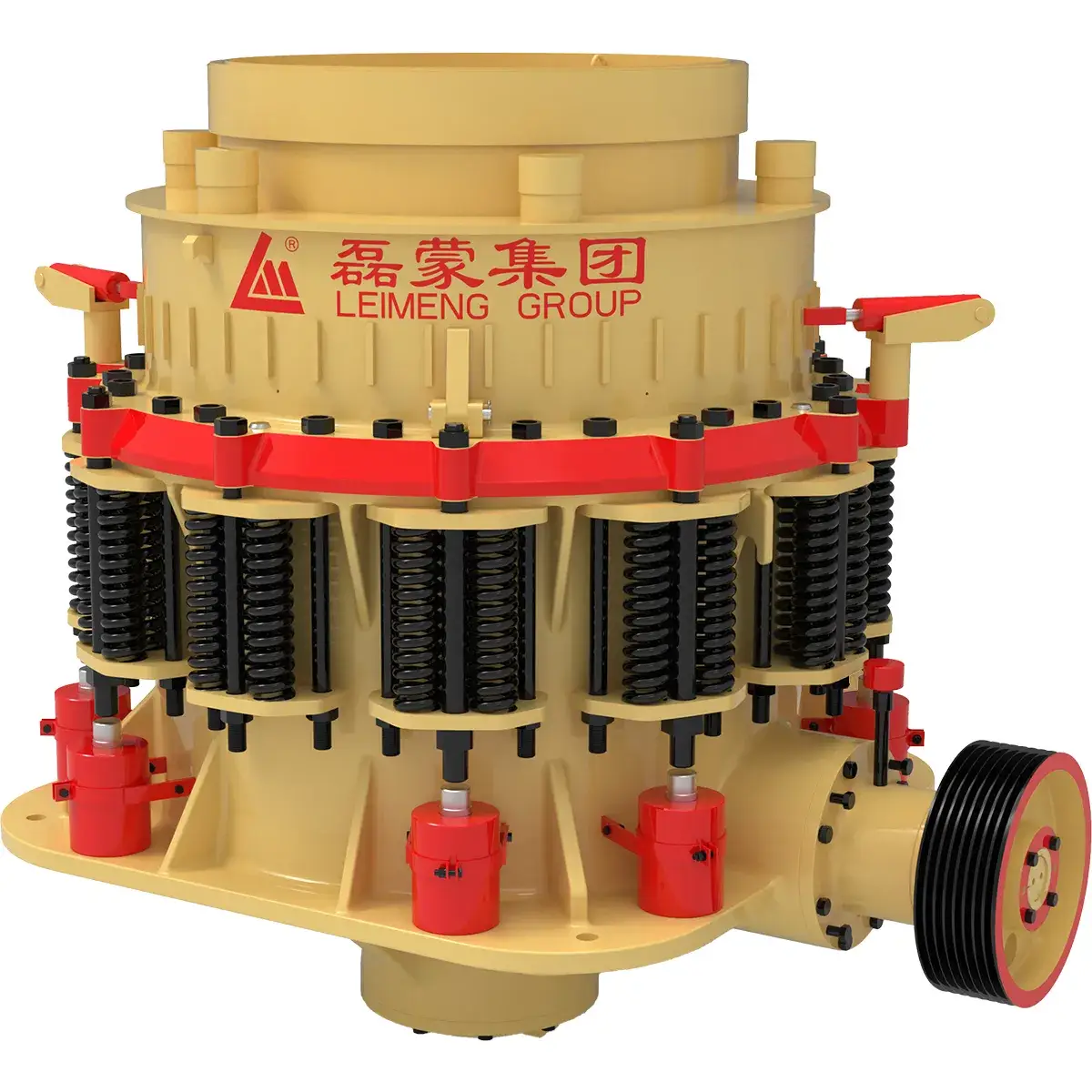

LMC Series Symons Cone Crusher
(Spring, Secondary/Tertiary Crushing)
This comprehensive cone crusher combines both spring and hydraulic cylinder systems. It is suitable for crushing materials of medium hardness and above.
It is mainly used in industries such as mining, chemical processing, road and bridge construction, and building materials. The crusher is suitable for medium and fine crushing of various ores and rocks with compressive strength below 300MPa, including iron ore, non-ferrous metal ores, basalt, granite, limestone, and river pebbles.
Applicable Materials
- Metal Ores
- Non-Metal Ores

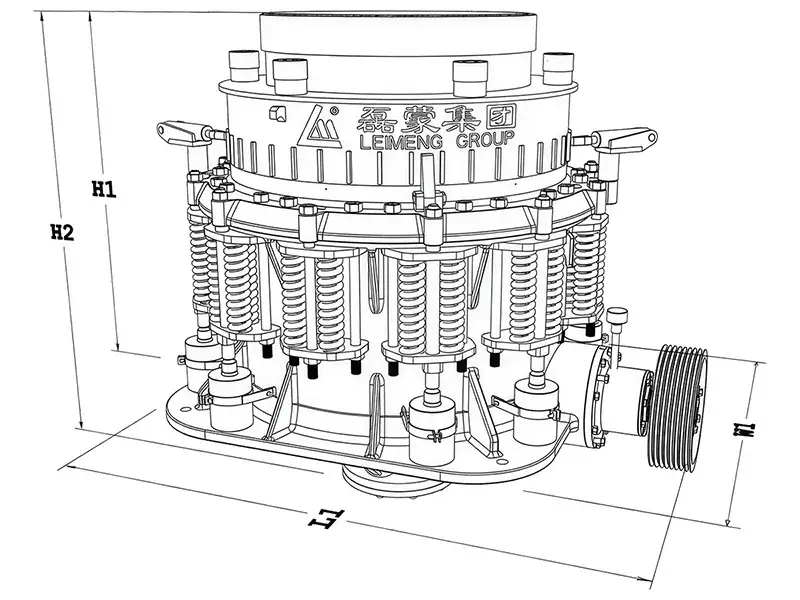

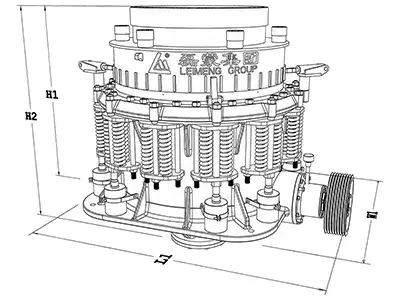

Dimensions
| Model | Length L1 (mm) | Width W1 (mm) | Height H1 (mm) | Height H2 (mm) |
| 2670 | 2000 | 1750 | 2250 | |
| 3000 | 2650 | 2330 | 3030 | |
| 3255 | 2650 | 2400 | 3240 | |
| 3500 | 2860 | 2765 | 2620 |
Technical Parameters
| Model | Max. feeding size (mm) | Discharging size (mm) | Capacity (t/h) | Power (kW) |
| |
180 | 10-38 | 60-260 | 132 |
| |
215 | 10-51 | 122-440 | 220 |
| |
235 | 10-64 | 148-580 | 240 |
| |
267 | 10-64 | 180-725 | 320 |

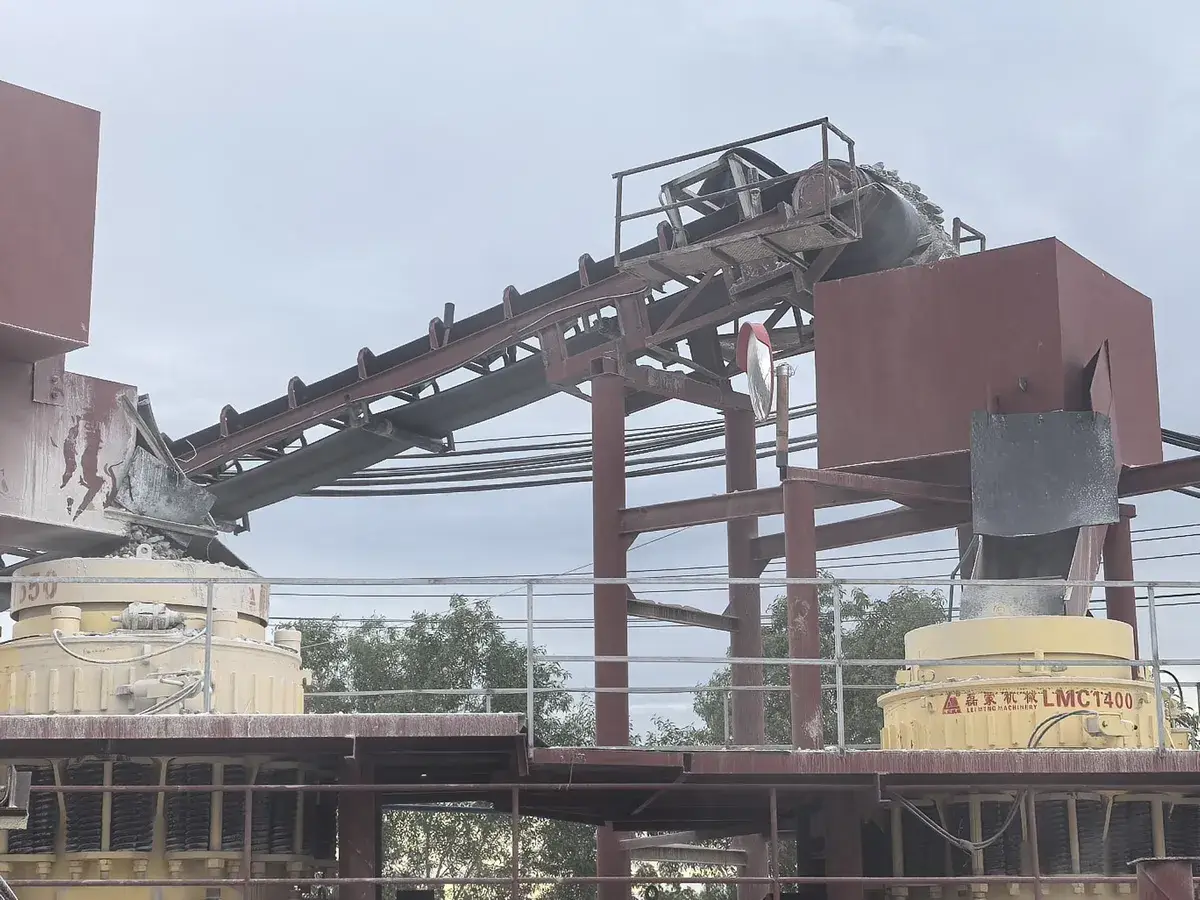

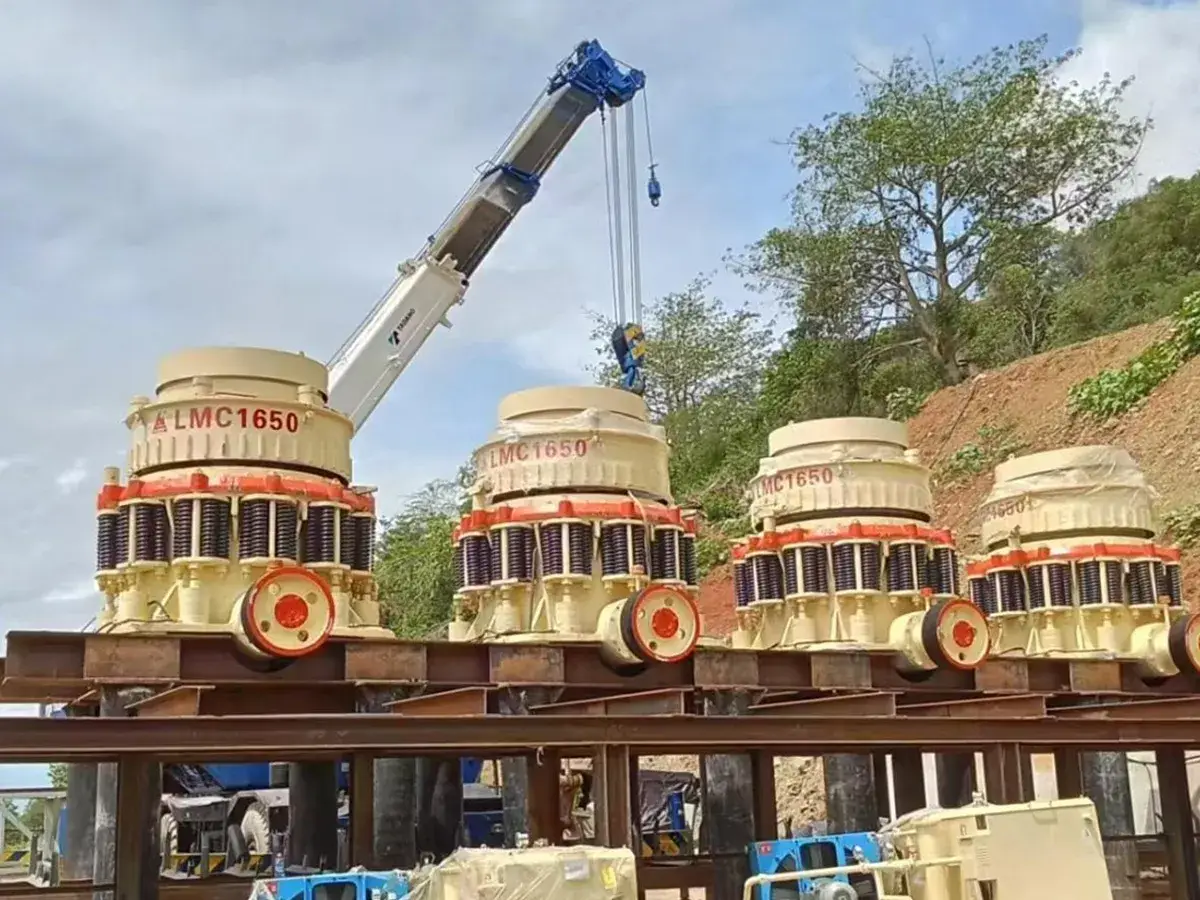

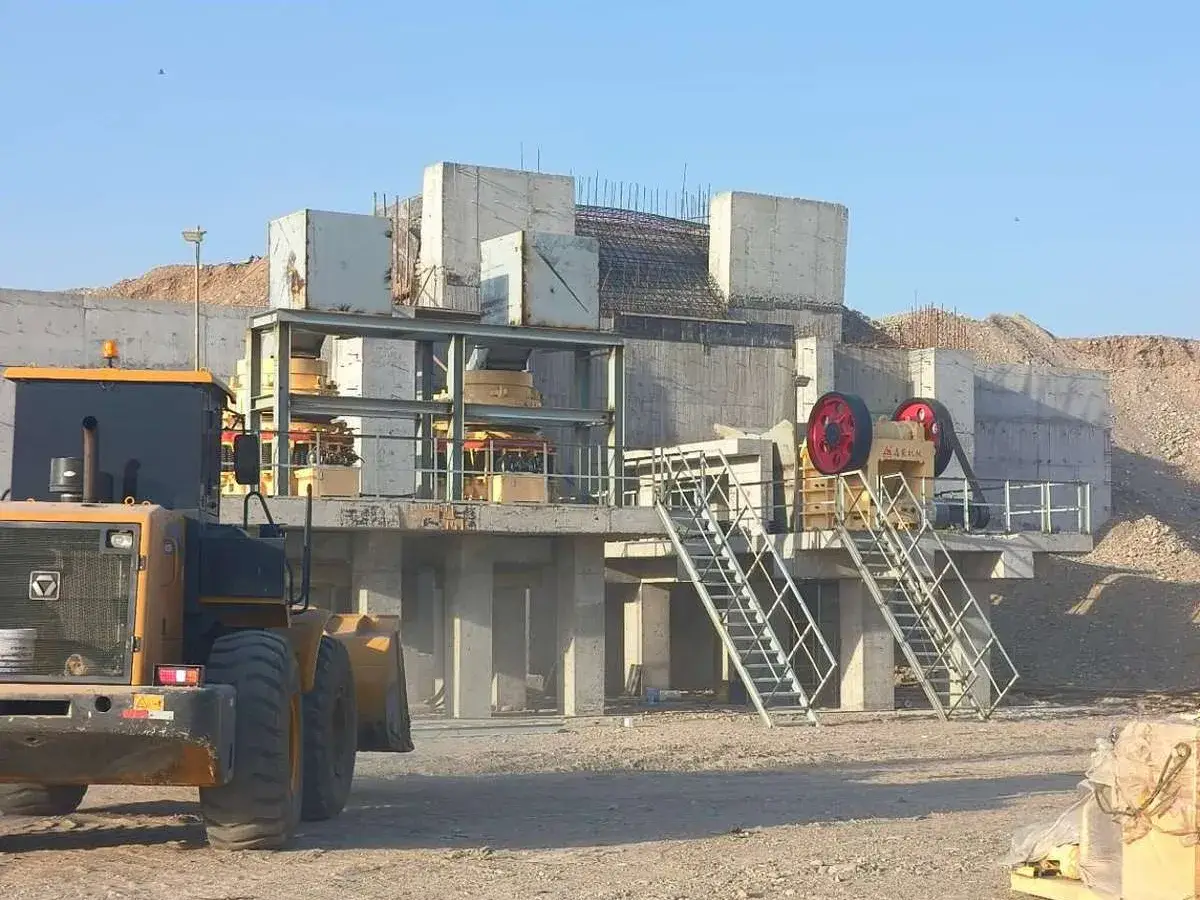

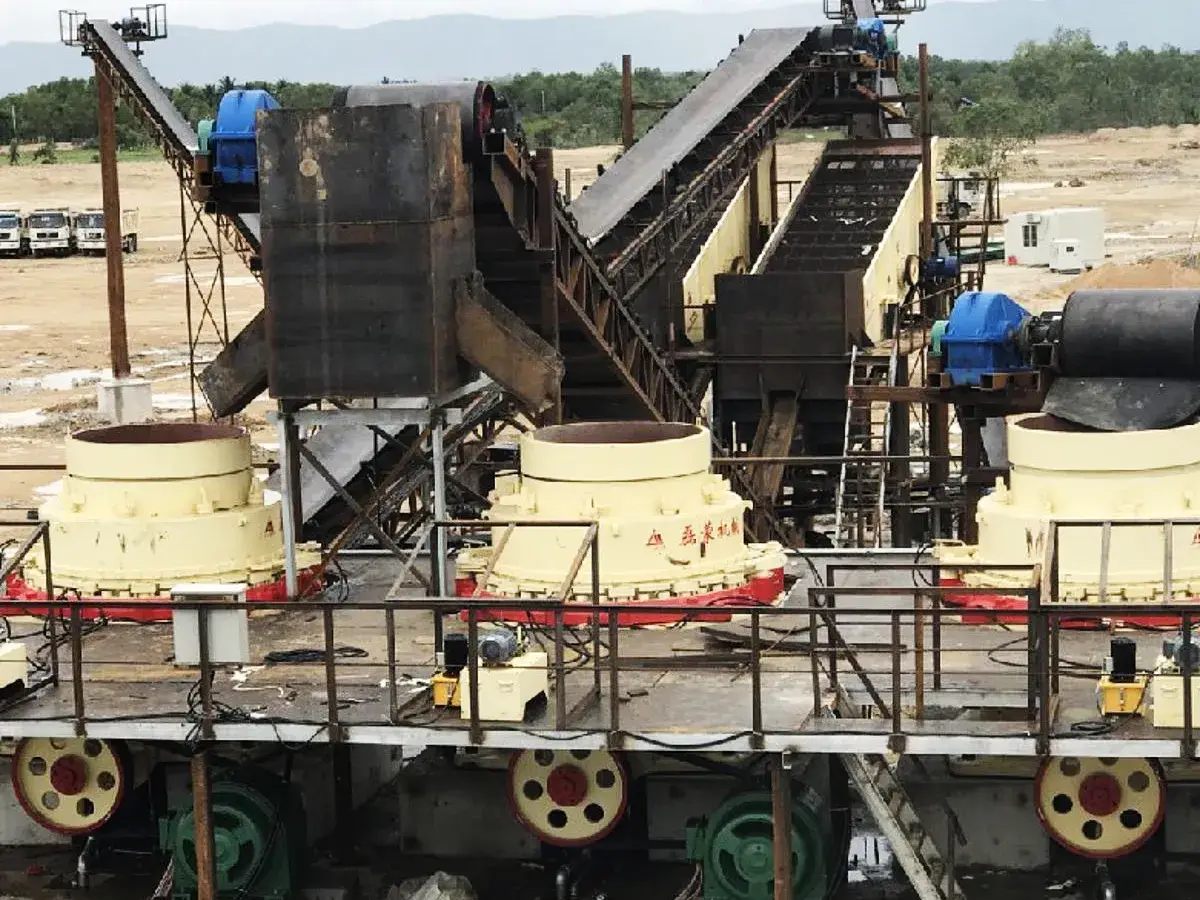

Projects
Aggregate Plant Project in the Philippines
Aggregate Plant Project in Kazakhstan

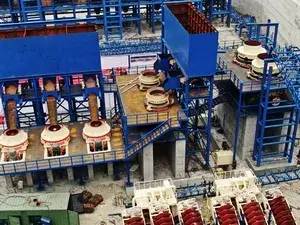

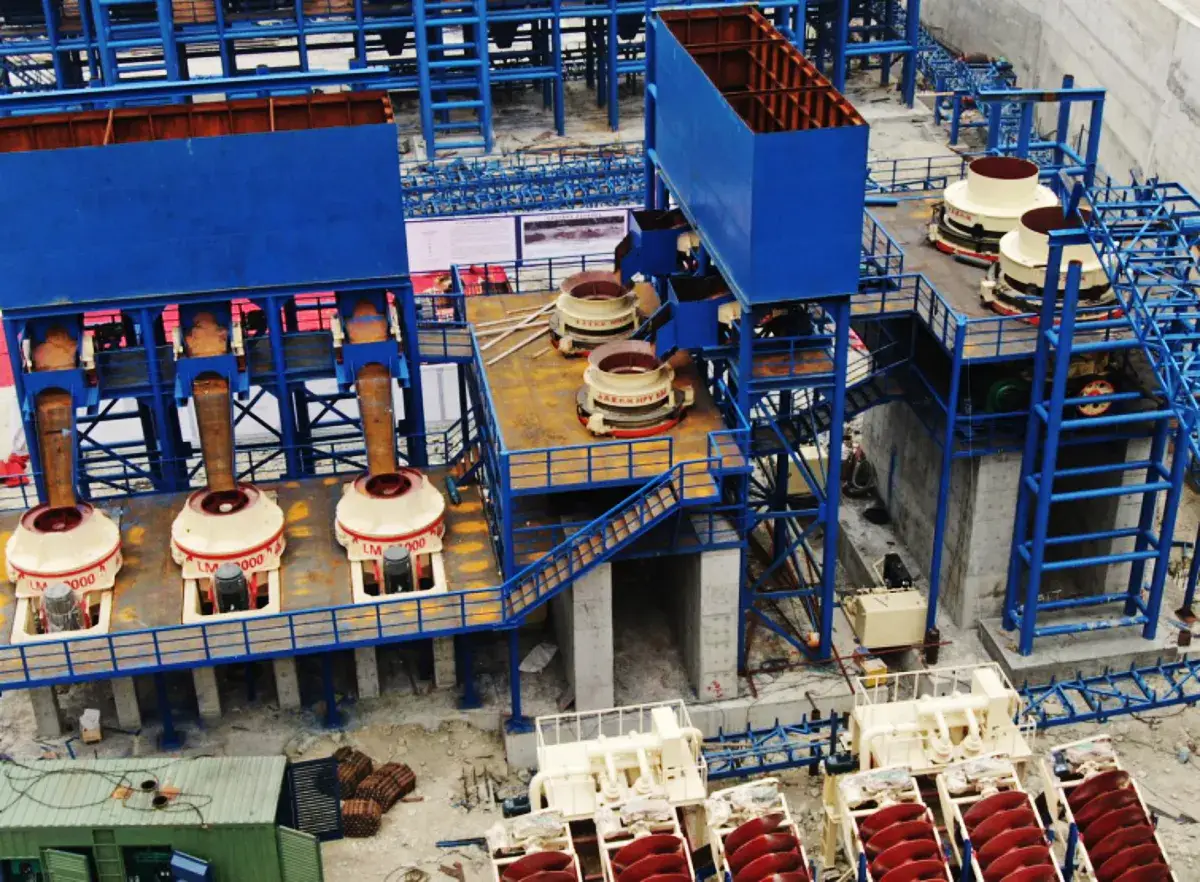

Aggregate Plant Project in Wenchuan, Sichuan (5 million tons per year)

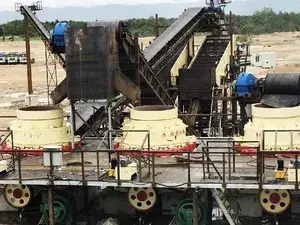

Aggregate Production Line Project in Chonburi, Thailand
Aggregate Plant Project in Indonesia

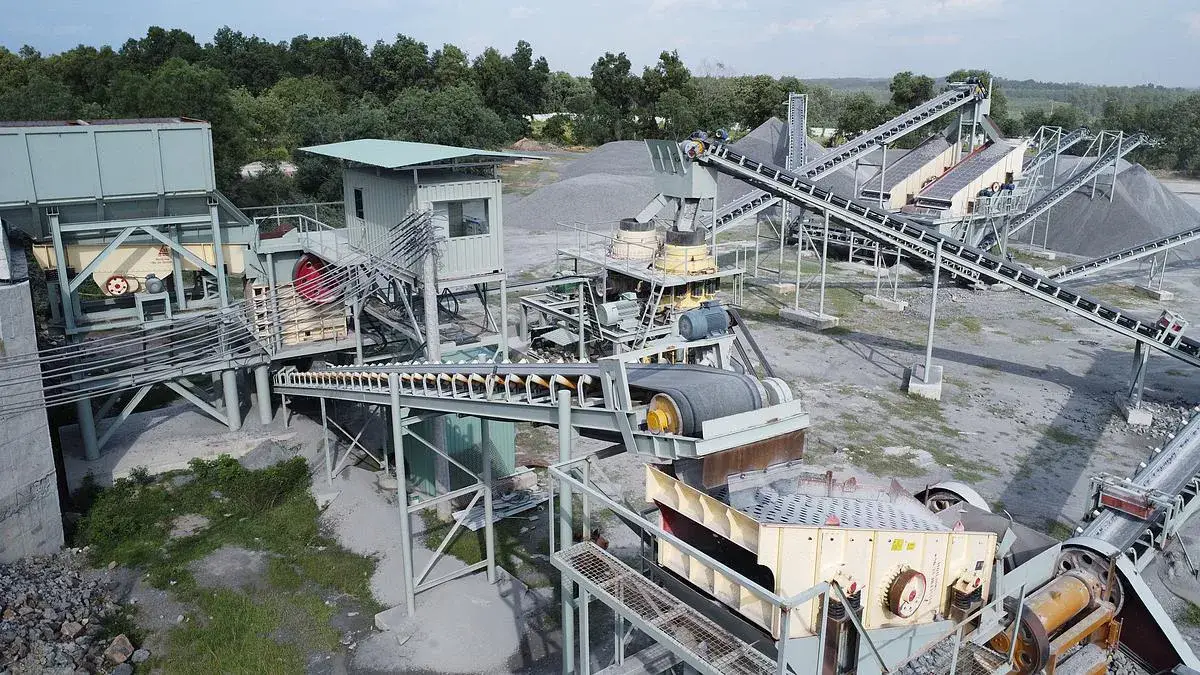

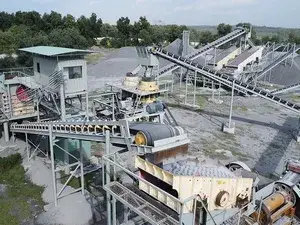

Aggregate Production Line Project in Binh Phuoc, Vietnam
