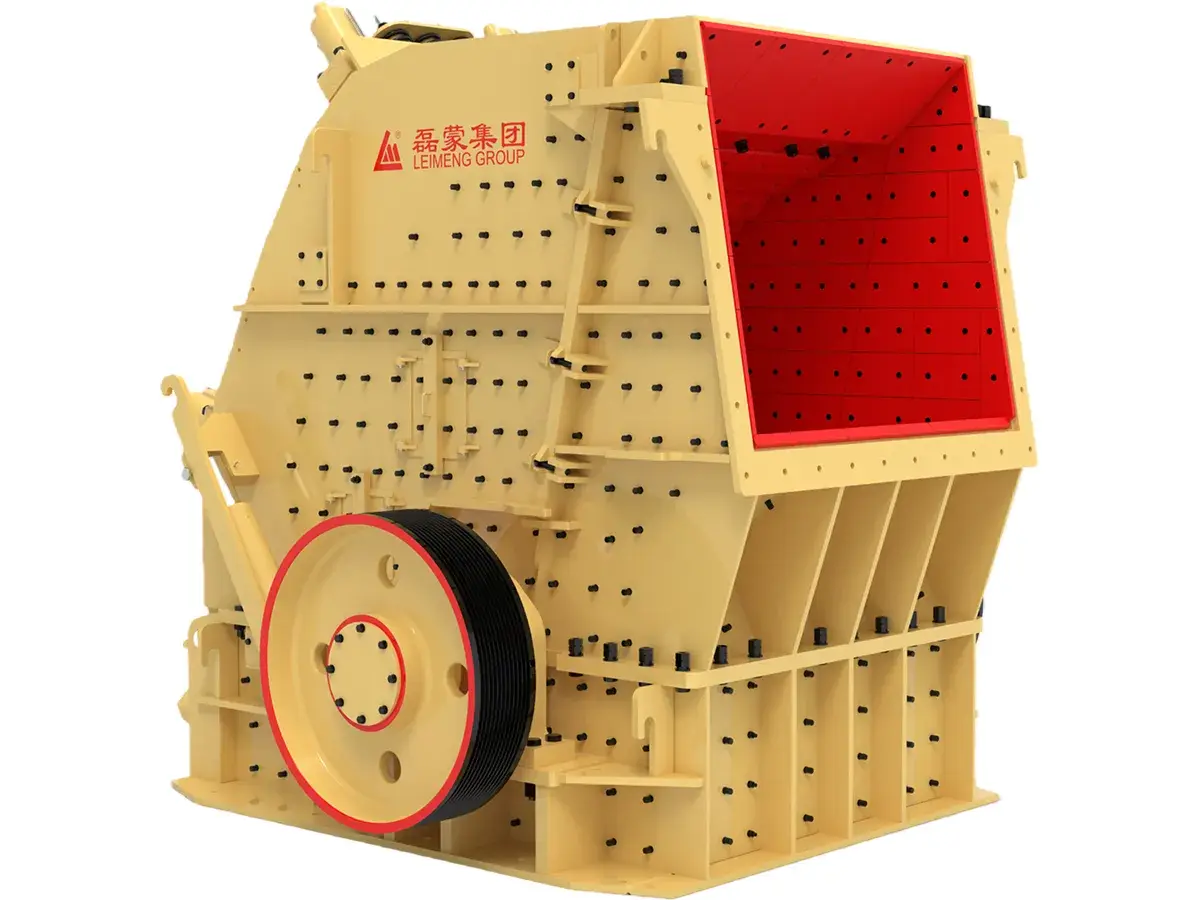

PFG Series Hydraulic Impact Crusher
This hydraulic impact crusher delivers outstanding performance, integrating unique crushing chamber designs, heavy-duty rotors, and premium wear-resistant materials. It is equipped with an computer control system featuring fully automatic hydraulic adjustment of the discharge opening, automatic opening of the housing, and a visual touchscreen interface. Real-time operating status display and fault warnings ensure simple operation, high efficiency, and reliable performance.
The crusher significantly improves product output and quality while reducing maintenance requirements and wear part costs. It can meet crushing demands for coarse crushing, medium crushing, fine crushing, and recycling applications.
Applicable Materials
- Metal Ores
- Non-Metal Ores

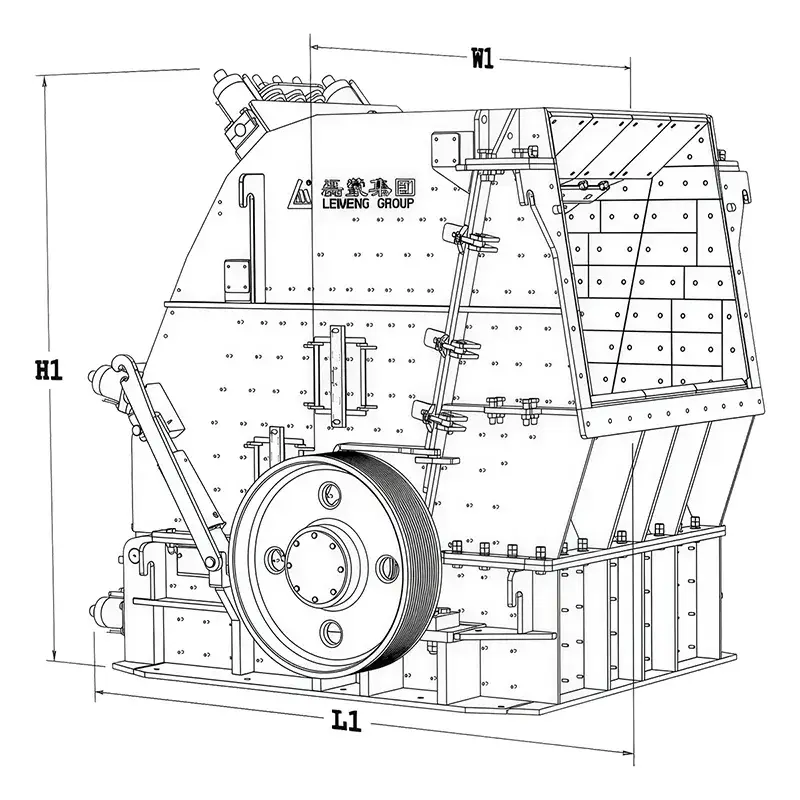

Dimensions
| Model | Length L1 (mm) | Width W1 (mm) | Height H1 (mm) |
| |
3452 | 2561 | 2937 |
| |
3785 | 2790 | 3375 |
| |
3333 | 3513 | 2861 |
| |
3888 | 3656 | 3535 |
| |
5126 | 4436 | 4684 |
| |
2626 | 2106 | 2000 |
| |
2806 | 2876 | 2599 |
| |
2780 | 2531 | 2120 |
| |
2895 | 3785 | 2270 |
| |
3260 | 3720 | 2635 |
Technical Parameters
| Coarse Crushing | Medium Crushing | Medium& Fine Crushing | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | |||||||||||
| Feed opening (mm) | 1320×1225 | 1540×1320 | 2040×995 | 2040×1634 | 2310×1986 | 1020×820 | 1540×930 | 1320×560 | 1540×600 | 2040×700 | 1260×3080 |
| Max. feeding size (mm) | 900 | 1000 | 700 | 1300 | 1500 | 400 | 600 | 350 | 400 | 400 | 350 |
| Rotor size (diameter×width) (mm) | 1300×1300 | 1400×1500 | 1500×2000 | 1600×2000 | 2000×2300 | 1100×1000 | 1300×1500 | 1200×1300 | 1300×1500 | 1500×2000 | 2000×3000 |
| Capacity (t/h) | 300-480 | 365-600 | 400-800 | 570-930 | 1160-1500 | 130-210 | 225-315 | 210-310 | 290-380 | 350-450 | 1500-2200 |
| Power (kW) | 200 | 250 | 250×2 | 280×2 | 500×2 | 160 | 250 | 250 | 315 | 250×2 | 1250 |
