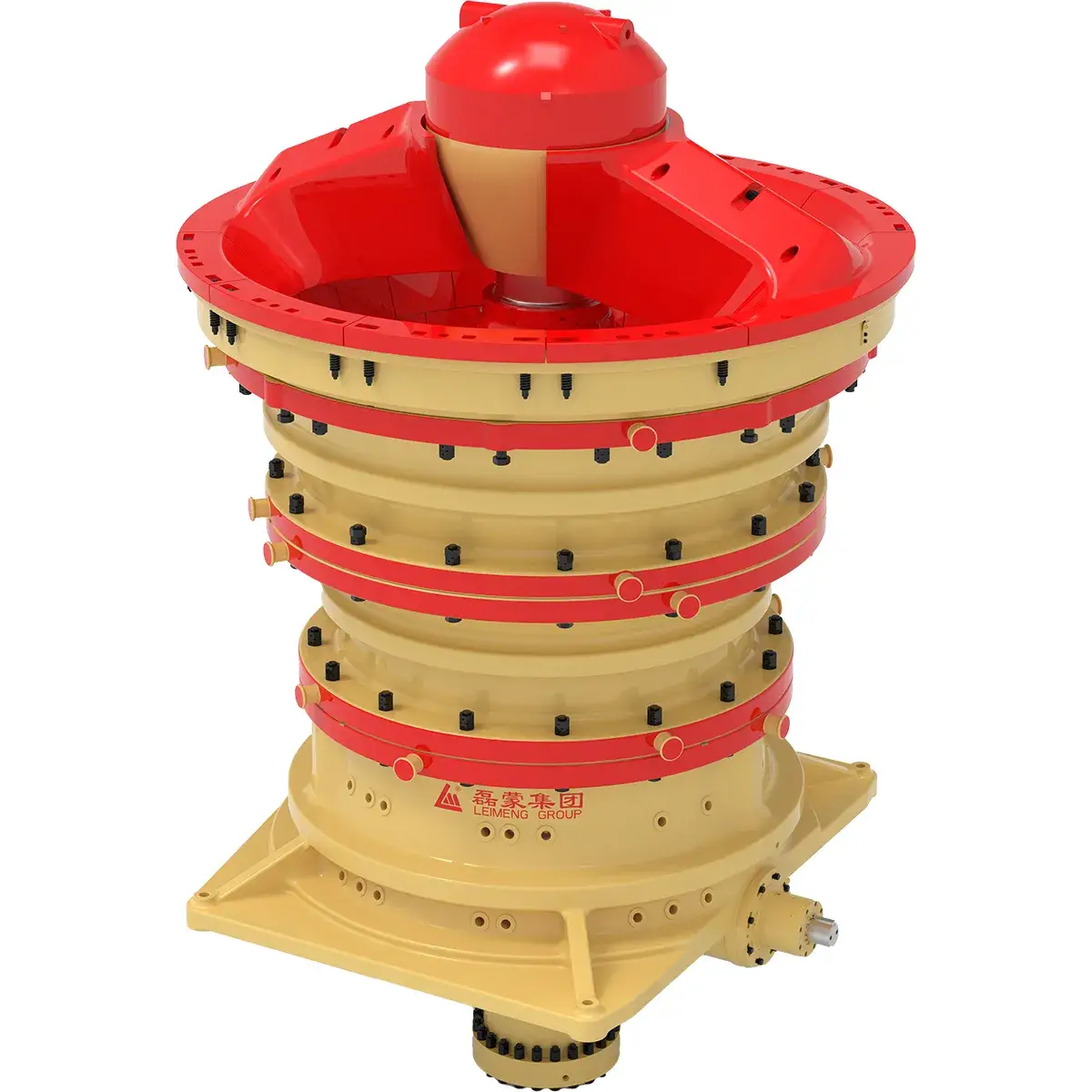

PXZ Series Hydraulic Gyratory Crusher
This series of stone crusher have a long history. Compared with jaw crusher, the product size is uniform, the mantle and concave wear is small, the operation rate is high, the production capacity is large.
Because of the use of straight tilting feed, to choose to do the coarse crushing can omit the raw ore bin and feeder equipment. The hydraulic gyratory crusher is the preferred stone crushing equipment for crushing all kinds of hard materials in medium and large scale mines and other industries. Modern gyratory crusher uses more advanced manufacturing method, more advanced control unit, more advanced sensing unit, this type of gyratory crusher is more intelligent, more efficient, and more reliable.
Applicable Materials
- Metal Ores
- Non-Metal Ores
Specifications
| Model | |||||
| Feed opening (mm) | 1065 | 1270 | 1400 | 1600 | 1600 |
| Max. feeding size (mm) | 900 | 1080 | 1200 | 1350 | 1350 |
| Adjustment range of discharge opening (mm) | 140-175 | 150-175 | 170-200 | 180-210 | 190-240 |
| Capacity (t/h) | 1800-2300 | 2000-2500 | 2500-3500 | 5000-6500 | 6000-8000 |
| Power(kW) | 450 | 450 | 500 | 750 | 800 |

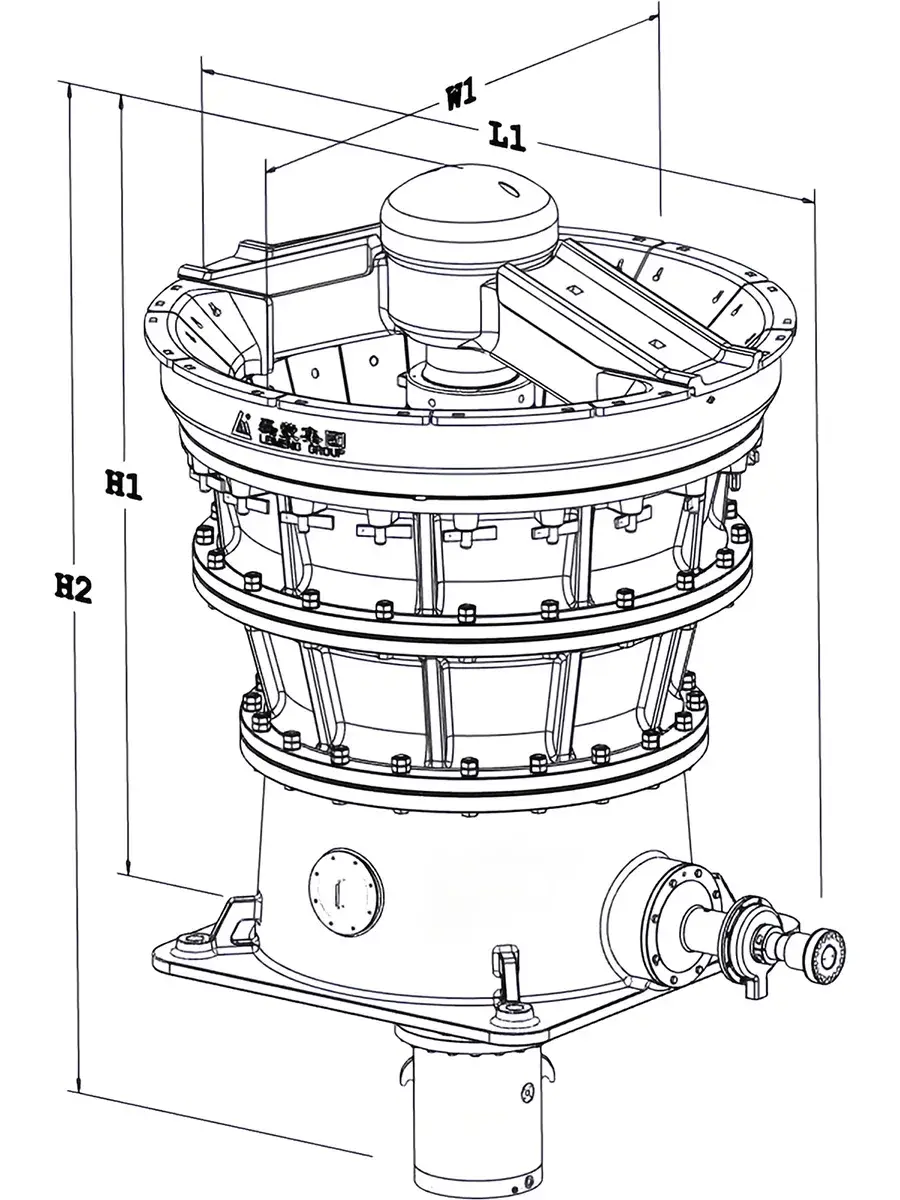

| Dimensions | |||||
| Length L1 (mm) | 4000 | 4000 | 6330 | 5740 | 5740 |
| Width W1 (mm) | 3937 | 4350 | 5360 | 5740 | 5740 |
| Height H1 (mm) | 4807 | 5525 | 6730 | 7185 | 7185 |
| Height H2 (mm) | 6372 | 7090 | 8700 | 9110 | 9110 |
