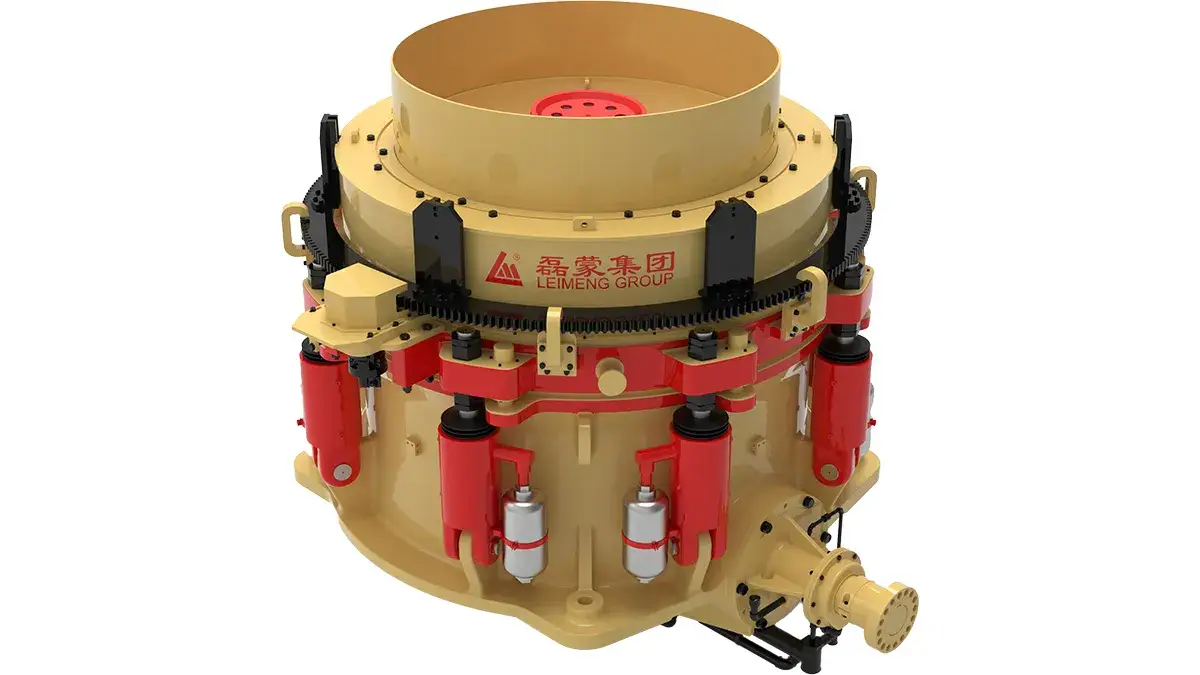

H Series Symons Cone Crusher

(Multi-Cylinder, Secondary Crushing)

The multi-cylinder symons cone crusher is developed based on years of mining machinery research experience, incorporating advanced crushing technologies from both domestic and international sources. It is a fully symons cone crusher of excellent quality, utilizing cutting-edge technologies like inter-particle crushing principle, high-precision manufacturing processes, and advanced intelligent control systems.

Request a Quote
Applicable Materials
  • Metal Ores
  • Non-Metal Ores
Features
  • Optimized Crushing Chamber Design

    Improves product shape, increases the proportion of cubic particles, reduces the amount of flaky particles, and enhances the crushing quality. A longer crushing chamber and greater retention force improve throughput.

  • Efficient Conversion of Horsepower into Crushing Force

    The optimized design allows more horsepower to be converted into crushing force, reducing friction and heat, thus increasing production and extending bearing life.

  • Enhanced Load Capacity

    The load capacity of key components is increased, making it suitable for crushing high-hardness metal ores and improving the durability of the equipment.

  • Heavy-Duty Cast Steel Frame

    The high-strength cast steel structure withstands harsh working conditions and prolongs service life.

  • Hydraulic Control System

    Simple discharge port adjustment and reliable overload protection system enhance equipment safety.

  • Automation Control System

    Simplifies operation, improves stability, and reduces manual intervention.

  • Replaceable Liners

    Easily replaceable liners allow for smooth conversion between coarse and fine crushing modes, meeting a variety of operational needs.

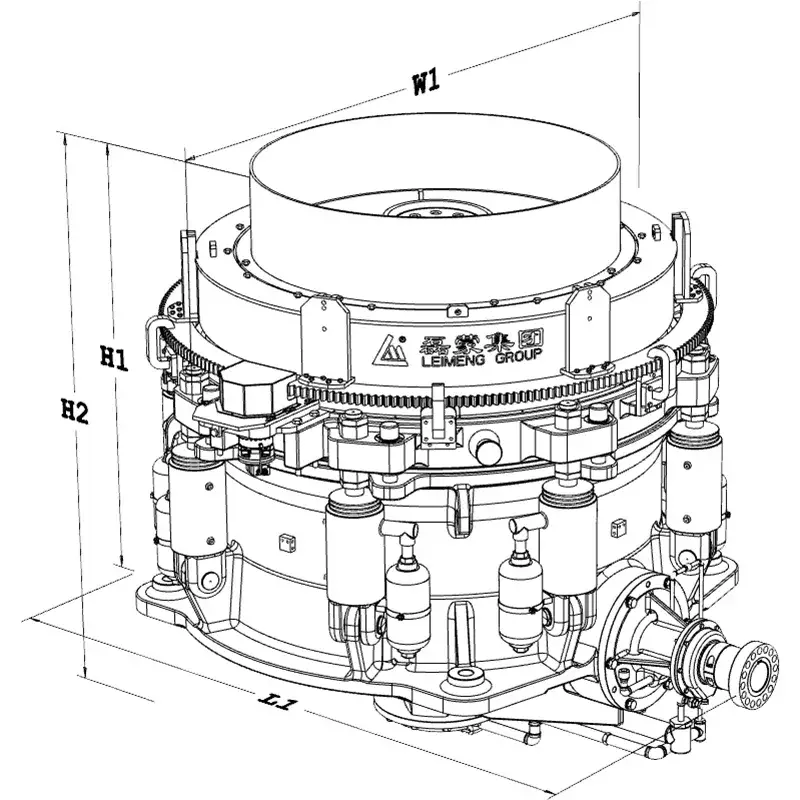

Dimensions
Model H700 H900
Length L1 (mm) 5080 5020
Width W1 (mm) 4080 5055
Height H1 (mm) 3300 3310
Height H2 (mm) 4320 4330
Dimensions
Technical Parameters
Model Cavity Max. feeding size (mm) Feed opening (mm) Discharging size (mm) Capacity (t/h) Power (kW)
Closed side Open side
H700 Short head type Fine 180 51 105 6-16 315-475 450
Medium 180 95 133 10-19 410-590 450
Coarse 180 127 178 13-25 525-695 450
Extra coarse 180 152 203 16-25 588-756 450
Standard type Fine 400 253 278 19-38 565-840 450
Medium 400 303 334 25-51 705-1160 450
Coarse 400 334 369 31-89 910-1450 450
Extra coarse 400 425 460 60-130 1000-1550 450
H900 Short head type Fine 200 60 120 10-16 560-670 710
Medium 200 100 150 13-19 670-810 710
Coarse 200 130 190 16-22 770-1000 710
Extra coarse 200 160 220 19-25 920-1190 710
Standard type Fine 450 245 330 45-250 700-1200 710
Medium 450 280 375 60-250 1050-1900 710
Coarse 450 380 465 70-250 1300-2500 710
Extra coarse 450 460 495 80-250 1500-2600 710

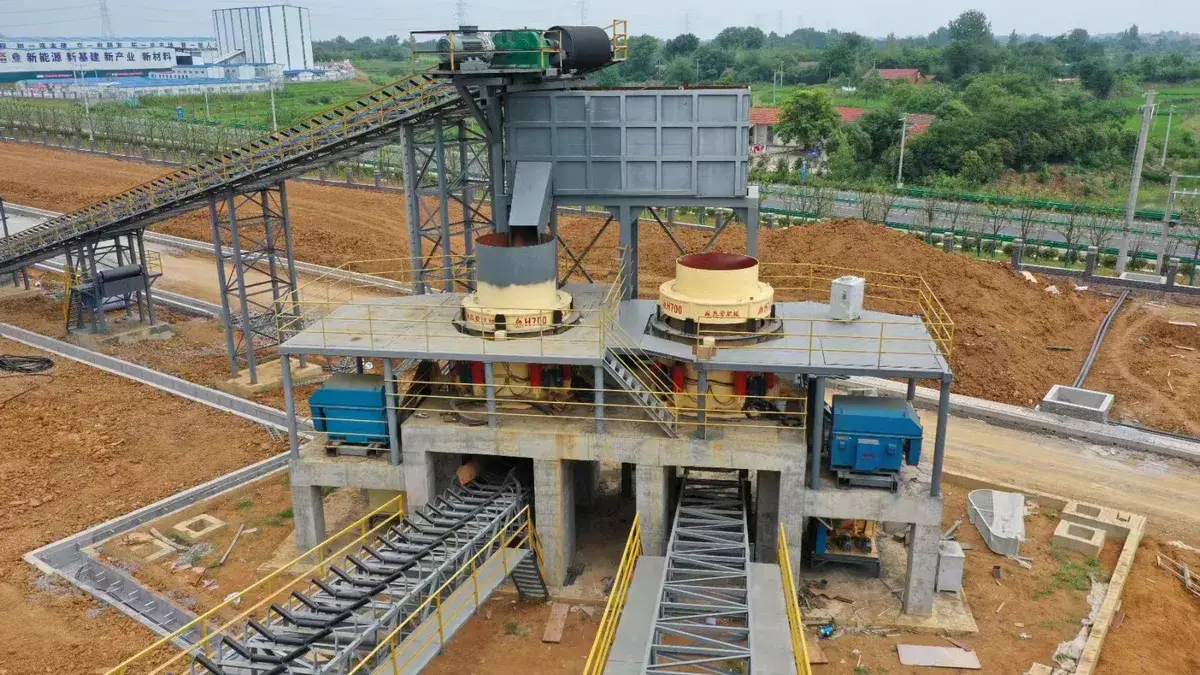

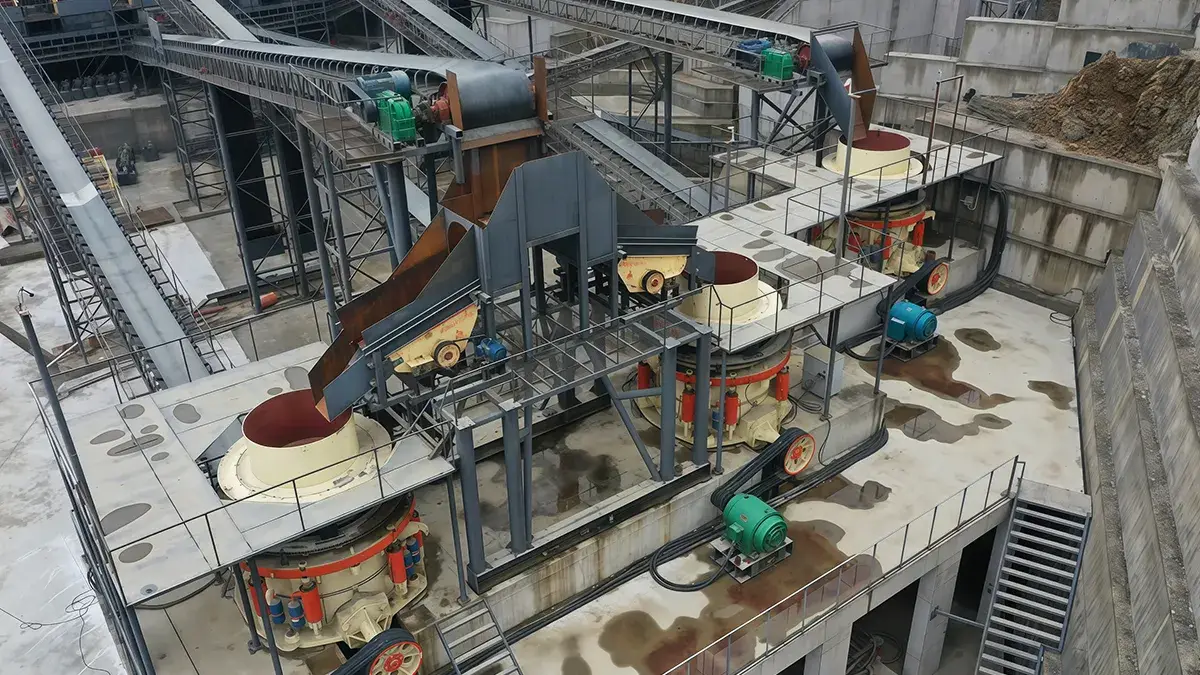

Projects

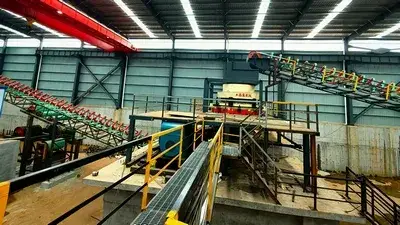

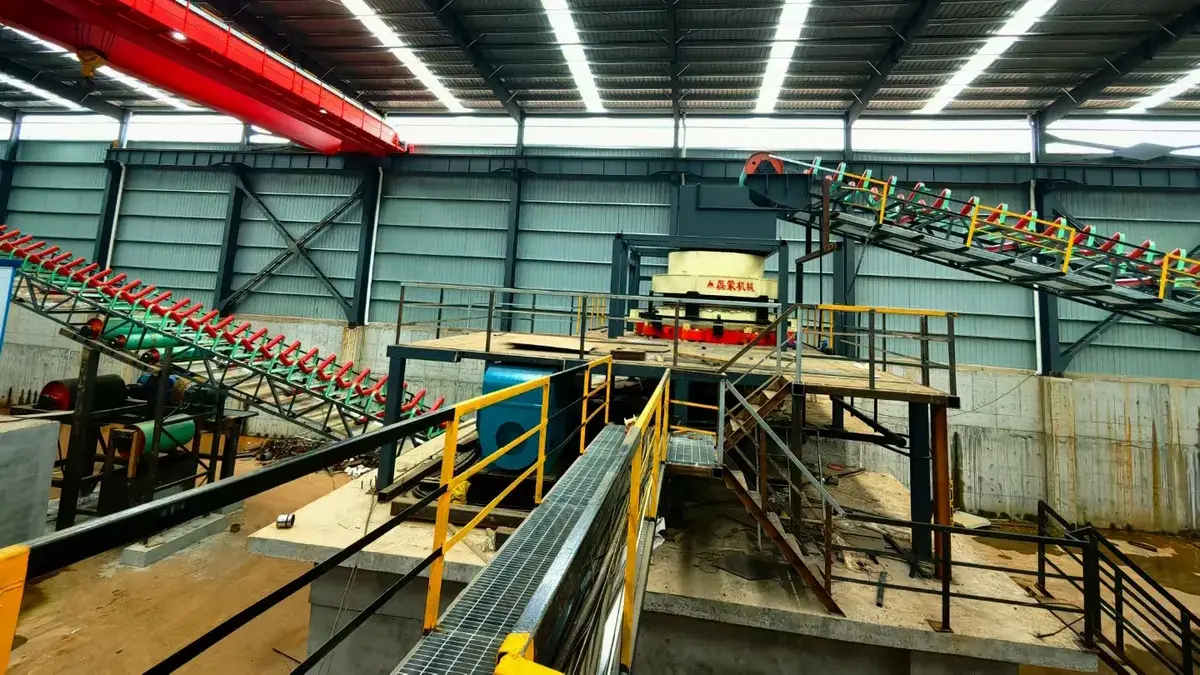

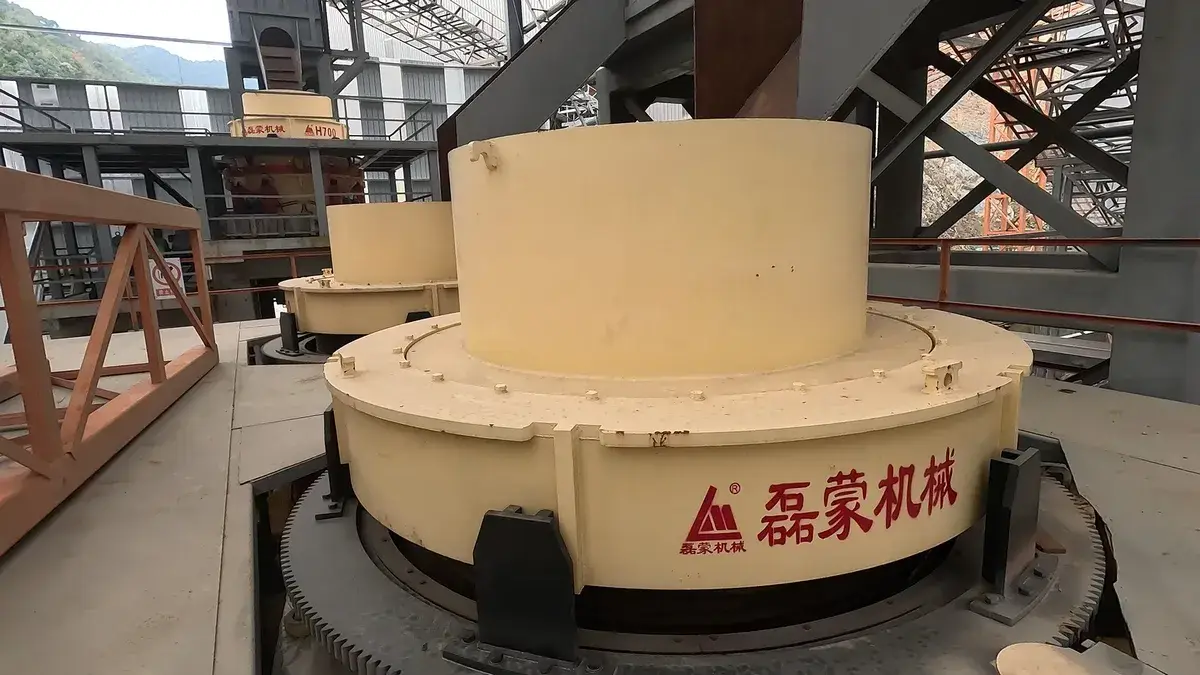

Aggregate Plant Project in Hengyang, Hunan (7.5 million tons per year)Aggregate Plant Project in Hengyang, Hunan (7.5 million tons per year)

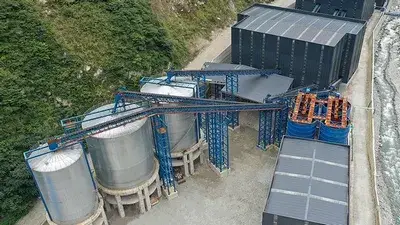

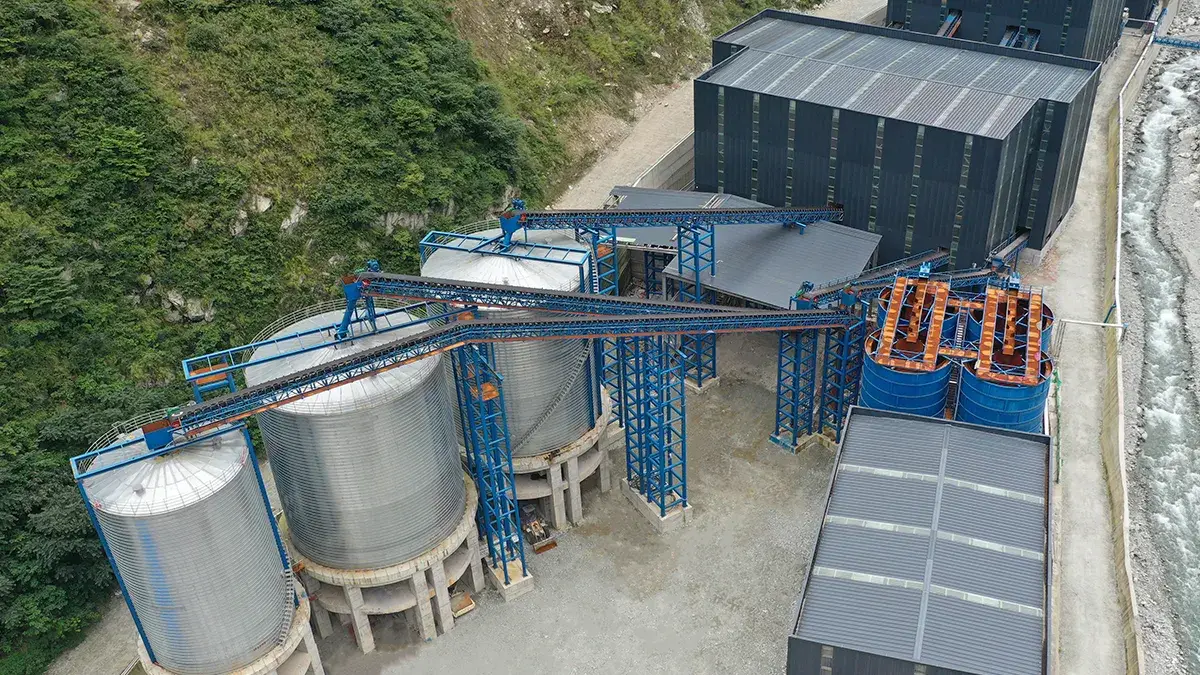

EPC Aggregate Plant Project in Wenchuan, SichuanEPC Aggregate Plant Project in Wenchuan, Sichuan
