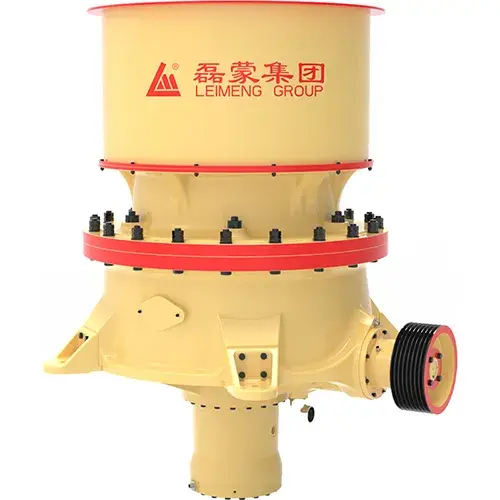

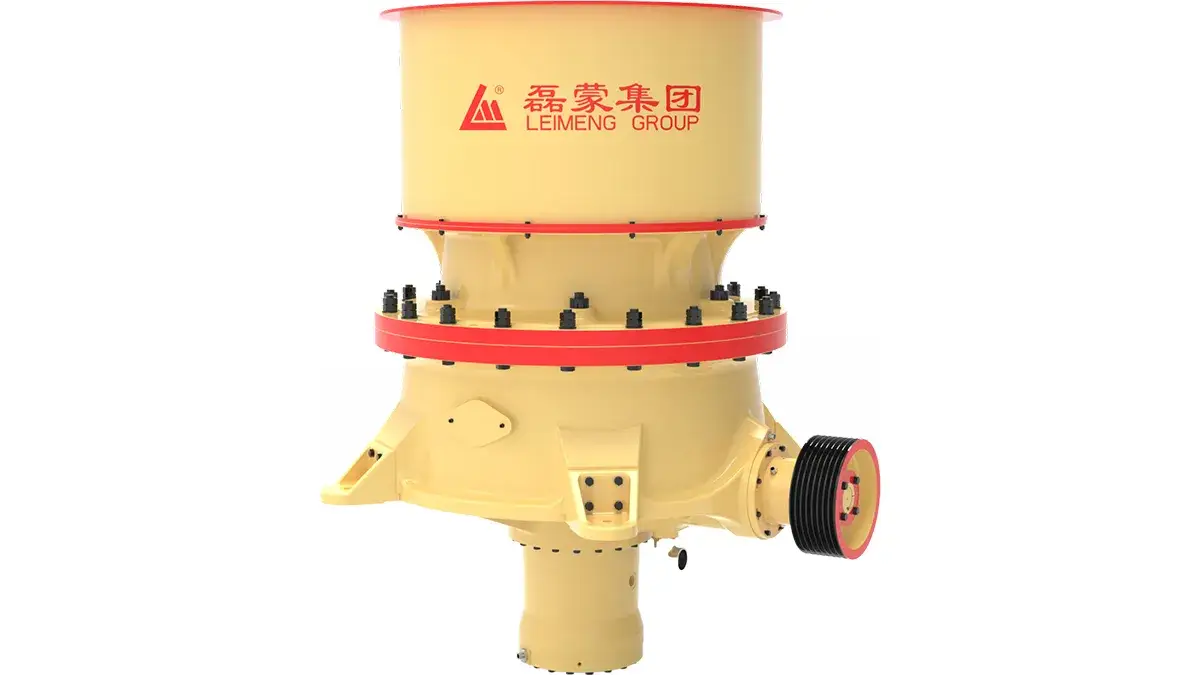

DH/DS Series Symons Cone Crusher

(Single-Cylinder)

The single-cylinder symons cone crusher features overload automatic uncrushable material release, automatic chamber clearing, and an intelligent control system that enables automatic adjustment of the discharge opening, with real-time display of working status and fault warnings. It is suitable for crushing raw materials in industries such as metallurgy, construction, road building, chemicals, and silicates, and can crush various ores and rocks of medium and above medium hardness.

Request a Quote
Applicable Materials
  • Metal Ores
  • Non-Metal Ores
Features
  • Optimized overall machine design with a large-diameter, high-strength main shaft and a heavy-duty main frame, ensuring excellent rigidity and long service life.
  • Heavy-duty rolling bearings replace traditional bronze bushings, reducing assembly clearance and increasing main shaft swing speed, resulting in higher output and improved particle shape.
  • Hydraulic control system enables easy discharge opening adjustment and provides more reliable overload protection.
  • Stroke can be adjusted according to material characteristics, allowing the crusher to adapt to different crushing requirements.
  • Advanced automatic control system improves product quality while maintaining maximum crushing efficiency within safe operating limits.
  • Application of the “laminated crushing” principle, combined with optional speed settings, steep-angle chambers, and double-curved crushing chamber designs, ensures uniform and consistent product particle shape.
  • The upper frame is divided into a main arm frame and a mantle support seat, allowing independent maintenance in case of damage and reducing maintenance costs.
  • Spiral bevel gear transmission increases load-bearing capacity and ensures smoother, more stable operation.

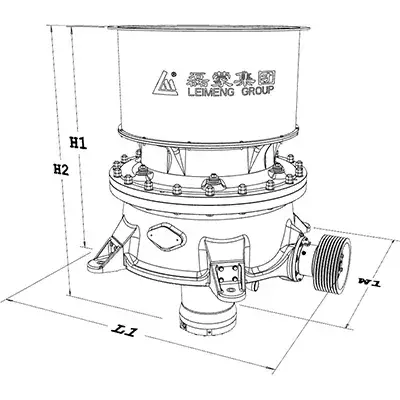

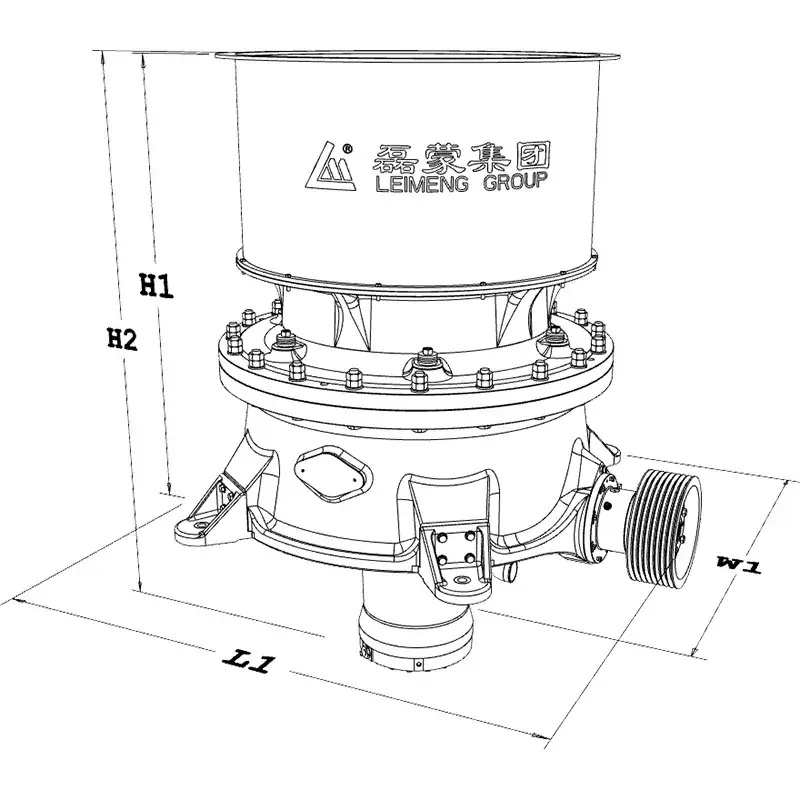

Dimensions
Model Length L1 (mm) Width W1 (mm) Height H1 (mm)
DH280 1500 1300 2460
DH380 1935 1860 2630
DH480 2484 2150 3230
DH680 2700 2450 3560
DH780 3394 2870 4625
DH980 3621 3100 5280
DS280 1500 1300 2820
DS380 1935 1860 3130
DS480 2484 2150 3750
DS680 3394 2450 4750
DS780 3520 2870 5900
Dimensions
Technical Parameters
Model Max. feeding size (mm) Discharging size (mm) Capacity (t/h) Power (kW)
DH280 135 4-32 27-128 90
DH380 185 6-38 48-208 132
DH480 215 8-44 90-395 220
DH680 275 13-51 192-662 315
DH780 300 10-70 280-1512 560
DH980 370 16-70 368-2600 750
DS280 240 19-38 70-168 90
DS380 360 19-54 91-344 132
DS480 450 25-54 195-601 250
DS680 560 38-83 318-1050 355
DS780 600 60-120 1200-2000 630
Projects

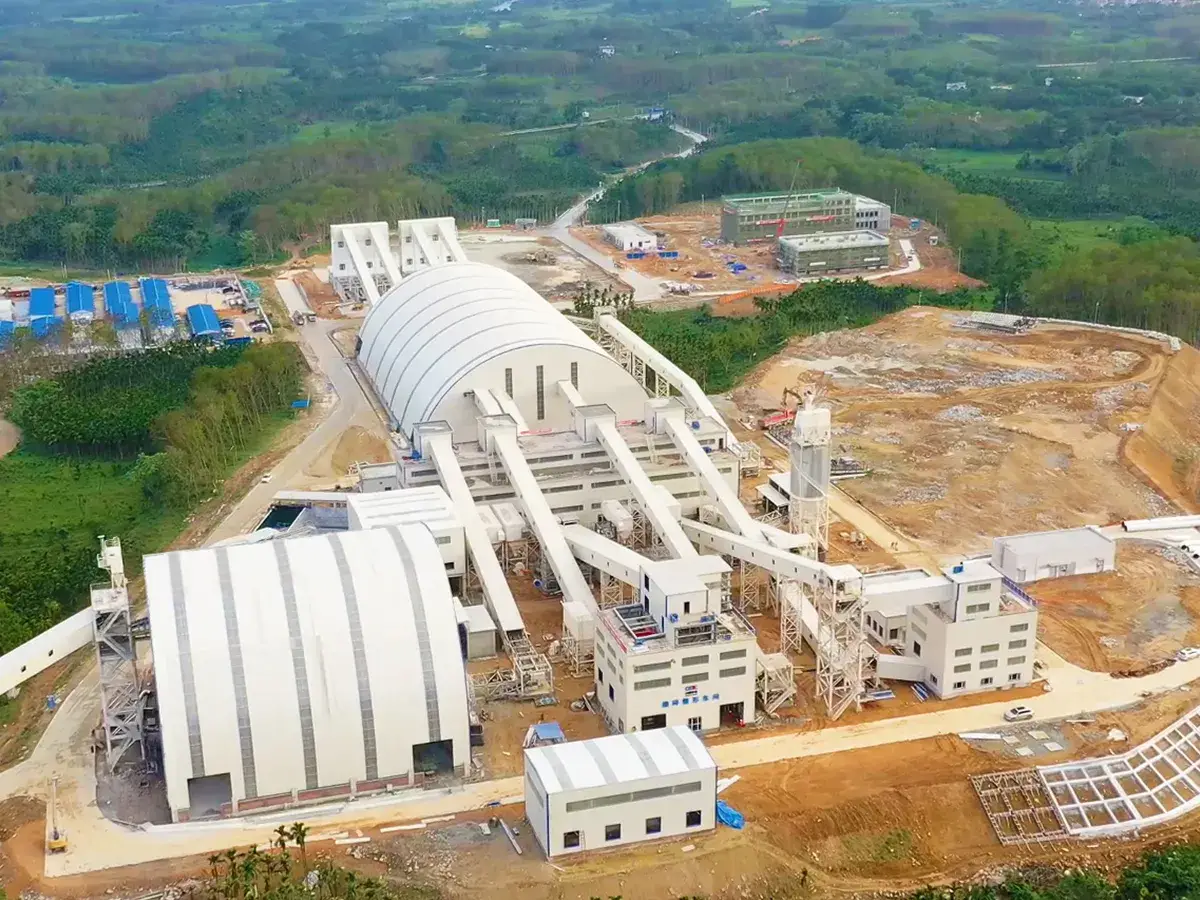

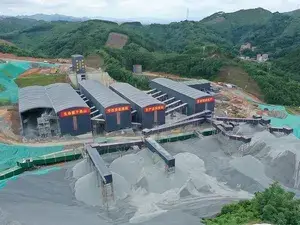

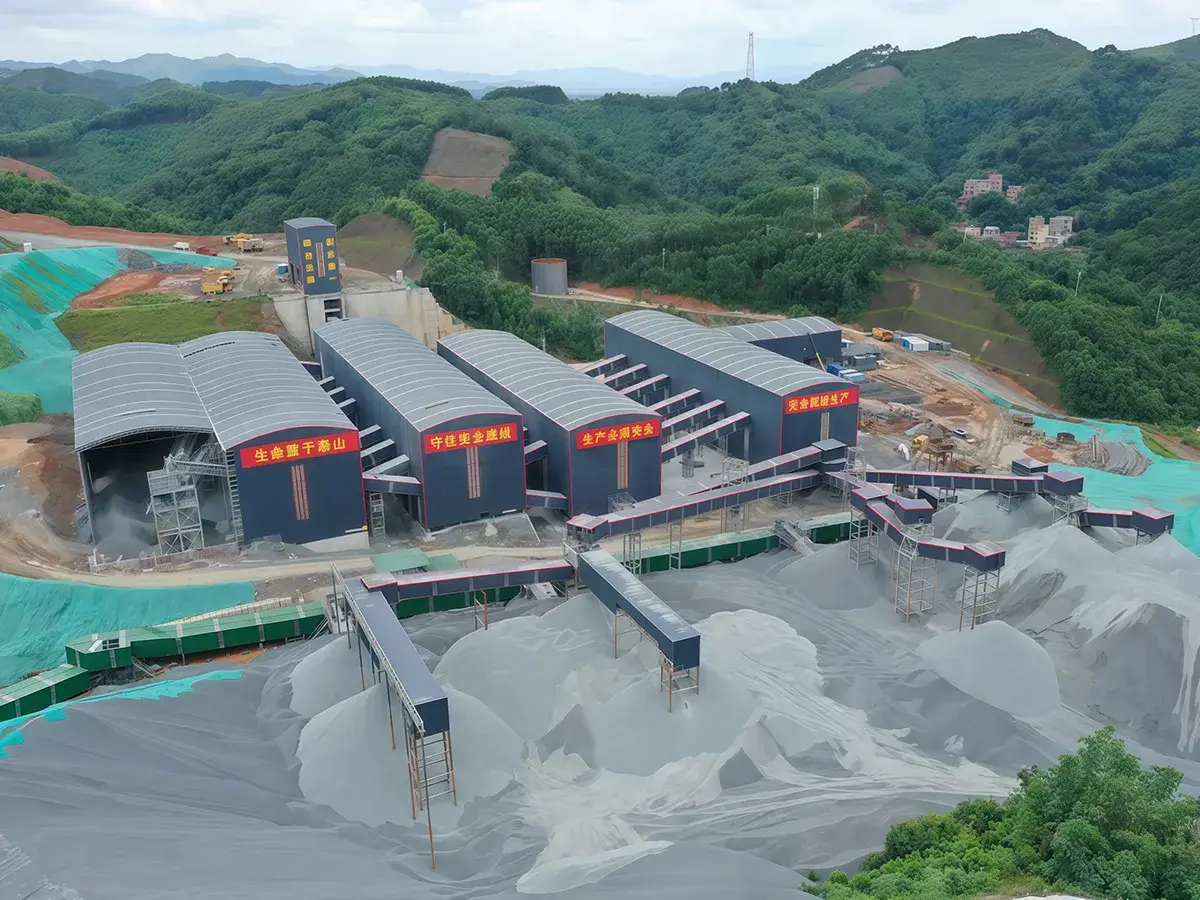

Aggregate Plant Project of Wuzhou City Construction Investment Group in Guangxi (15 million tons per year)Aggregate Plant Project of Wuzhou City Construction Investment Group in Guangxi (15 million tons per year)

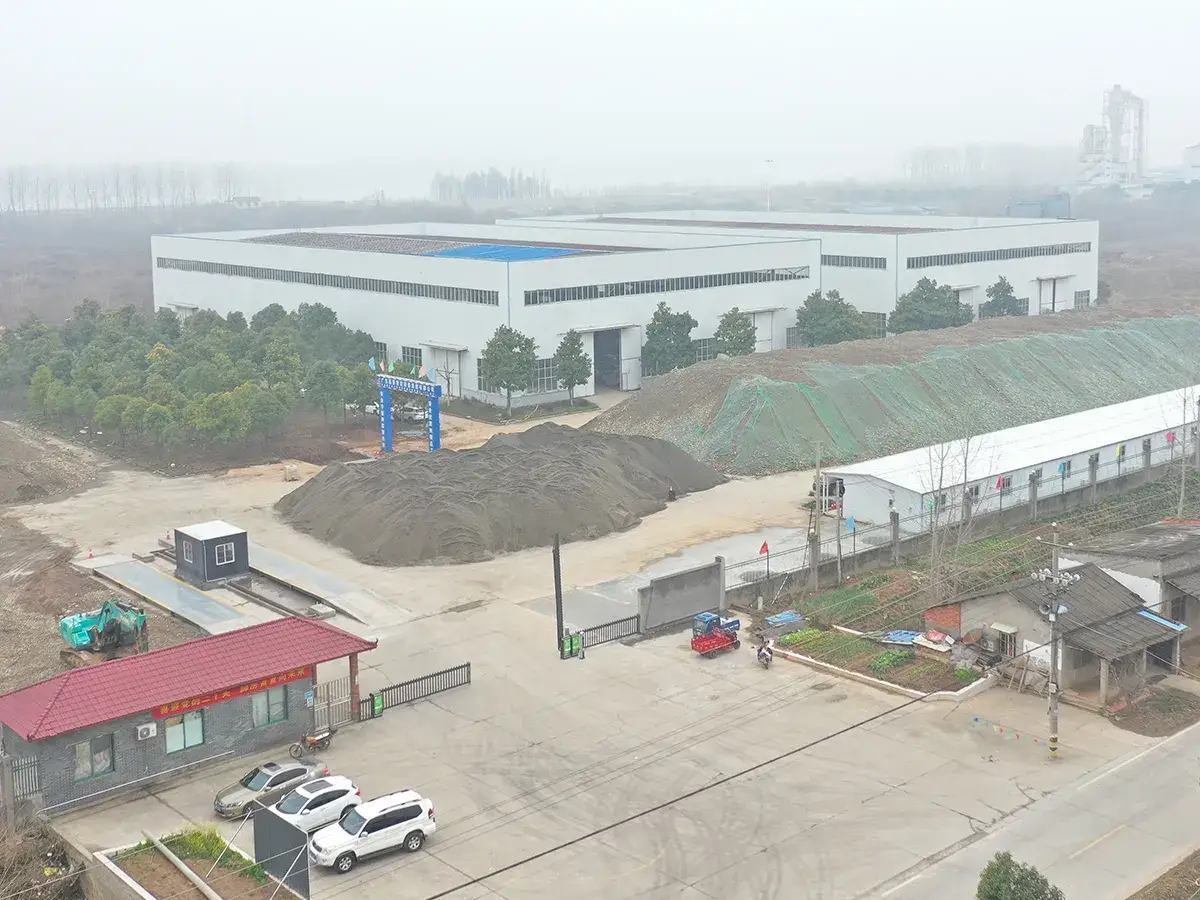

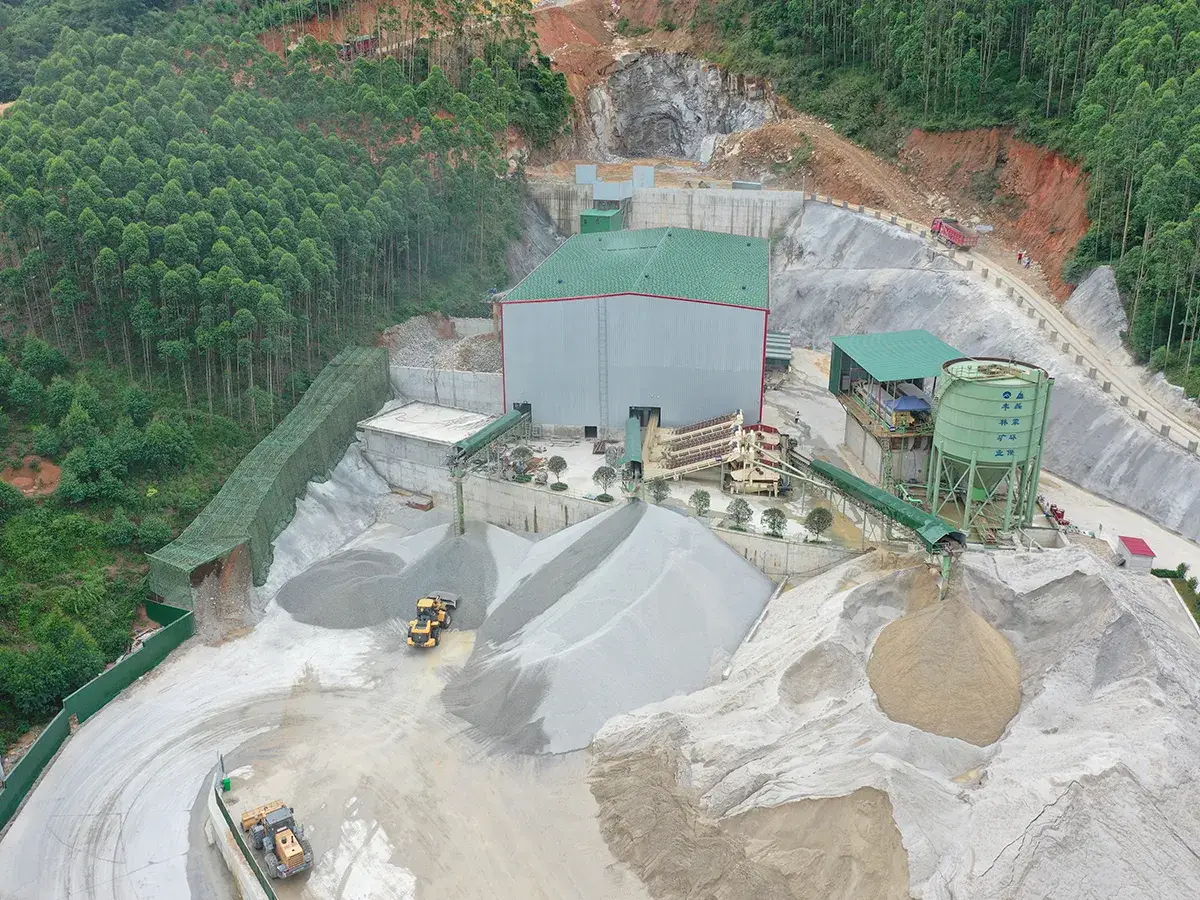

Aggregate Plant Project of Fenglin Mining Company in GuangxiAggregate Plant Project of Fenglin Mining Company in Guangxi
