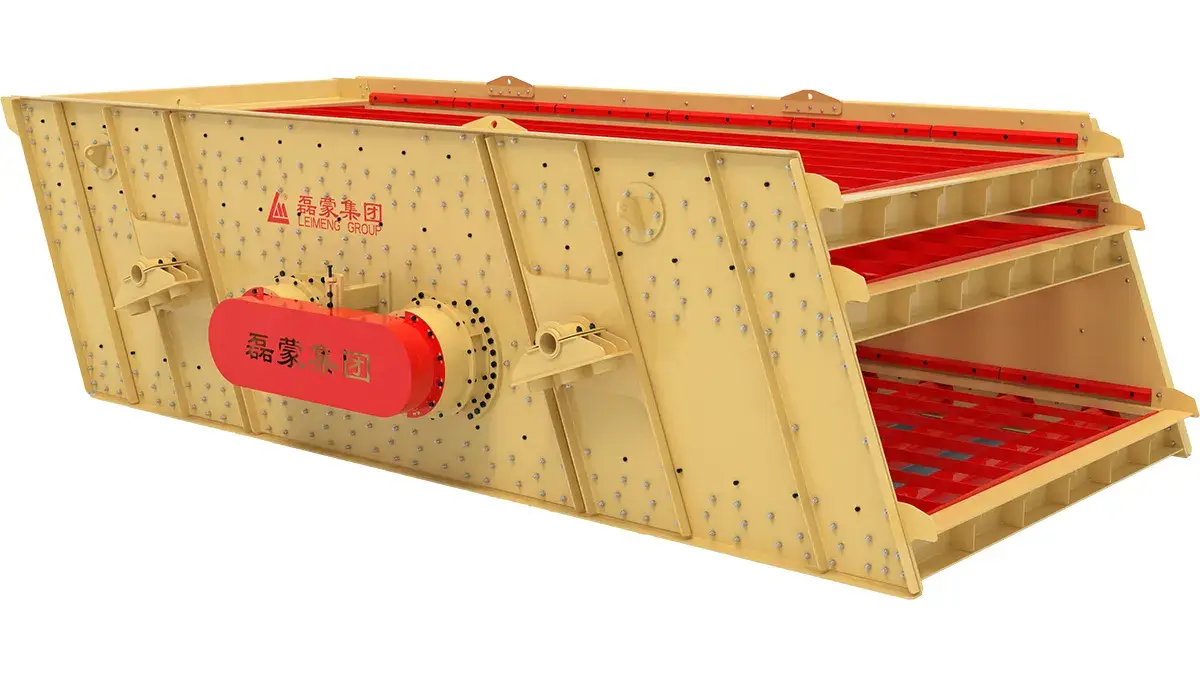

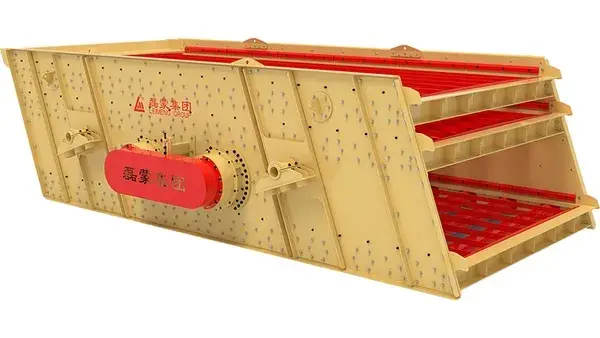

YKJ Series Vibrating Screen

(Circular Motion)

This series of vibrating screens features a circular motion trajectory and is specifically designed for aggregate production lines. It can also be used for product classification in coal preparation, mineral processing, building materials, power generation, and chemical industries.

Request a Quote
Applicable Materials
  • Metal Ores
  • Non-Metal Ores

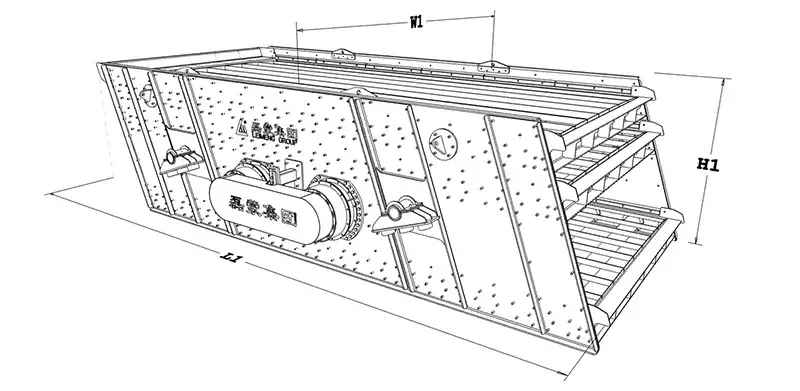

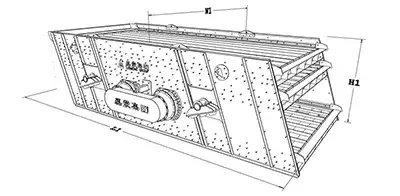

Dimensions
Model Length L1 (mm) Width W1 (mm) Height H1 (mm)
2YKJ1860 6780 2520 1450
3YKJ1860 6780 2520 1850
2YKJ2060 6780 2720 1450
3YKJ2060 6780 2720 1450
2YKJ2260Z 7045 2950 1775
2YKJ2460 6780 2920 1450
3YKJ2460 6780 2920 1950
2YKJ2070 6780 2730 1670
3YKJ2070 8065 2730 1940
2YKJ2270 7970 2930 1670
3YKJ2270 8065 2930 1940
2YKJ2570 7970 3230 1670
3YKJ2570 8065 3230 1940
2YKJ2665B 7560 3565 1845
3YKJ2665B 7560 3565 2250
2YKJ3070A 8030 3900 1666
3YKJ3070A 8230 3900 2170
3YKJ3075A 8700 3970 2080
2YKJ3675B 8545 4830 1940
3YKJ3675B 8725 4830 2430
2YKJ3680B 9045 4830 1940
3YKJ3680B 9225 4830 2430
3YKJ40100B 11450 5350 2550
Dimensions
Technical Parameters
Model Screen layers Screen size (mm) Max. feeding size (mm) Spindle speed (r/min) Double amplitude (mm) Installation inclination (°) Capacity (t/h) Power (kW) Installation dimensions (mm)
2YKJ1860 2 1800×6000 250 820 8-10 20 50-300 18.5 6060×2520×3550
3YKJ1860 3 1800×6000 250 820 8-10 20 50-300 22 6060×2520×3980
2YKJ2060 2 2000×6000 250 820 8-10 20 100-400 18.5 6060×2720×3550
3YKJ2060 3 2000×6000 250 820 8-10 20 100-400 22 6060×2720×3980
2YKJ2260Z 2 2200×6000 400 820 8-10 24 400-800 30 5890×2930×4450
2YKJ2460 2 2400×6000 300 820 8-10 20 150-600 22 6060×3120×3650
3YKJ2460 3 2400×6000 300 820 8-10 20 150-600 30 6060×3120×4080
2YKJ2070 2 2000×7000 300 820 8-10 23 200-480 22 6880×2760×4390
3YKJ2070 3 2000×7000 300 820 8-10 23 200-480 30 6880×2760×4820
2YKJ2270 2 2200×7000 300 820 8-10 23 200-550 22 6880×2960×4390
3YKJ2270 3 2200×7000 300 820 8-10 23 200-550 30 6880×2960×4820
2YKJ2570 2 2500×7000 300 820 8-10 23 250-650 30 6880×3260×4390
3YKJ2570 3 2500×7000 300 820 8-10 23 250-650 37 6880×3260×4820
2YKJ2665B 2 2600×6500 300 820 8-10 23 280-680 30 6416×4288×3556
3YKJ2665B 3 2600×6500 300 820 8-10 23 280-680 37 6414×4288×4133
2YKJ3070A 2 3000×7000 300 820 8-10 23 300-800 22×2 6880×3760×4390
3YKJ3070A 3 3000×7000 300 820 8-10 23 300-800 30×2 6880×3760×4820
3YKJ3075A 3 3000×7500 300 820 8-10 23 300-800 30×2 7345×4830×5200
2YKJ3675B 2 3600×7500 300 820 8-10 20 700-1000 37×2 7500×4830×4620
3YKJ3675B 3 3600×7500 300 820 8-10 20 700-1000 45×2 7510×4830×5110
2YKJ3680B 2 3600×8000 300 820 8-10 20 800-1100 37×2 9051×4822×4785
3YKJ3680B 3 3600×8000 300 820 8-10 20 800-1100 45×2 9052×4822×5306
3YKJ40100B 3 4000×10000 300 820 8-10 23 1200-1800 45×3 9700×6310×5720

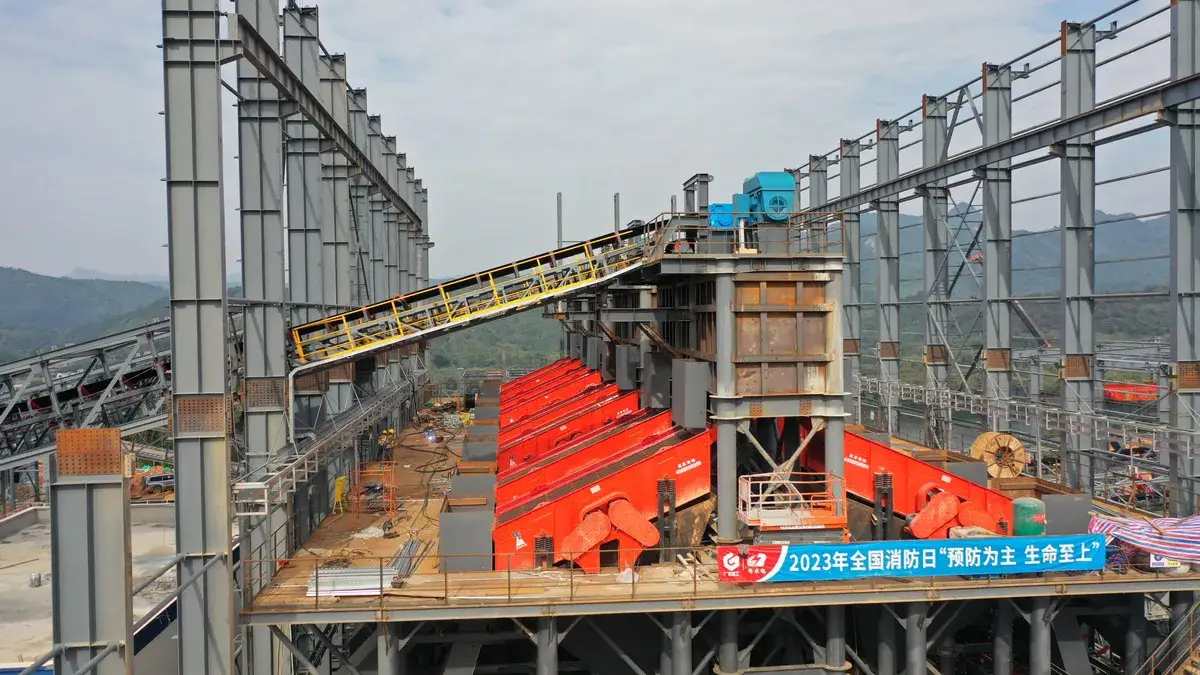

Projects

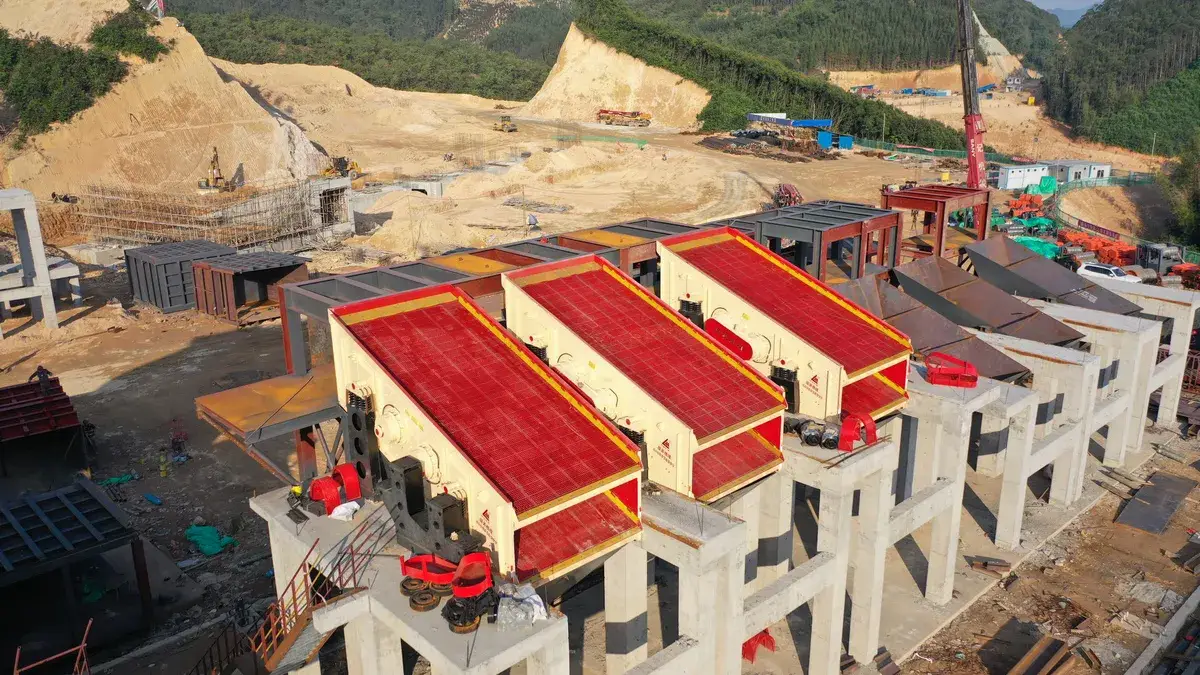

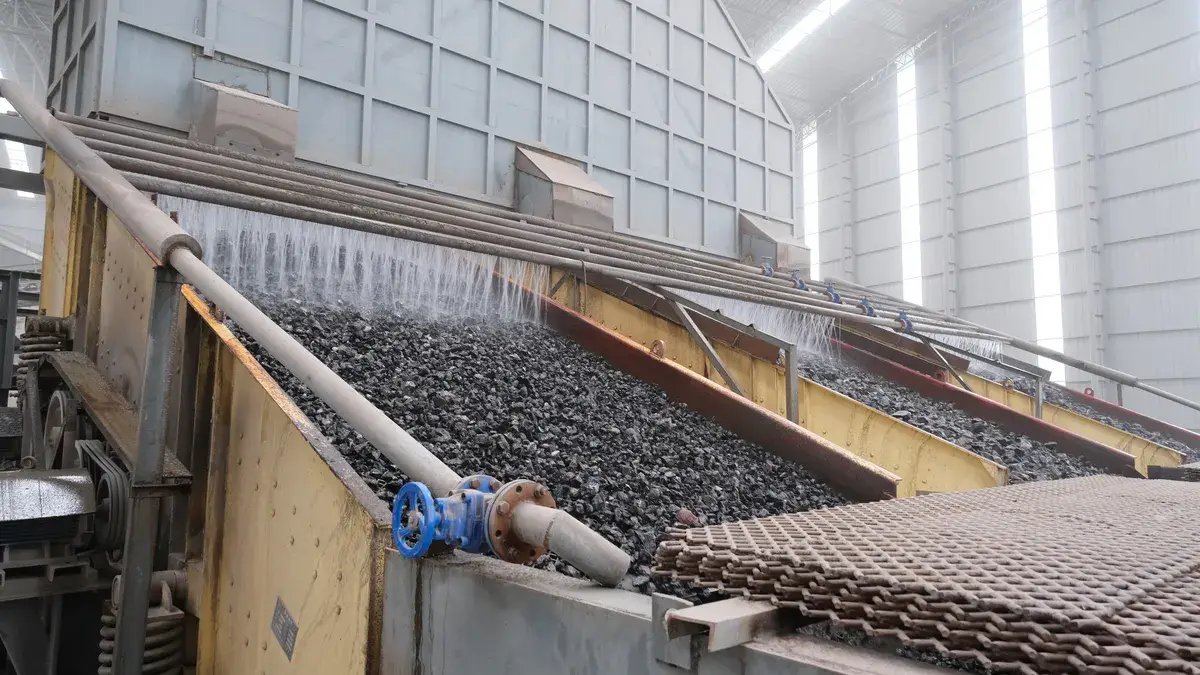

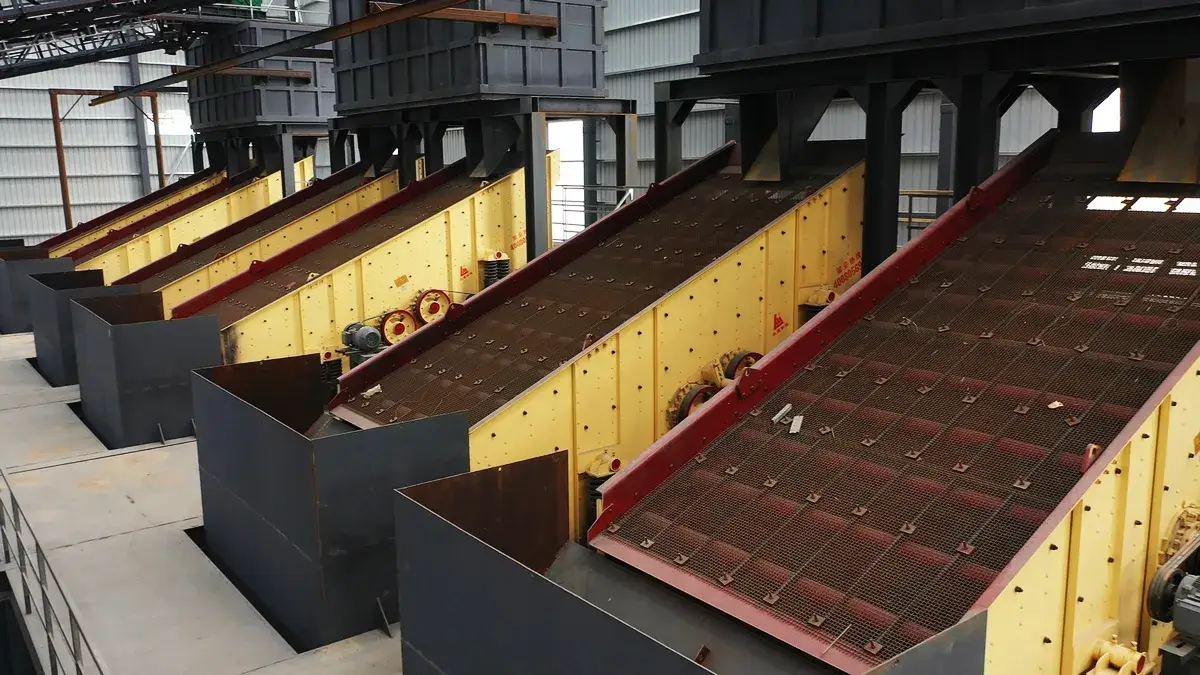

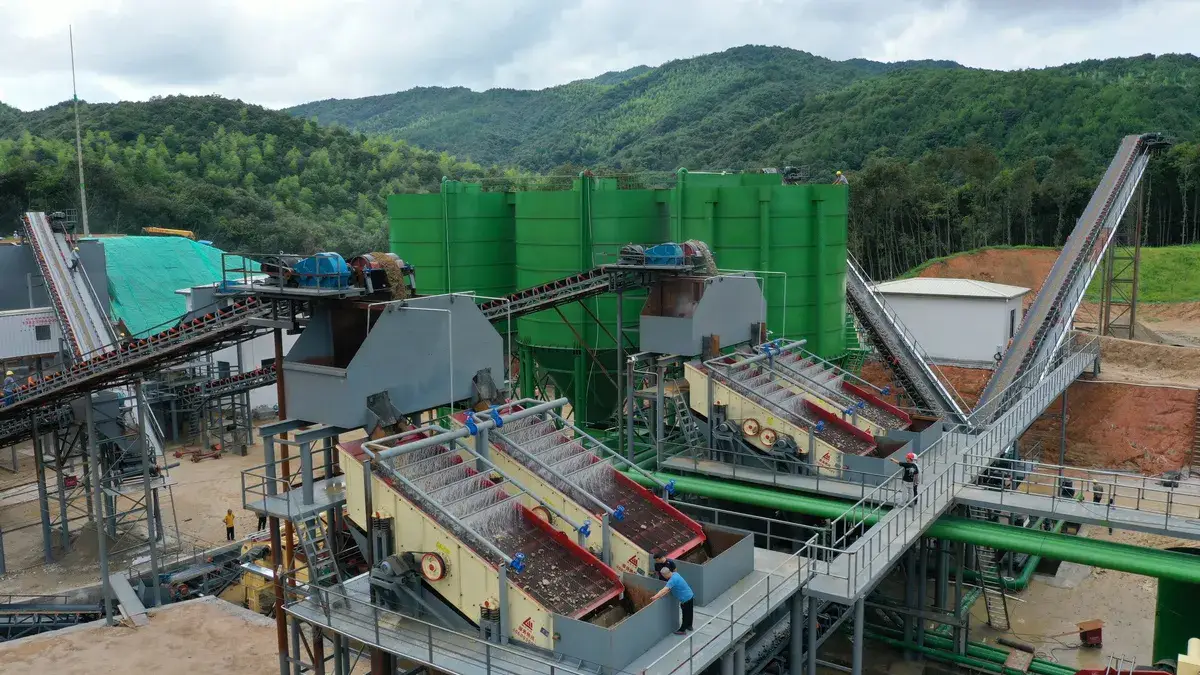

Vibrating Screen used in Aggregate Project of Hongsheng in Qingyuan, GuangdongVibrating Screen used in Aggregate Project of Hongsheng in Qingyuan, Guangdong

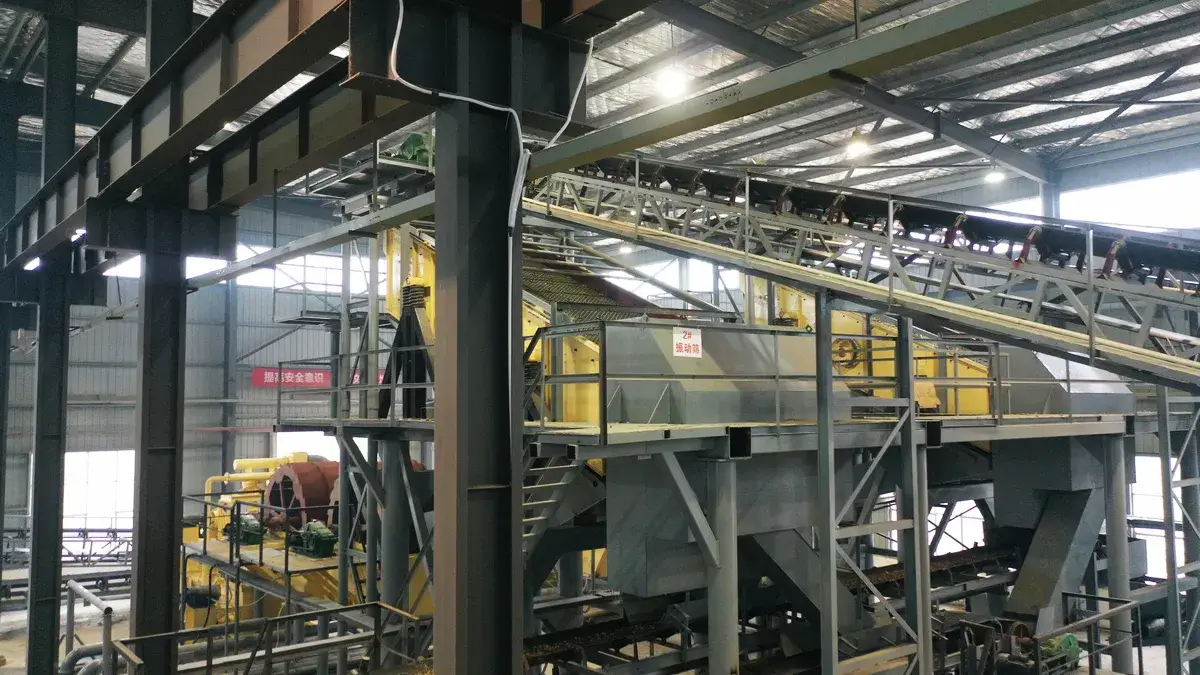

Vibrating Screen used in Aggregate Project in Yinkeng, Qingyuan, GuangdongVibrating Screen used in Aggregate Project in Yinkeng, Qingyuan, Guangdong
Vibrating Screen used in Wuzhou City Investment (Huaqun)’s Project in GuangxiVibrating Screen used in Wuzhou City Investment (Huaqun)’s Project in Guangxi
Vibrating Screen used in Changtou Jinrunyuan’s Project in Zhijiang, HubeiVibrating Screen used in Changtou Jinrunyuan’s Project in Zhijiang, Hubei
Vibrating Screen used in Jintai Mining’s Project in JiangxiVibrating Screen used in Jintai Mining’s Project in Jiangxi
Vibrating Screen used in Tianjing Calcium Company’s ProjectVibrating Screen used in Tianjing Calcium Company’s Project
