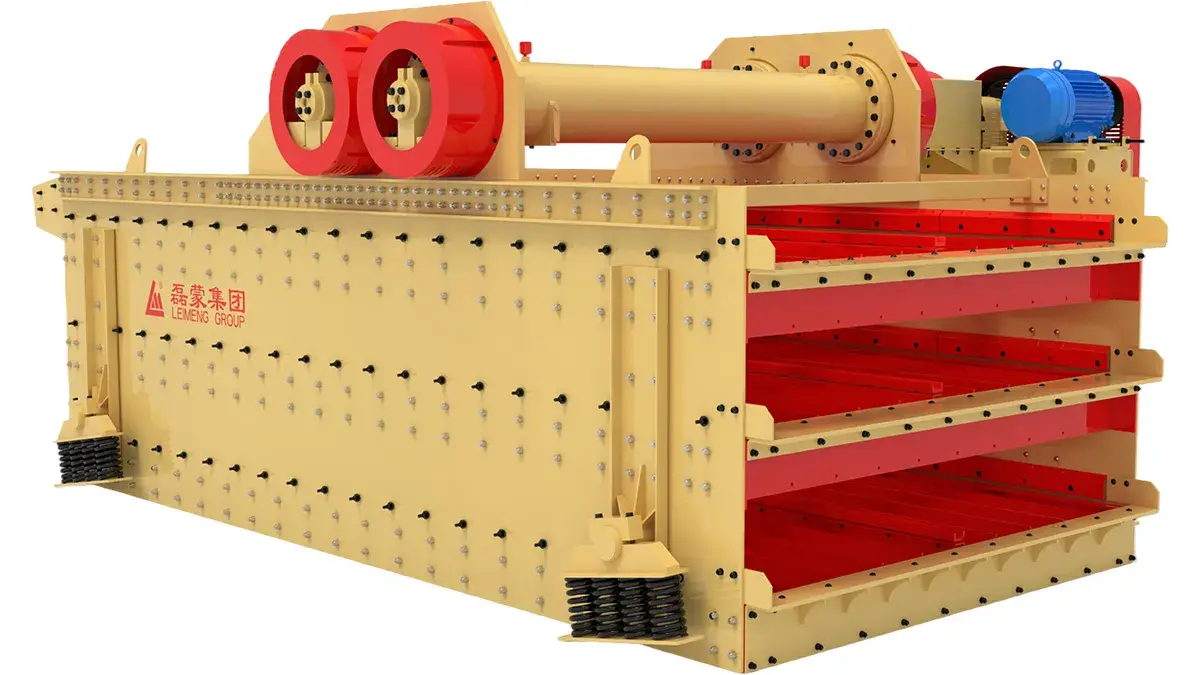

DTS Series Vibrating Screen
(Double-Shaft Elliptical Motion)
This vibration screen features a novel structure of double-shaft elliptical motion and simple maintenance. The screen box and exciters are made of high-tensile alloy steel plates, offering several times the strength of ordinary steel plates. As a result, the equipment operates reliably, minimizes overall downtime, and maintains operation at an optimal level.
Its robust structure is well suited for screening high-capacity materials while maintaining stable and efficient performance. The top-mounted exciter design facilitates easier maintenance and replacement of components.
Applicable Materials
- Metal Ores
- Non-Metal Ores

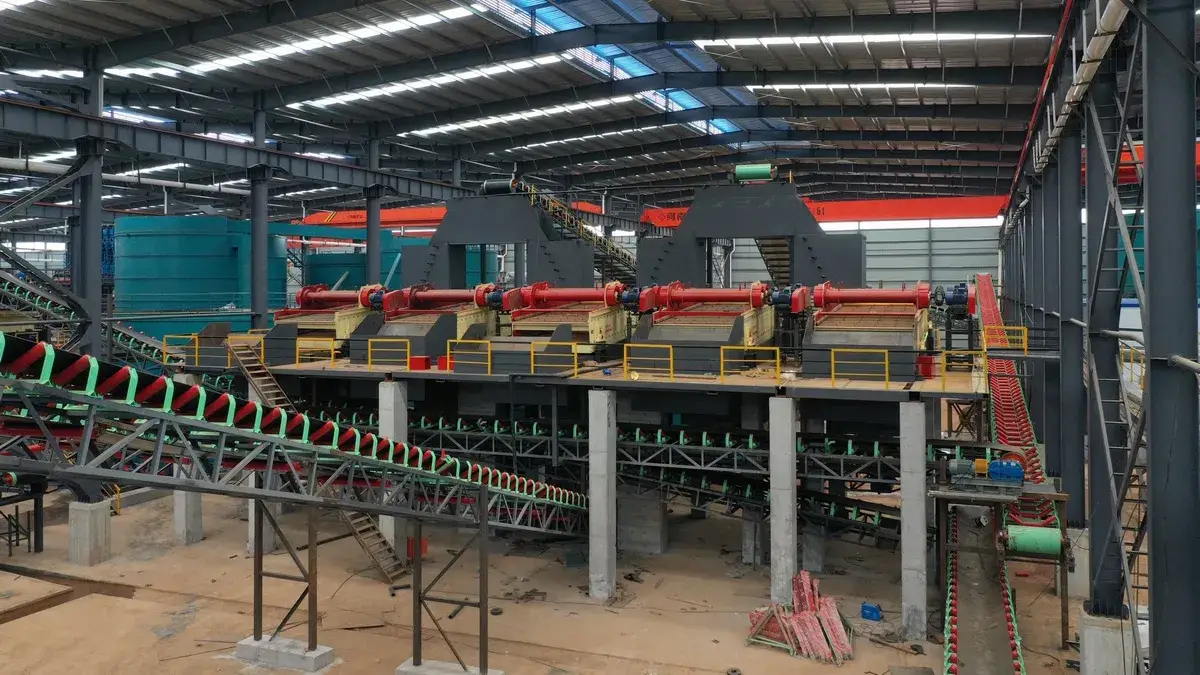

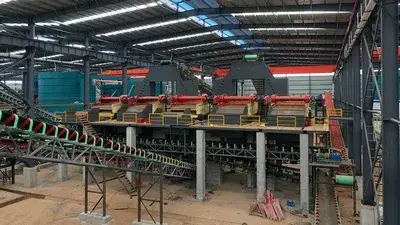

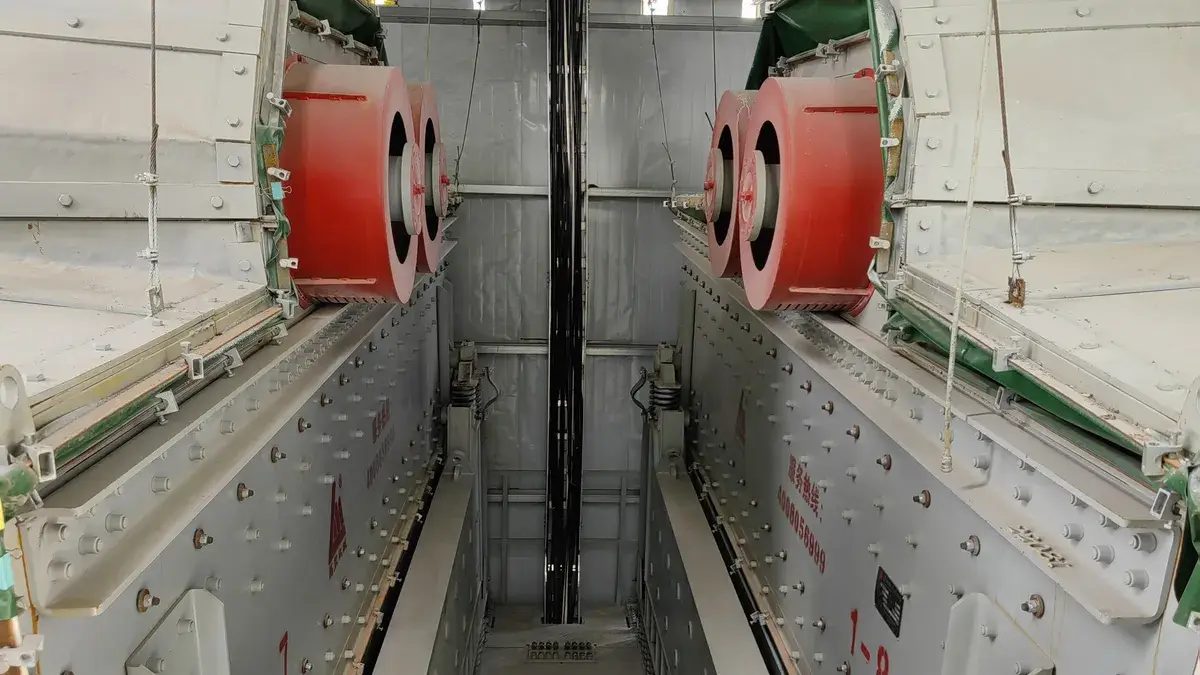

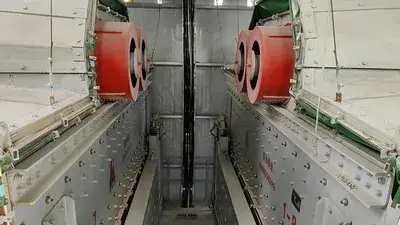

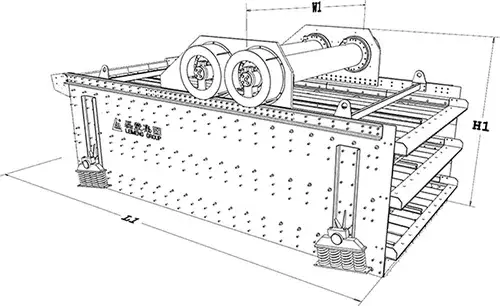

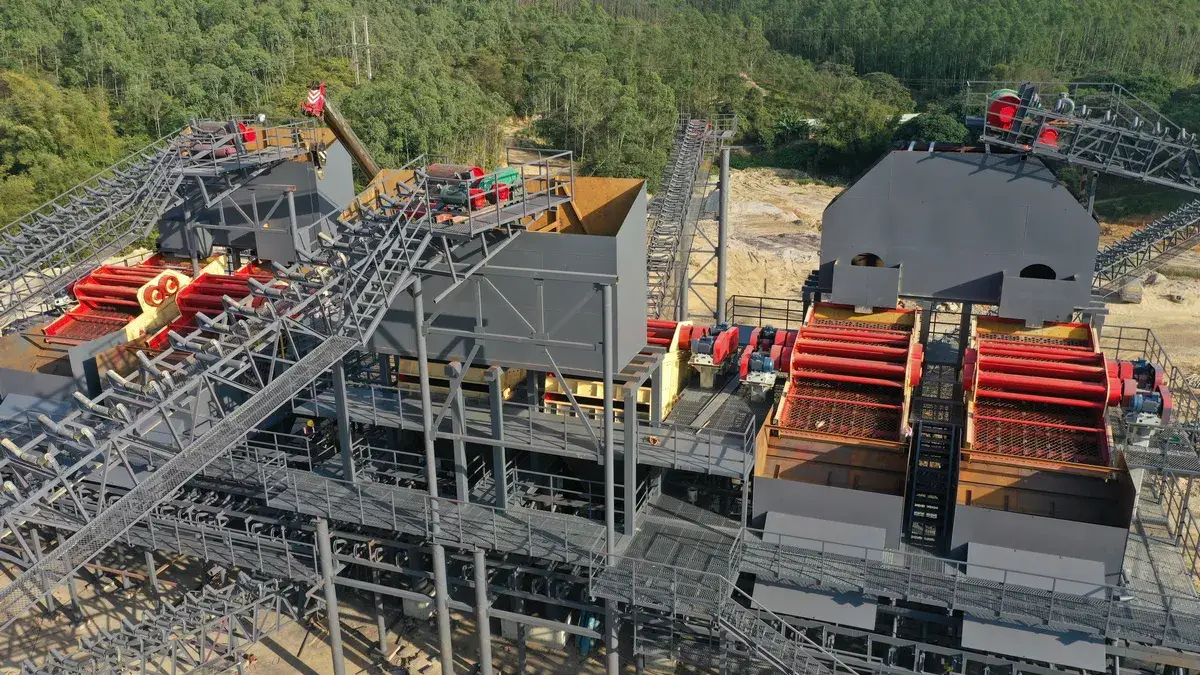

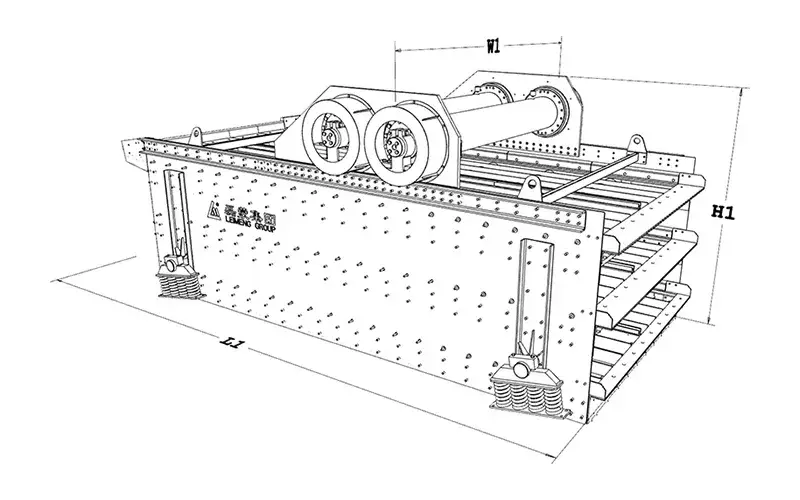

Dimensions
| Model | Length L1 (mm) | Width W1 (mm) | Height H1 (mm) |
| |
6850 | 2810 | 1920 |
| |
6850 | 3110 | 1920 |
| |
6850 | 3740 | 2305 |
| |
6850 | 3110 | 2640 |
| |
6850 | 3740 | 2895 |
Technical Parameters
| Model | Screen layers | Screen size (mm) | Max. feeding size (mm) | Spindle speed (r/min) | Double amplitude (mm) | Installation inclination (°) | Capacity (t/h) | Power (kW) |
| 2 | 2100×6000 | 260 | 820 | 11 | 0-5 | 440-650 | 22×2 | |
| 2 | 2400×6000 | 260 | 820 | 11 | 0-5 | 500-700 | 22×2 | |
| 2 | 3000×6000 | 260 | 840 | 11 | 0-5 | 600-800 | 37×2 | |
| 3 | 2400×6000 | 260 | 820 | 11 | 0-5 | 500-700 | 30×2 | |
| 3 | 3000×6000 | 260 | 840 | 11 | 0-5 | 600-800 | 45×2 |
