Efficient Sand Washing & Fine Sand Recovery Systems

High-purity cleaning and maximum fine sand retention for premium aggregate production
Screw Sand Washer

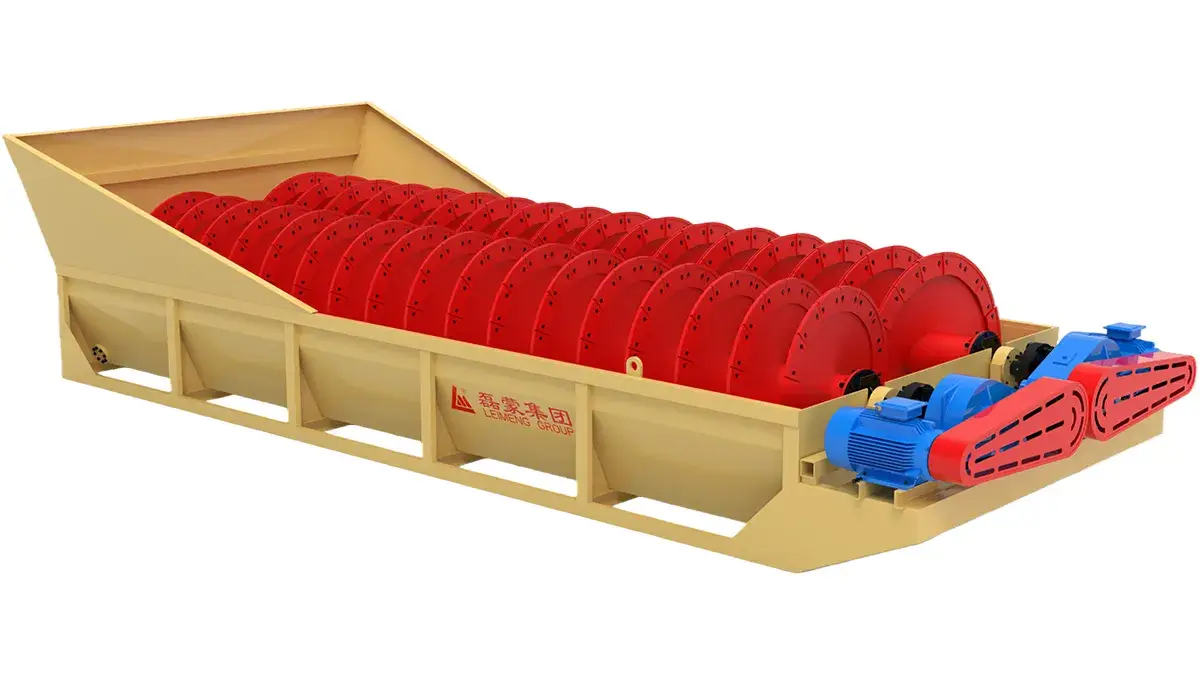

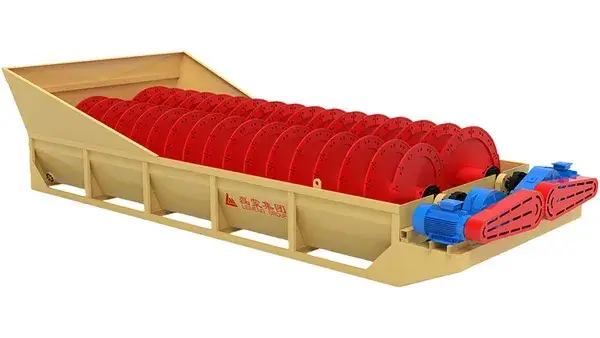

LSX Series Screw Sand Washer

Sand Screw Fine Material Washer & Screw Classifier

This screw sand washer is suitable for washing, classification, and impurity removal operations in industries such as metallurgy, building materials, and hydropower. It is used for washing both fine-grained and coarse-grained materials.

It is particularly suitable for sand and aggregates used in construction, highways, and railways. The sand washer features low power consumption and high washing efficiency.

With a well-sealed structure, fully enclosed transmission system, and adjustable weir plate, it ensures high efficiency, durability, excellent washing and dewatering performance, and stable retention of fine particles.

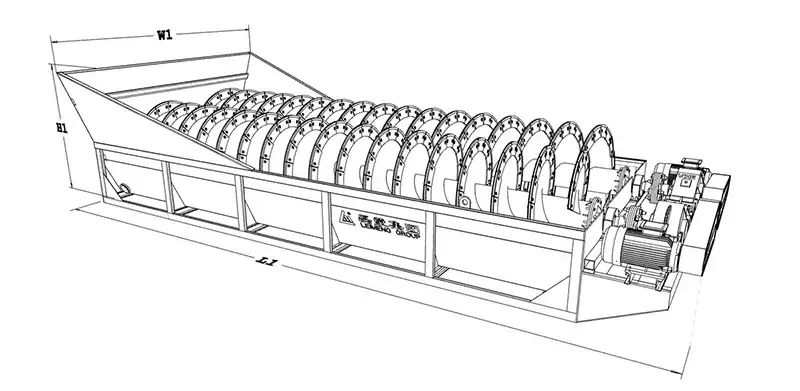

Dimensions
Dimensions
Model Length L1 (mm) Width W1 (mm) Height H1 (mm)
LSX1260 7300 2200 1800
LSX1270 8330 2400 1930
LSX1570 8330 2400 1930
LSX1580 8618 2700 2113
2LSX1270 8330 3660 1930
2LSX1580 8618 4000 2113
Technical Parameters
Model Screw diameter (mm) Tub length (mm) Feeding size (mm) Capacity (t/h) Water consumption (t/h) Power (kW)
LSX1260 1200 6000 ≤10 32-40 80-100 7.5
LSX1270 1200 7000 ≤10 32-40 80-100 75
LSX1570 1500 7000 ≤10 64-80 100-120 11
LSX1580 1500 8000 ≤10 64-80 100-120 11
2LSX1270 1200 7000 ≤10 128-160 180-200 11×2
2LSX1580 1500 8000 ≤10 160-192 200-220 15×2
