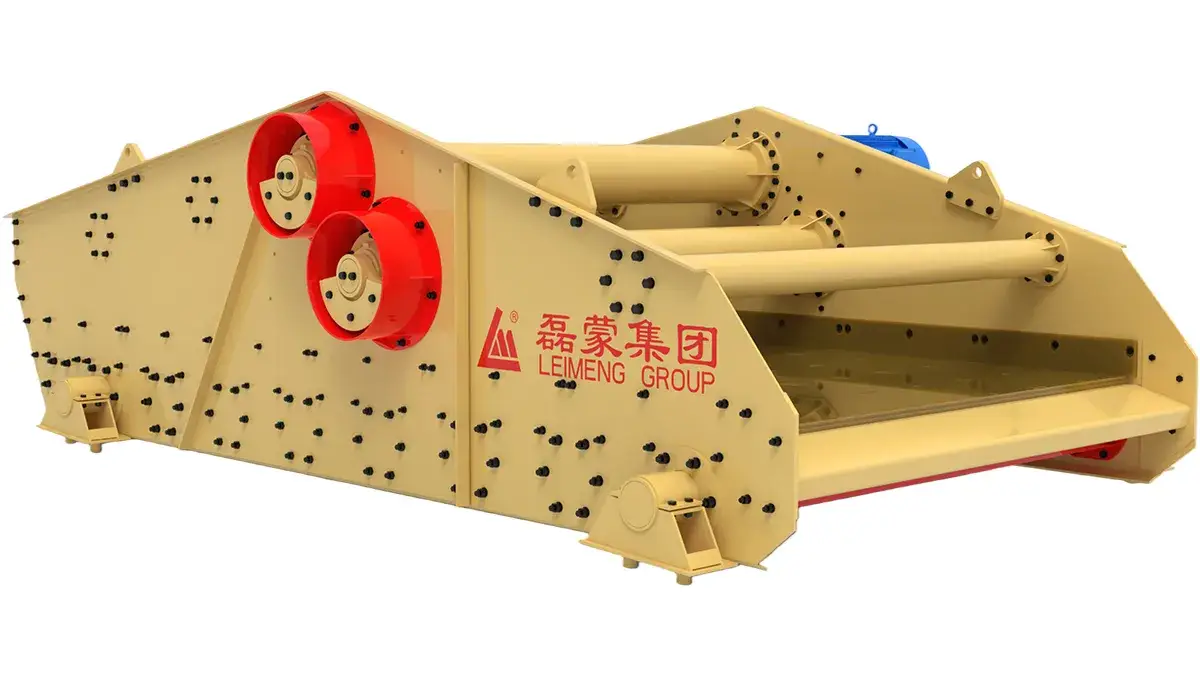

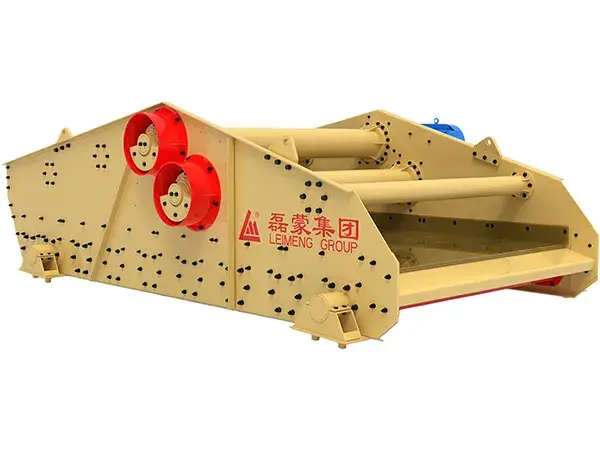

ZK/ZC Series Dewatering Screen
The dewatering screen is designed for dewatering, de-mediuming, and de-mudding of slurry materials. The screen box operates with an approximately linear motion trajectory.
The dewatering screen is available with two drive configurations: direct vibration motor drive for smaller units, and exciter drive powered by a standard electric motor through a coupling for larger units. Screen surfaces can be manufactured from stainless steel, nylon, or polyurethane, allowing selection based on actual operating conditions. Multiple installation options are supported, including seat-mounted, suspended, and combined suspended-seat configurations.

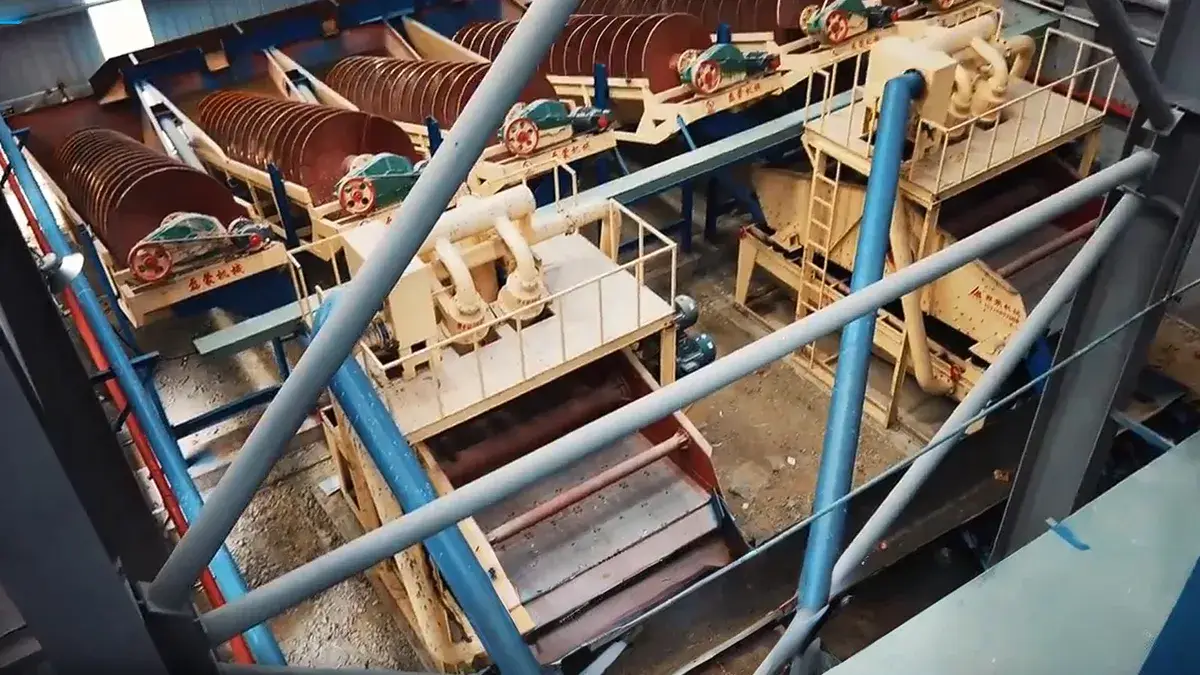

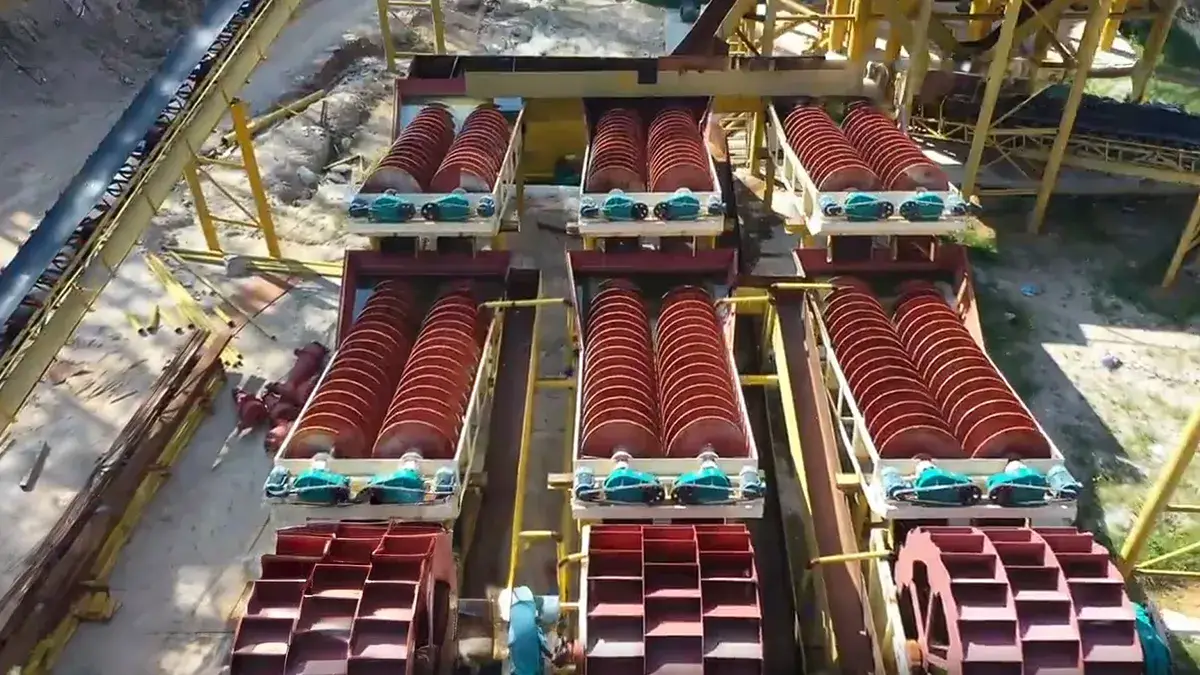

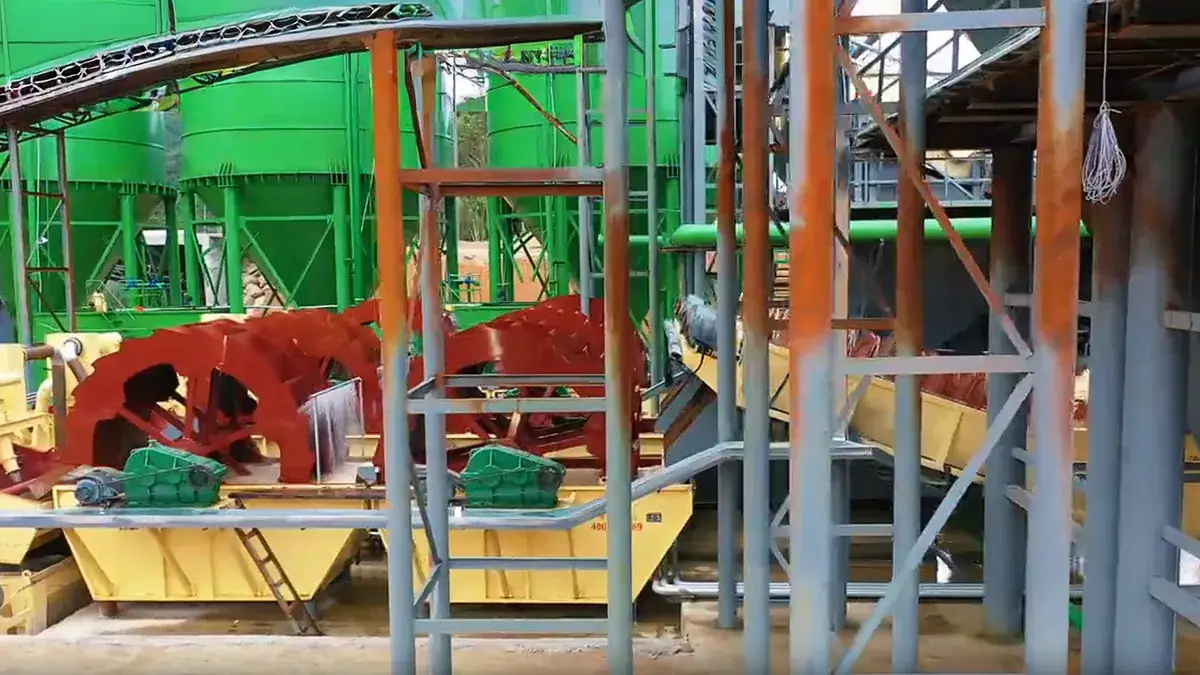

The dewatering screen is widely applied in tailings treatment, coal washing, water-washed quartz sand processing, slurry handling, and other processes requiring dewatering, de-mediuming, and de-mudding.
Based on dual-motor self-synchronization technology, the exciters drive the screen box to perform reciprocating linear motion, enabling efficient dewatering, de-mudding, and material classification.

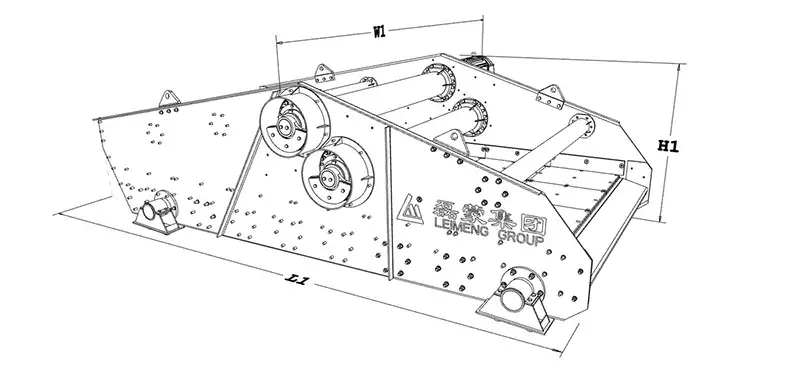

| Model | Length L1 (mm) | Width W1 (mm) | Height H1 (mm) |
| |
5145 | 3340 | 1840 |
| |
5145 | 3540 | 1840 |
| |
5145 | 3740 | 1840 |
| |
5145 | 3940 | 1840 |
| |
5845 | 3940 | 1840 |
| |
5845 | 4540 | 1840 |
| |
3645 | 3140 | 1840 |
| |
3645 | 3340 | 1840 |
| |
4445 | 3340 | 1840 |
| |
3645 | 3740 | 1840 |
| |
5145 | 4340 | 1840 |
| Model | Screen size (mm) | Capacity (t/h) | Power (kW) |
| 1800×4500 | 96-128 | 11×2 | |
| 2000×4500 | 112-160 | 15×2 | |
| 2200×4500 | 144-192 | 15×2 | |
| 2400×4500 | 152-208 | 18.5×2 | |
| 2400×5200 | 176-256 | 18.5×2 | |
| 3000×5250 | 216-320 | 22×2 | |
| 1200×3000 | 16-24 | 2.2×2 | |
| 1400×3000 | 24-32 | 3.0×2 | |
| 1400×3750 | 32-40 | 3.0×2 | |
| 1800×3000 | 48-72 | 3.7×2 | |
| 2400×4500 | 48-72 | 7.5×2 |
