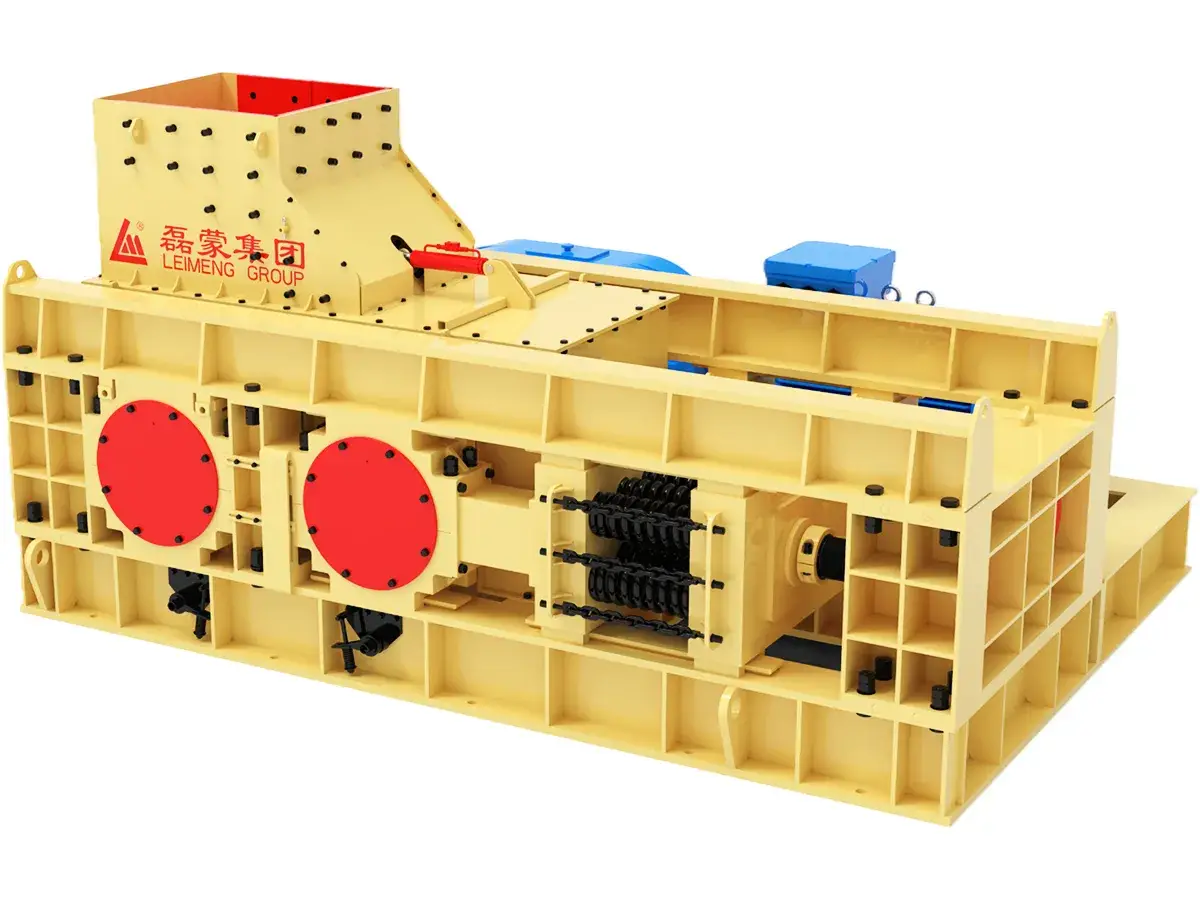

PG Series Sand Making Machine
(Double-Rolling Crusher)
This double-rolling crusher sand making machine is a high-energy, low-consumption machine developed based on years of experience in mining machinery manufacturing and the integration of advanced crushing technologies. It plays a significant role among fine crushing equipment for various ores. The machine features high reliability, easy operation, installation, and maintenance.
It is not only widely used for extremely hard materials, but also for fine and ultra-fine crushing in applications with large variations in material properties, such as manufactured sand production, cement pre-grinding, and refractory materials. Applicable materials include granite, basalt, limestone, quartz stone, gneiss, cement clinker, concrete aggregates, ceramic raw materials, iron ore, gold ore, copper ore, corundum, bauxite, silica, and more.
-
Multiple crushing modes (rock-on-rock, rock-on-metal) to meet different crushing requirements
-
Multiple optional components, with key parts using internationally recognized brands
-
Wide applicability to a broad range of materials
- Metal Ores
- Non-Metal Ores
| Model | Roller diameter (mm) |
Roller length (mm) |
Feeding size (mm) |
Output size (mm) |
Capacity (t/h) |
Power (kW) |
Dimensions (mm) (L×W×H) |
| |
900 | 600 | ≦40 | < 5 | 110-150 | 132-160 | 4000×3000×2000 |
| |
1200 | 600 | ≦40 | < 5 | 150-230 | 160-250 | 5000×2800×2550 |
| |
1200 | 1000 | ≦40 | < 5 | 220-300 | 250-315 | 5000×3600×2550 |
| |
1300 | 1000 | ≦40 | < 5 | 280-380 | 315-400 | 5070×3670×2560 |
| |
1500 | 1000 | ≦40 | < 5 | 200-400 | 315-450 | 5700×3600×3050 |
| |
1500 | 1500 | ≦40 | < 5 | 335-600 | 450-630 | 5700×4600×3050 |
