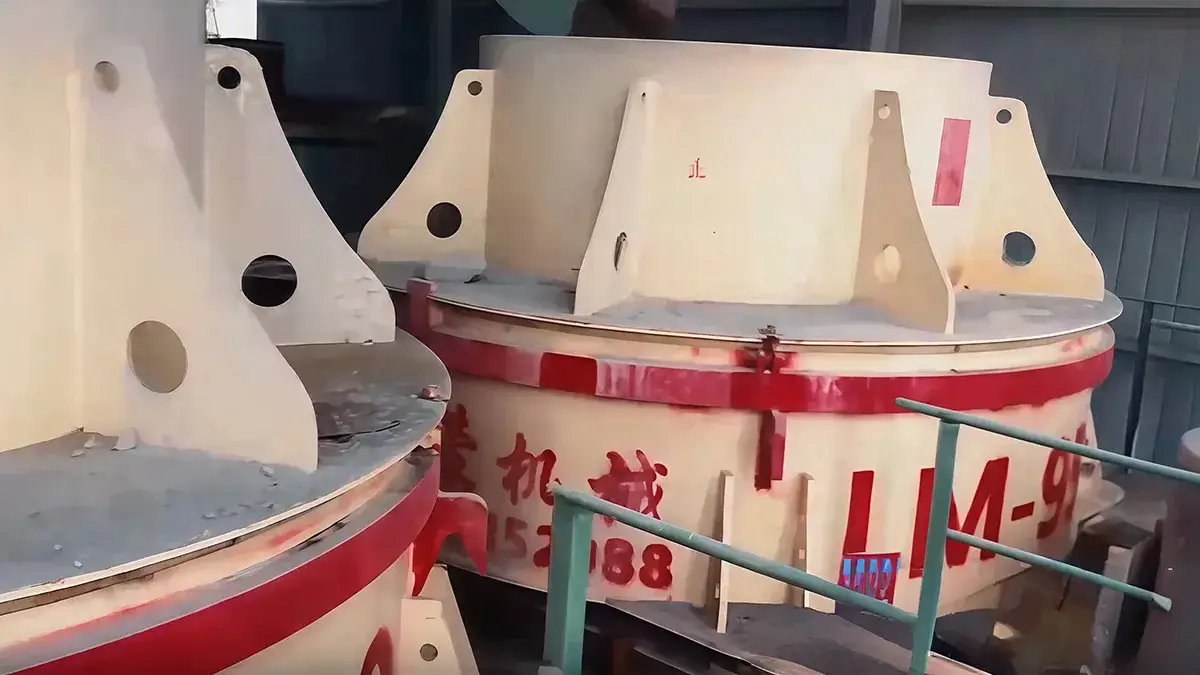

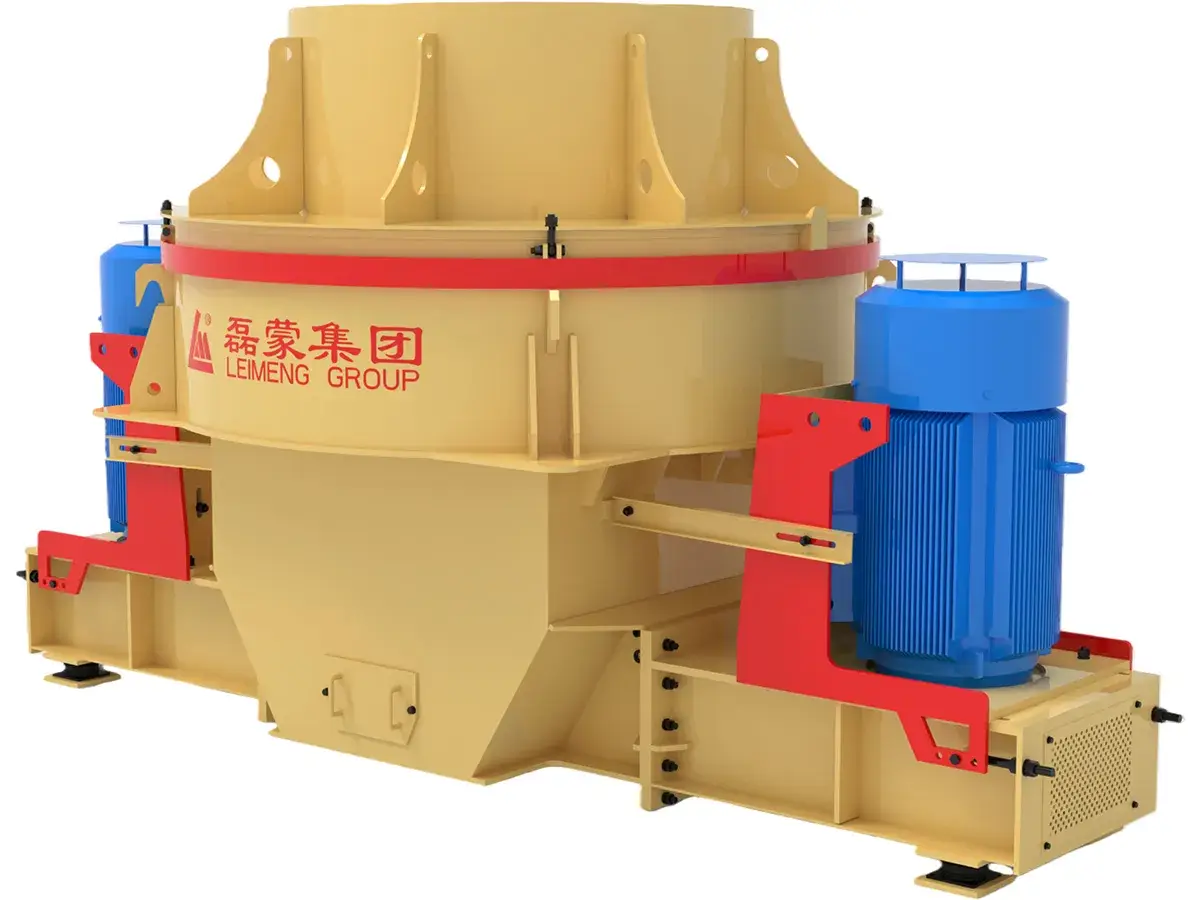

LM Series Sand Making Machine

(VSI Crusher, Capacity up to 720 tph)

Vertical shaft impact (VSI) crushers, also known as sand making machines, are widely used not only for extremely hard materials but also for fine and ultra-fine crushing in applications with large variations in material properties. Typical applications include manufactured sand production, cement pre-grinding, and refractory materials processing.

Applicable materials include granite, basalt, limestone, quartz stone, gneiss, cement clinker, concrete aggregates, ceramic raw materials, iron ore, gold ore, copper ore, corundum, bauxite, silica, and similar materials.

Request a Quote
Features

  • Multiple crushing modes (rock-on-rock, rock-on-metal) to meet different crushing requirements

  • Multiple optional components, with key parts using internationally recognized brands

  • Wide applicability to a broad range of materials

  • Energy-saving and environmentally friendly design, with no additional auxiliary devices required

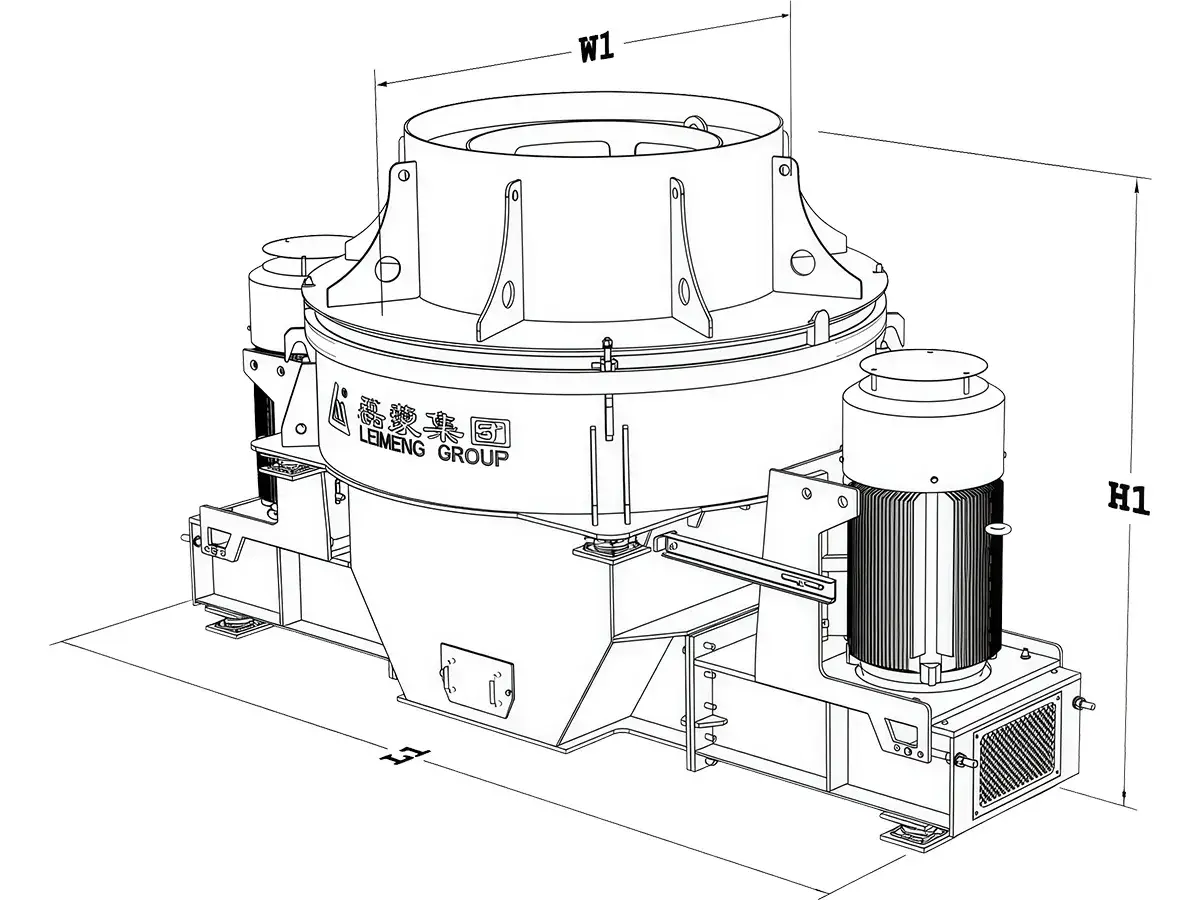

Dimensions
Model Length L1 (mm) Width W1 (mm) Height H1 (mm)
LM6000 2750 1970 2660
LM7000 3440 2180 2670
LM7500 4410 2180 2670
LM8000 4480 2540 2880
LM8500 4480 2540 2880
LM9000 4980 2540 2880
LM9500 4980 2540 2880
LM10000 4980 2540 2880
Dimensions
Technical Parameters
Model Max. feeding size (mm) Linear speed (m/s) Capacity (t/h) Power (kW) Installation dimensions (mm)
LM6000 40 60-89 53-240 160 3600×1970×3290
LM7000 40 60-89 80-430 250 3910×2180×3810
LM7500 40 60-89 100-450 132×2 5000×2180×3810
LM8000 40 60-89 188-520 160×2 5200×2540×3910
LM8500 40 60-89 230-550 200×2 5200×2540×3910
LM9000 40 60-89 275-600 250×2 5810×2540×3910
LM9500 40 60-89 290-650 280×2 5810×2540×3910
LM10000 40 60-89 320-720 315×2 5810×2540×3910
Projects

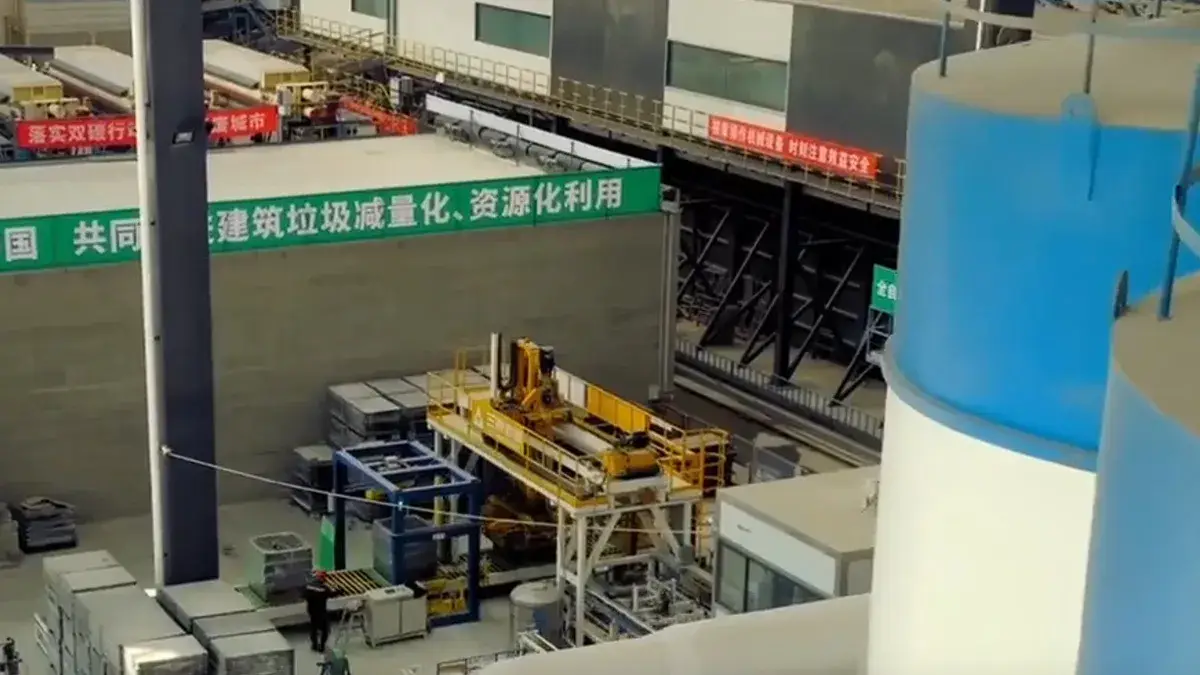

Construction Waste Recycling Project of Youxiang Company in SichuanConstruction Waste Recycling Project of Youxiang Company in Sichuan
Sand Making and Washing Project in Jiangmen, GuangdongSand Making and Washing Project in Jiangmen, Guangdong
Aggregate Production Line Project (1200-1500 tons per hour)Aggregate Production Line Project (1200-1500 tons per hour)
Aggregate Plant Project of Fenglin Mining Company in GuangxiAggregate Plant Project of Fenglin Mining Company in Guangxi
Aggregate Plant Project of Yangfeng Zhongwei in Jingmen, HubeiAggregate Plant Project of Yangfeng Zhongwei in Jingmen, Hubei
Aggregate Plant Project of Lida Company in Fangchenggang, GuangxiAggregate Plant Project of Lida Company in Fangchenggang, Guangxi
