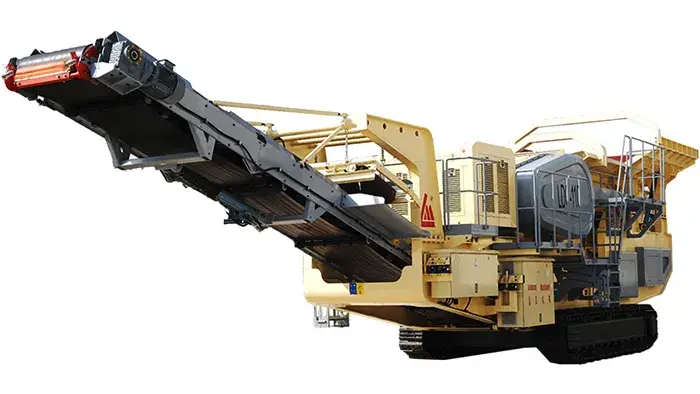

Stone Jaw Crusher Plant
(Crawler Mobile, Jaw Crusher)

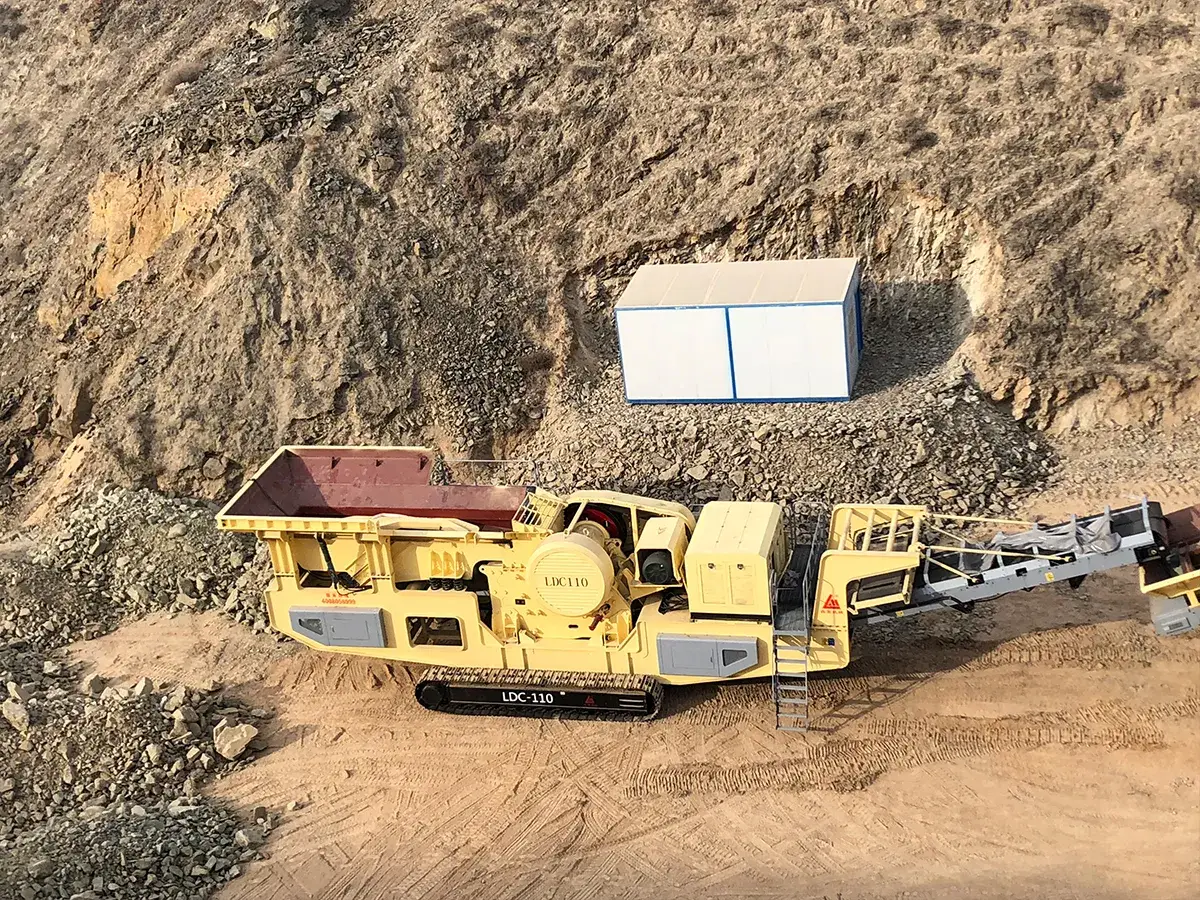

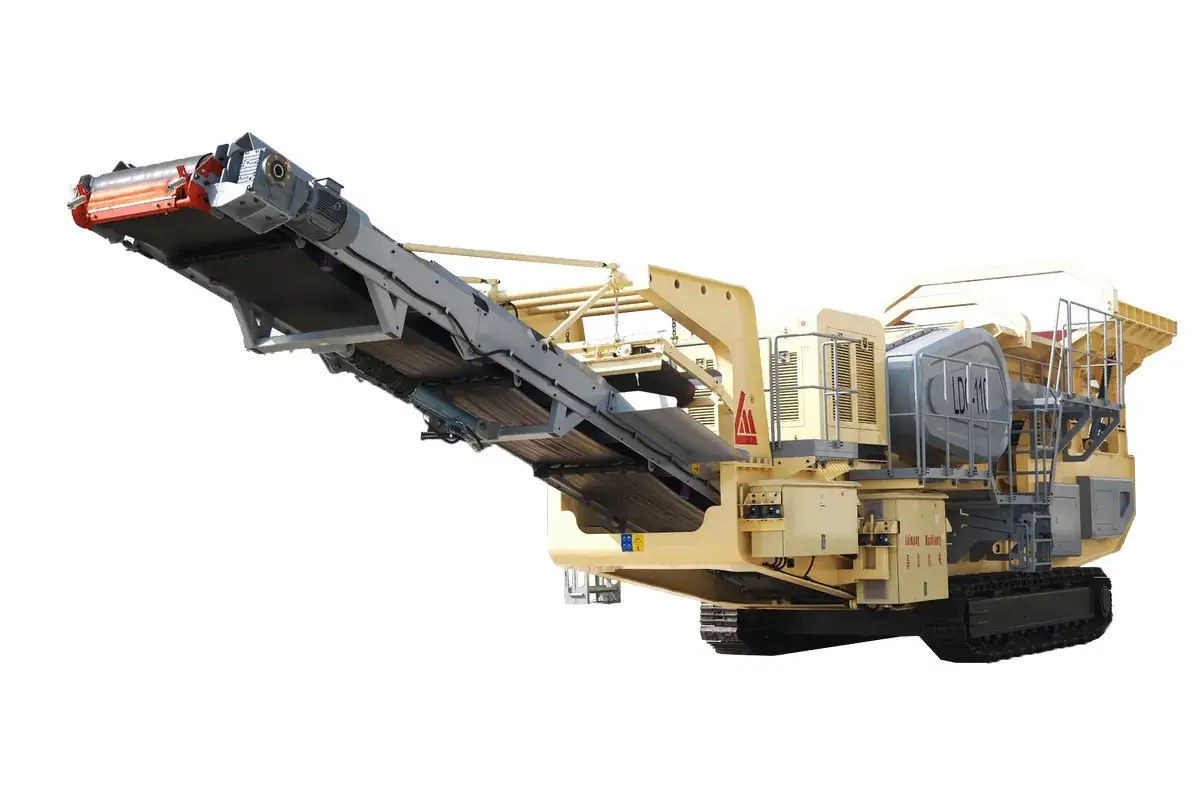

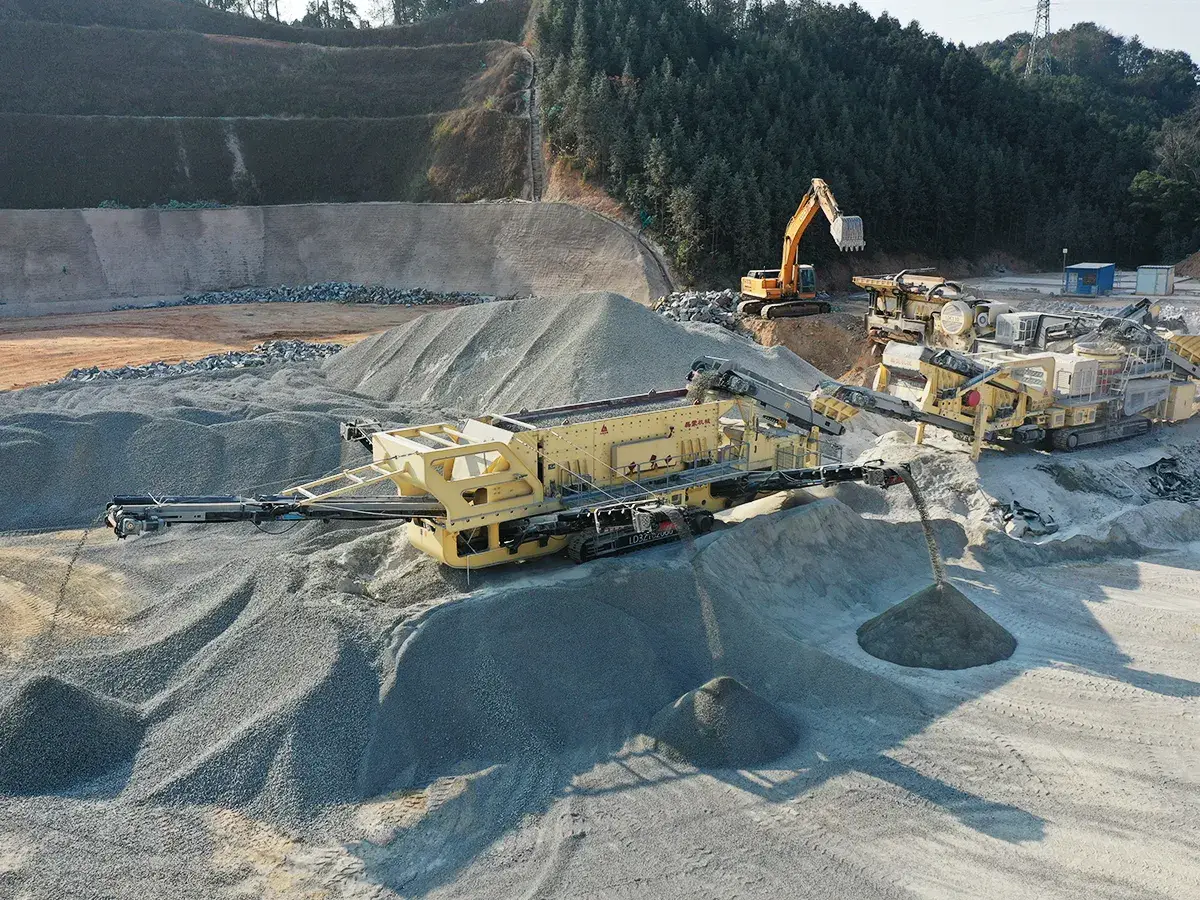

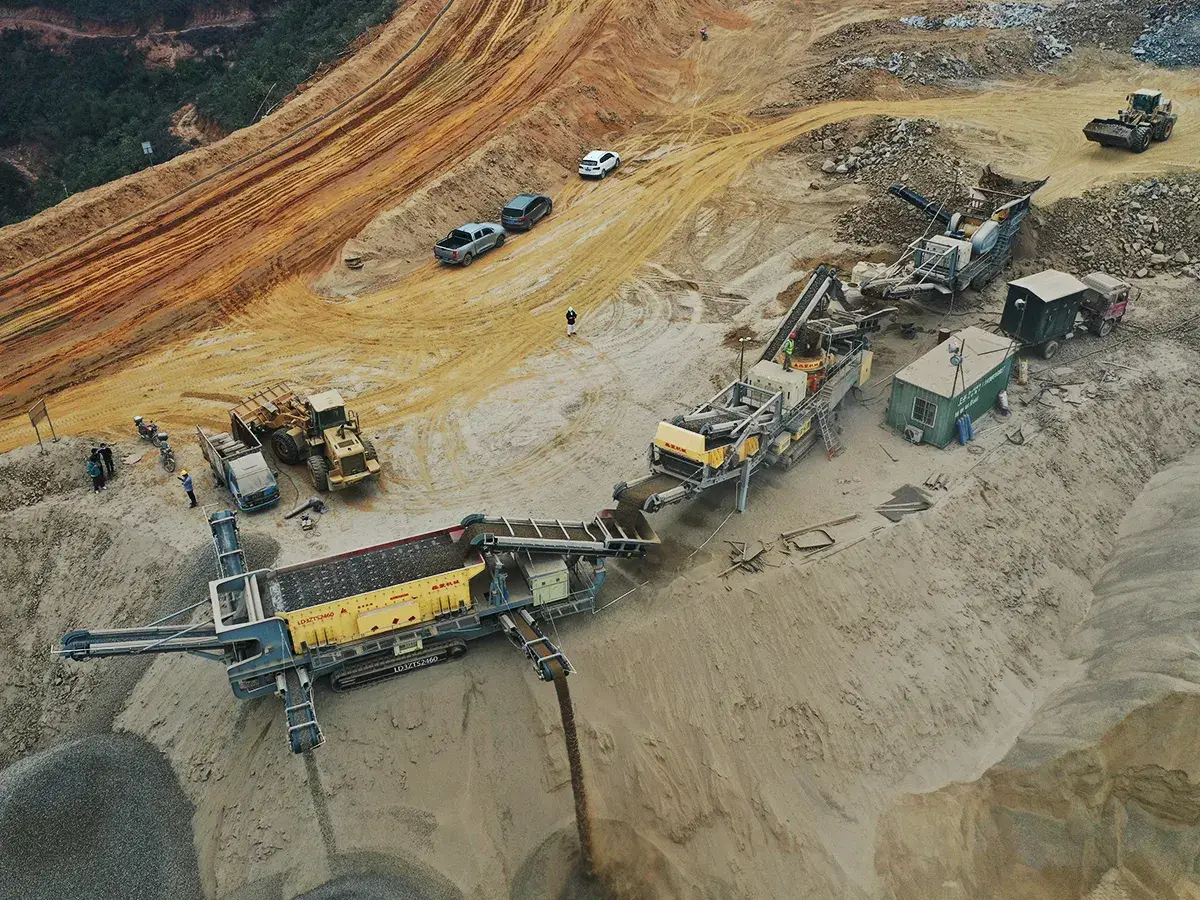

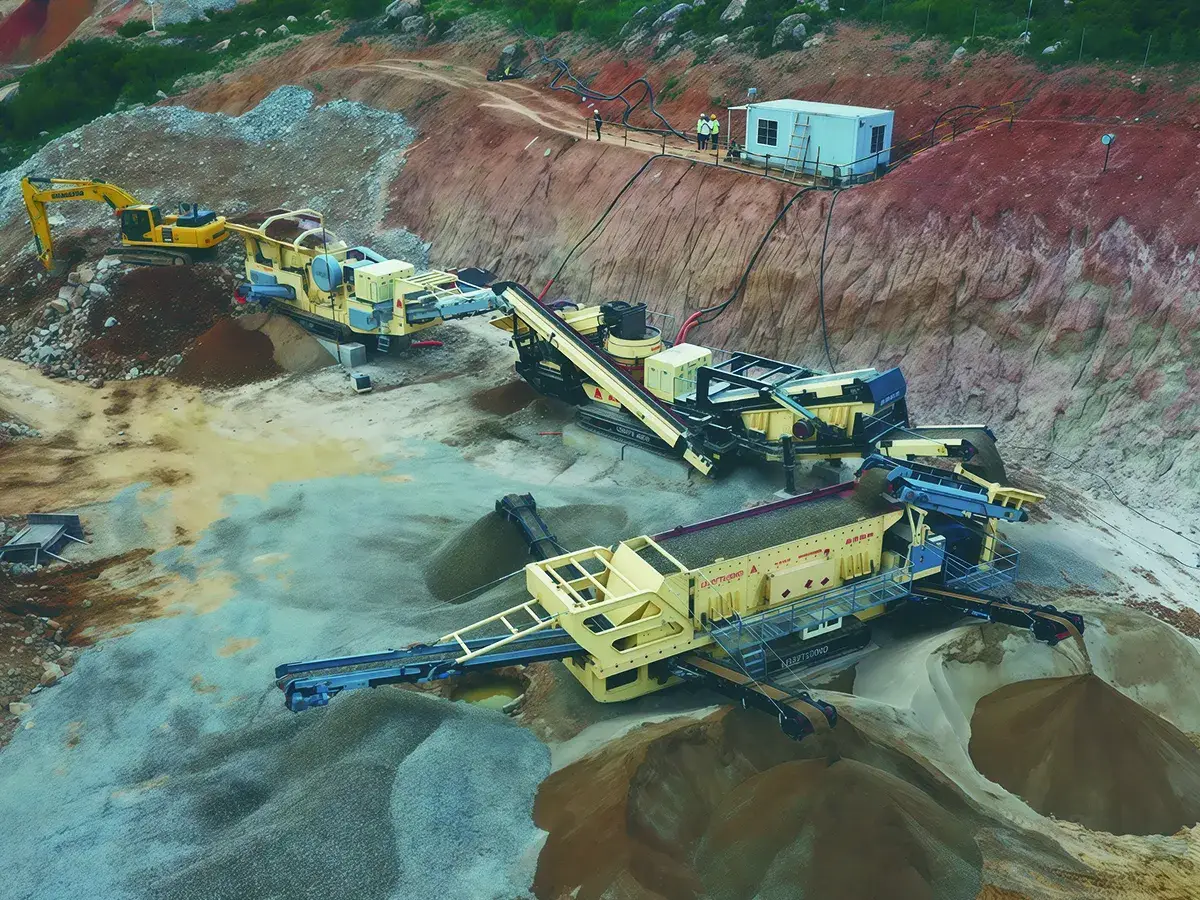

The track-mounted mobile jaw crusher plant is equipped with a European-style jaw crusher. This is a newly designed crusher optimized in terms of structure, material and craftsmanship. It features a unique structure, reliable operation, simple operation, high crushing ratio, and high output, making it the preferred equipment for crushing various hard and highly abrasive rocks and minerals. It is mainly used for hard rock crushing, aggregate production, in-pit crushing, as well as mining, waste recycling, cement production, and tunnel crushing.
- Dual-Power Versatility: Diesel & electric hybrid drive for maximum fuel efficiency and operational flexibility.
- Superior Mobility: Designed for rapid, hassle-free relocation between job sites.
- High Reduction Ratio: Optimized crushing chamber for maximum efficiency and high-quality output.
Applicable Materials
- Metal Ores
- Non-Metal Ores
Technical Specifications
| Model | ||||
| Feeder | Loading height (mm) | 4200 | 4200 | 4500 |
| Stockpile volume (m³) | 4 | 5 | 6 | |
| Jaw crusher | Max. feeding size (mm) | 400 | 650 | 750 |
| Max. output size (mm) | 180 | 240 | 270 | |
| Main belt conveyor | Discharge height (mm) | 3200 | 3600 | 3800 |
| Size (length×belt width) | 10m×B1000mm | 13m×B1000mm | 14m×B1000mm | |
| Side belt conveyor | Stockpile height (mm) | 1750 | 1750 | 1750 |
| Size (length×belt width) | 4.3m×B650mm | 4.3m×B650mm | 4.3m×B650mm | |
| Overall stone crusher plant | Crushing capacity (t/h) | 65-275 | 110-400 | 190-625 |
| Total power (kW) | 117 | 137 | 167 | |
